PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 680 × 1040 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	15 kg
Recommended user weight capacity	160 kg
Seat foam density	45 kg/m3
Back foam density	35 kg/m3
Foam resilience	40%
Upholstery abrasion resistance	50,000 Martindale cycles
Cantilever cyclic flex durability	100,000 cycles
Recommended occupancy	1 person
Suggested warranty	5 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Tan woven or coated fabric-style face over foam; exact leather, PU, or textile grade needs supplier BOM confirmation.
Back upholstery	Tan padded front face with a horizontal seam, visible as a soft upholstered surface requiring material confirmation.
Outer back shell	Black rigid polymer or composite back carrier with contoured side edges, inferred from the visible hard outer form.
Seat cushion core	80 mm polyurethane foam at a specified 45 kg/m3 density target, concealed beneath upholstery.
Back cushion core	60 mm polyurethane foam at a specified 35 kg/m3 density target, concealed beneath upholstery.
Arm pads	Tan upholstered pads matching seat and back color, mounted on black rigid arm supports.
Arm supports	Black molded polymer or painted steel side supports forming a continuous loop around each arm.
Cantilever frame	Polished chrome-plated tubular steel sled base with twin continuous runners.
Frame tube specification	25 x 2.0 mm round steel tube with chrome finish; engineering target for medium-duty visitor chairs.
Floor glides	Black non-marking polymer contact glides at all runner ends, visible as dark floor-contact tips.
Under-seat plate	Steel mounting plate connecting the seat shell to the cantilever frame, concealed but required by the structure.
Seam construction	Single horizontal back seam with 8 stitches per 100 mm target for consistent contract upholstery.

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed seating height	450 mm fixed seat height with no gas lift, providing stable meeting-room and visitor seating.
Cantilever flex	Continuous chrome sled allows controlled flex under load; use is limited to forward-facing seating.
Swivel function	No swivel function; the seat is fixed to the non-rotating sled base.
Recline function	No tilt mechanism; the tall back provides static upright support.
Arm support	Padded loop arms provide forearm support and side impact protection at 680 mm above floor.
Floor protection	Four polymer glides slide on hard floors and reduce direct metal contact.
Stacking capability	Non-stacking design based on the broad continuous sled and enclosed arm structure.
Entry access	Open front sled geometry permits side and front entry without a caster base obstruction.
Maintenance access	Upholstery should be spot-cleanable; removable cover or zipper is not visible and must not be assumed.
Color configuration	One visible tan-and-black colorway; program color count should be confirmed before bulk ordering.
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	700 x 620 x 420 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room	Fixed-height padded chair suited to boardroom tables where quiet movement and consistent appearance are required.
Executive reception	Tan upholstery and chrome sled provide a formal visitor seat beside desks or in reception groupings.
Visitor workstation	Suitable for guest seating beside a workstation at a standard 750 mm desk height.
Meeting or training suite	Non-caster base keeps the chair positioned for scheduled meetings and supervised training spaces.
Hard-floor office areas	Polymer glides are suitable for tile, wood, vinyl, and low-pile protected floor surfaces.
Procurement configuration	Order in sets of 4, 6, or 8 around conference tables, with floor protectors specified for sensitive floors.
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139 contract seating	Recommended durability, safety, and load standard for non-domestic conference and visitor seating.
EN 1022 seating stability	Recommended stability test basis for the armless floor footprint and cantilever balance.
EN 12520 seating safety strength	Recommended structural safety and fatigue-performance reference for contract procurement.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4 lounge and conference seating	Recommended North American acceptance basis for static load, back, arm, and leg performance.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.2 furniture mechanical test	Recommended test basis for chair stability and rear/side tipping acceptance of the fixed cantilever base.
GB/T 10357.3 furniture strength-durability	Recommended strength and repeated-load acceptance basis for seat, back, arms, and frame.
GB 18587 indoor upholstery emissions	Recommended indoor-air emission acceptance item when supplied to Chinese commercial projects.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.2 furniture mechanical test: Recommended test basis for chair stability and rear/side tipping acceptance of the fixed cantilever base.;
2. GB/T 10357.3 furniture strength-durability: Recommended strength and repeated-load acceptance basis for seat, back, arms, and frame.;
3. GB 18587 indoor upholstery emissions: Recommended indoor-air emission acceptance item when supplied to Chinese commercial projects.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CNF-SLED-TAN-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CNF-SLED-TAN-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CNF-SLED-TAN-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

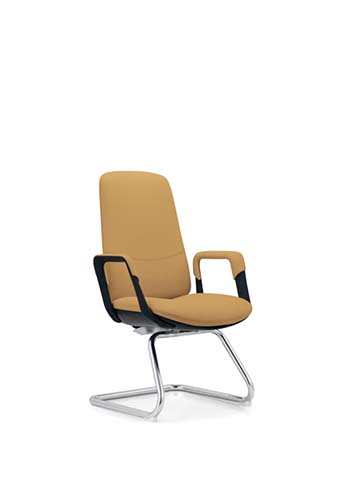

The CNF-SLED-TAN-01 is an unbranded cushioned cantilever conference chair designed for formal meeting, reception, and visitor settings. Its visual character combines tan upholstered seating, a black rigid outer back shell and arm structure, and a polished chrome-plated steel sled base, giving it a clean, structured appearance suited to consistent room layouts. The tall padded back includes a horizontal seam and contoured side edges, while tan arm pads sit within continuous black loop supports. Overall dimensions are 620 by 680 by 1040 mm, with a fixed 450 mm seat height, a 540 mm clear width between armrests, and a 240 mm lumbar support zone. The finished seat cushion is 90 mm thick and the backrest padding is 70 mm thick, providing a soft upholstered surface over concealed polyurethane foam cores. The seat uses an 80 mm core with a 45 kg/m3 density target, and the back uses a 60 mm core with a 35 kg/m3 target. Foam resilience is rated at 40 percent, and the tan woven or coated fabric-style face is rated for 50,000 Martindale abrasion cycles. Exact leather, polyurethane, or textile grade should be confirmed through the supplier bill of materials. The frame is a polished chrome-plated tubular steel cantilever with twin continuous runners, made from 25 by 2.0 mm round steel tube as a medium-duty visitor chair specification. The fixed frame offers controlled flex under load, with cyclic flex durability rated at 100,000 cycles. It does not swivel, tilt, recline, or include a gas lift, maintaining static upright support and a stable forward-facing posture. Padded loop arms provide forearm support and side impact protection, and four polymer glides reduce direct metal contact on hard floors. The chair is non-stacking due to its broad sled and enclosed arm structure. It is appropriate for boardrooms, executive reception areas, guest positions beside standard 750 mm workstations, scheduled meeting rooms, and supervised training suites. Hard-floor use covers tile, wood, vinyl, and protected low-pile surfaces; additional floor protectors should be specified for sensitive floors. Procurement teams can plan layouts in sets of 4, 6, or 8 around conference tables. The recommended user weight capacity is 160 kg, net weight is 15 kg, and packaged reference gross weight is 23 kg per set. Packaging is listed as one set across two cartons, with a reference carton volume of 0.26 cubic meters and assembly time of 40 minutes per set. Material confirmation, floor-protection requirements, and delivery configuration should be reviewed before ordering.

Cushioned Cantilever Conference Chair with Padded Arms Specifications
