PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	640 × 560 × 1015 mm
Seat width	500 mm
Seat depth	440 mm
Seat height from floor	450 mm
Backrest height	580 mm
Armrest height above seat	190 mm
Backrest upper width	505 mm
Seat cushion thickness	50 mm
Armrest top height from floor	645 mm
Sled base footprint width	505 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	8 kg
Recommended static weight capacity	90 kg
Seat foam density	45 kg/m³
Seat foam rebound rate	55%
Mesh fabric abrasion resistance	50000 cycles
Frame static load rating	1000 kg
Anti-slip foot pad friction coefficient	0.6
Recommended continuous sitting duration	4 hours
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Breathable black polyester mesh
Seat cushion fill	High-density polyurethane foam
Seat upholstery	Tear-resistant black fabric upholstery
Armrests	Injection-molded black PP (polypropylene) fixed armrests
Frame/sled base	1.5mm thick powder-coated cold-rolled steel tube
Foot pads	Non-slip TPE rubber foot pads
Internal seat support	12mm thick bent plywood seat pan
Seam stitching	High-strength polyester thread with 8mm seam pitch
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Core use function	Stationary fixed seating for office meeting and visitor spaces
Lumbar support	Contoured mesh back with integrated dual-zone lumbar support
Movement restriction	Non-swivel, non-reclining, non-height-adjustable fixed structure
Arm support	Fixed-position armrests with 190mm clearance above seat
Floor protection	Rubber anti-slip foot pads prevent scratches and unwanted sliding
Breathability	Open mesh backrest allows constant air circulation for reduced heat buildup
Stability design	Continuous sled frame distributes weight evenly across floor contact points
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office conference rooms	Suitable for formal meeting room seating with uniform, stable fixed design
Reception and visitor areas	Professional appearance provides comfortable short-term seating for guests
Training room environments	Stackable-compatible sled design allows flexible arrangement and storage for training sessions
Open office guest seating	Compact footprint fits alongside standard 750mm height office desks for side seating
Home office study use	Non-adjustable design offers fixed supportive seating for routine home office tasks
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-2:2018	Office furniture: office chairs safety requirements
EN 1022:2018	Domestic and contract seating determination of stability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.1 General-Purpose Office Chairs

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture components
GB/T 3325-2017	General technical requirements for metal furniture
GB 18584-2001	Indoor decorating and refurbishing materials limit of harmful substances
GB/T 10357.3-2013	Test of mechanical properties for seating furniture strength and durability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture components;
2. GB/T 3325-2017: General technical requirements for metal furniture;
3. GB 18584-2001: Indoor decorating and refurbishing materials limit of harmful substances;
4. GB/T 10357.3-2013: Test of mechanical properties for seating furniture strength and durability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MS-CANT-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MS-CANT-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MS-CANT-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

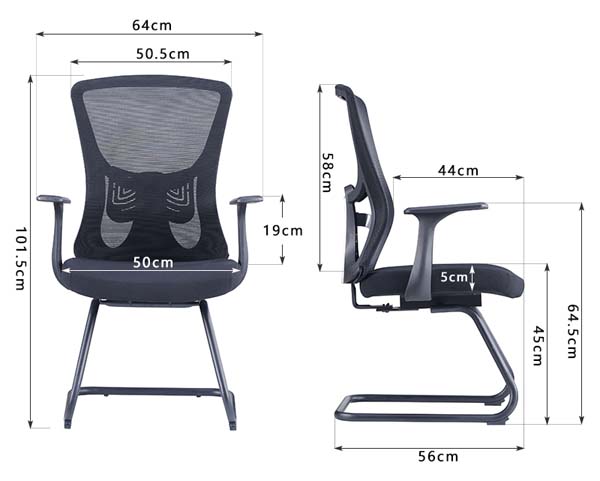

The Mesh Back Cantilever Sled Base Office Visitor Conference Chair (model MS-CANT-001, unbranded) delivers streamlined, professional fixed seating for a range of formal and semi-formal work and study settings. Presenting a clean, uniform silhouette tailored to cohesive space layouts, the chair measures 640 x 560 x 1015 mm overall, with a 500 mm wide, 440 mm deep seat positioned 450 mm above floor level, a 580 mm tall contoured mesh backrest, and fixed armrests set 190 mm above the seat surface for relaxed arm placement during extended meetings or visits.
Built for consistent long-term use, the chair pairs a black breathable polyester mesh backrest with a 50 mm thick seat cushion filled with 45 kg/m³ high-density polyurethane foam, upholstered in tear-resistant black fabric and supported by a 14 mm thick bent plywood internal seat pan. Fixed injection-molded black polypropylene armrests attach to a 1.5 mm thick powder-coated cold-rolled steel tube continuous sled frame, fitted with non-slip TPE rubber foot pads. All seams are stitched with high-strength polyester thread at an 8 mm seam pitch, with the mesh fabric rated for 50000 abrasion cycles, the frame holding a 1000 kg static load rating, and the chair supporting a 90 kg recommended static weight capacity with 8 kg net product weight.
Functional design prioritizes comfort and practicality: the open mesh backrest enables constant air circulation to reduce heat buildup, with integrated dual-zone lumbar support built into the contoured back shape. The non-swivel, non-reclining, non-height-adjustable fixed structure delivers stable, consistent positioning, while the continuous sled frame distributes weight evenly across floor contact points, and rubber foot pads prevent floor scratches and unwanted sliding. The stackable-compatible sled base supports flexible arrangement and compact storage.
This chair is well suited for formal office conference rooms, professional reception and visitor areas, training room environments, open office guest seating aligned with standard 750 mm height office desks, and home office study spaces, pairing seamlessly with 2.4 m executive desks for coordinated setups. For procurement planning, note that each set ships across 2 cartons with a 23 kg packaged gross weight and 0.26 m³ total volume, requiring 40 minutes of assembly per unit; 135 sets fit in a 20GP container at 85% space utilization.

Mesh Back Cantilever Sled Base Office Visitor Conference Chair Specifications
