PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	600 × 650 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	16 kg
Recommended user weight capacity	160 kg
Cantilever static load verification target	450 kg for 1 hour
Backrest backward static force target	136 kg for 1 hour
Arm downward static force target	91 kg per arm for 1 hour
Recommended user height range	190 cm
Seating capacity	1 person
Durability cycle target for sled frame	120,000 seating cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Brown smooth leather-look upholstery with edge stitching
Backrest upholstery	Brown smooth upholstered pad with one horizontal seam
Seat cushion foam	42 kg/m3 high-resilience polyurethane foam, 80 mm thick
Back cushion foam	35 kg/m3 molded polyurethane foam, 60 mm thick
Internal seat board	12 mm molded plywood or engineered wood seat support
Back support board	10 mm curved engineered wood or plywood carrier
Arm pads	Brown upholstered pads over 15 mm foam and rigid board
Arm support frames	Black matte-finish steel or die-cast supports, 30 mm wide
Cantilever base	Polished chrome-plated steel tube, 25 mm diameter and 1.5 mm wall thickness
Floor glides	Injection-molded polymer glides with felt contact option, 4 pieces
Joining hardware	M8 steel bolts with lock washers at arm and base connections
Surface finish	Chrome plating on steel frame with black powder-coated or painted arm supports

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed cantilever seating	Non-swivel sled-base design provides gentle controlled flex without casters
Fixed arm support	Rigid black side arms support forearms and reinforce the seat-back connection
Upright meeting posture	10-degree fixed back angle supports short-to-medium conference seating duration
Floor-friendly movement	Four polymer glides allow careful repositioning while reducing floor scratching
Stacking capability	Non-stacking single-frame chair with full-width cantilever runners
Rotation and lift	Fixed-position seat with 0-degree swivel and no gas cylinder
Recline mechanism	No tilt mechanism; backrest provides fixed static support
Cleaning access	Smooth upholstered surfaces and open sled base permit wiping and under-chair cleaning
Backrest recline angle	10 degrees from vertical
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive conference room	Formal fixed guest seating pairs with boardroom tables and supports meetings lasting 3 hours
Manager meeting area	Suitable for visitors facing a desk without rolling or swiveling near guests
Reception consultation space	Appropriate for one-on-one guest seating in reception or advisory rooms
Private office guest side	Can be placed in pairs in front of an executive desk with 460 mm seat height
Hotel meeting lounge	Suits business lounges where a quiet non-swivel chair and easy floor placement are preferred
Recommended table clearance	Use with tables 750 mm high to provide 290 mm thigh clearance
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139 applicability	Recommended durability, safety, and static-load standard for non-domestic seating
EN 1022 applicability	Recommended stability test reference for upright non-adjustable seating
EN 12521 applicability	Recommended safety, strength, and durability reference for non-domestic furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 General Purpose applicability	Recommended back, seat, arm, and leg structural acceptance tests for office visitors

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.2 applicability	Recommended test standard for chair seat and back static load acceptance
GB/T 10357.3 applicability	Recommended test standard for chair strength and durability cycling

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.2 applicability: Recommended test standard for chair seat and back static load acceptance;
2. GB/T 10357.3 applicability: Recommended test standard for chair strength and durability cycling;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXEC-CANT-BRN-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXEC-CANT-BRN-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXEC-CANT-BRN-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

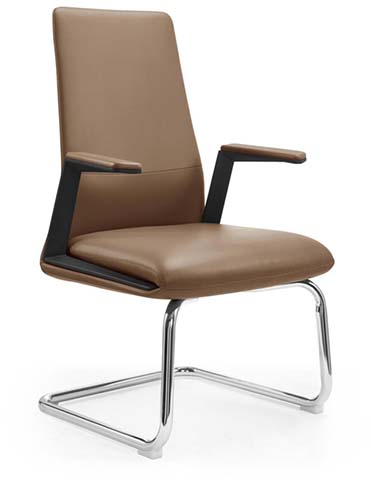

The Brown Leather Executive Visitor Chair combines a formal executive silhouette with the stable, streamlined profile of a cantilever sled base. Its warm brown smooth upholstery gives the chair a refined guest-facing appearance, while the polished chrome frame adds a crisp contrast against black matte arm supports. The mid-height backrest features one horizontal seam, and the seat is finished with neat edge stitching for a structured, tailored look. Fixed armrests frame the seating area, and the continuous cantilever runners create a clean visual line suited to professional interiors. Dimensions are 600 mm wide, 650 mm deep, and 1010 mm high, with 540 mm of clear width between the armrests. The model is unbranded and identified as EXEC-CANT-BRN-01. Construction centers on padded foam support over wood-based carriers. The seat uses 42 kg/m³ high-resilience polyurethane foam with an 80 mm foam layer and a 90 mm finished cushion thickness, supported by a 12 mm molded plywood or engineered wood board. The backrest uses 35 kg/m³ molded polyurethane foam with a 60 mm foam layer and 70 mm padding thickness, shaped over a 10 mm curved engineered wood or plywood carrier. A 240 mm lumbar support zone helps define the back’s upright form. Arm pads are upholstered in the same brown material over 15 mm foam and a rigid board, with 30 mm wide black matte steel or die-cast support frames. The base is a polished chrome-plated steel tube measuring 25 mm in diameter with 1.5 mm wall thickness. Functionally, this is a fixed-position, non-swivel visitor chair without casters, tilt action, recline mechanism, or gas lift. The 10-degree fixed back angle supports an upright meeting posture for short-to-medium conference seating, and the cantilever frame provides gentle controlled flex. Rigid side arms support the forearms and reinforce the seat-to-back connection. Four polymer glides allow careful repositioning while reducing the risk of floor scratching. The chair is designed for one occupant, carries a recommended user weight capacity of 160 kg, and accommodates users up to 190 cm in height. The chair is appropriate for executive conference rooms, manager meeting areas, reception and consultation rooms, private office guest positions, and hotel business lounges. Its stationary behavior makes it particularly suitable where seating should not roll or swivel near desks, guests, or boardroom tables. For coordinated table planning, it is intended for use with 750 mm high tables, providing 290 mm thigh clearance; the seat height is 460 mm. Pairs can be placed facing an executive desk or arranged in formal meeting layouts. Procurement teams should note that each set ships in two cartons, with packaged gross weight of 23 kg and a reference assembly time of 40 minutes. The chair is non-stacking, so storage and layout planning should allow for individual chair placement rather than nested storage. Its brown leather-look finish should be selected as an aesthetic and maintenance material rather than assumed to be genuine leather.

Brown Leather Executive Visitor Chair with Cantilever Base Specifications
