Automatic mm / inch conversion · Core engineering specifications

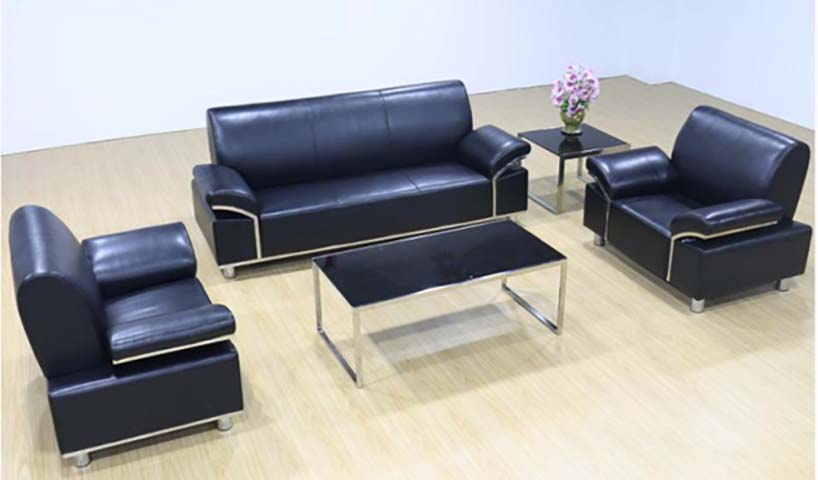

| 3-seater sofa overall dimensions | 2100 x 850 x 880 mm | |
|---|---|---|
| Single armchair overall dimensions | 900 x 800 x 880 mm | |
| Seat height from floor | 420 mm | |
| Seat depth | 550 mm | |
| Backrest height above seat | 460 mm | |
| Armrest height above seat | 200 mm | |
| Coffee table overall dimensions | 1200 x 600 x 450 mm | |
| Side end table overall dimensions | 600 x 600 x 500 mm | |
| Stainless steel support leg diameter | 50 mm | |
| Tempered glass tabletop thickness | 10 mm | |
| Sofa base trim height | 30 mm | |
| Arm trim width | 20 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| 3-seater sofa net weight | 95 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Total set seating capacity | 5 people | |
| Foam density for seat cushions | 40 kg/m³ | |
| Foam rebound rate | 45% | |
| Upholstery abrasion resistance | 50000 Martindale cycles | |
| Seam stitch pitch | 3 mm | |
| Seat foam density | 40 kg/m³ | |
| Seat foam rebound rate | 45% | |
| Structural durability cycle rating | 100000 seat load cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat and back upholstery | Black smooth polyurethane (PU) faux leather | |
|---|---|---|
| Seat cushion core | High-density polyurethane foam over engineered wood seat base | |
| Backrest core | Medium-density polyurethane foam over curved engineered wood frame | |
| Armrest padding | Dense polyurethane foam top with matching faux leather covering | |
| Seating support frame | 15 mm thick engineered wood internal frame | |
| Metal trim and legs | Polished 201 stainless steel | |
| Table framing | Square-section polished stainless steel tubular frame | |
| Table tops | 10mm thick black tempered glass with polished edge | |
| Table foot pads | Non-slip rubber floor protectors fitted to base of all metal legs | |
| Upholstery stitching | High-tensile polyester thread matching black upholstery color | |
| Seating internal frame | 15mm thick moisture-resistant engineered wood frame, 8% moisture content limit | |
| Seating support system | 4mm diameter sinuous steel springs spaced 100mm apart over 50mm elastic webbing |
Adjustment / rotation / tilt / mobility / storage features
| Seating support | Fixed upright back angle of 105 degrees | |
|---|---|---|
| Floor protection | Cylindrical stainless steel legs with integrated rubber glides distribute seating weight evenly and prevent scuffing on wood, tile or carpeted office flooring | |
| Table surface function | Smooth non-porous black tempered glass tops resist liquid staining and allow quick wipe cleaning between meetings | |
| Stainless steel frame structure | Cantilevered open-base table design eliminates cross-braces at floor level to allow easy foot placement and cleaning access under tables | |
| Set configuration | Coordinated matching profile across sofa, armchairs and tables creates uniform formal appearance for executive reception spaces | |
| Armrest support | Padded curved armrests provide consistent elbow support for seated users during extended conversations, with metal edge trim to prevent upholstery wear at contact points | |
| Upholstery performance | Smooth non-porous faux leather surface resists common office spills from coffee, water and ink for low-maintenance daily operation | |
| Seating support geometry | Fixed upright back angle of 105 degrees | |
| Floor protection system | Cylindrical stainless steel legs with integrated 5mm rubber glides distribute seating weight evenly and prevent scuffing on wood, tile or carpeted office flooring | |
| Table surface performance | Smooth non-porous black tempered glass tops resist liquid staining from coffee, water and ink, allowing full wipe cleaning in 30 seconds between meetings | |
| Table frame design | Cantilevered open-base table design eliminates cross-braces at floor level to provide 400mm clear foot space under tables for easy foot placement and cleaning access | |
| Set visual coordination | Coordinated matching profile across sofa, armchairs and tables creates uniform formal appearance, with identical arm trim, leg design and upholstery finish across all seating units |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages per complete set | 6 packages | |
|---|---|---|
| Reference carton dimensions for 3-seater sofa | 2150 x 900 x 650 mm | |
| Reference carton dimensions for single armchair | 950 x 850 x 650 mm | |
| Reference carton dimensions for coffee table | 1250 x 650 x 120 mm | |
| Reference carton dimensions for side table | 650 x 650 x 120 mm | |
| Total set gross shipping weight | 220 kg | |
| Total shipping volume per set | 2.2 CBM | |
| On-site assembly time for 2 workers | 60 minutes | |
| 40ft HQ container loading quantity | 58 sets | |
| Standard commercial warranty | 3 years |
Recommended spaces / users / usage modes
| Executive reception areas | Formal uniform appearance for corporate lobbies, executive floor reception zones to accommodate visiting guests and meeting participants | |
|---|---|---|
| Meeting and waiting rooms | Medium-firm upright seating suitable for 45 minute waiting periods and informal discussion sessions in office environments | |
| Government and institutional office spaces | Conservative black and stainless steel finish aligns with formal public sector workspace design requirements | |
| Small office conference breakout spaces | 5-person seating capacity fits small breakout zones for quick team discussions or guest meetings | |
| Recommended matching layout | Position 3-seater sofa against a wall, place two single armchairs facing at 45-degree angles, center coffee table between seats with side table adjacent to the gap between sofa and one armchair for refreshments | |
| Floor compatibility | Suitable for installation on wood laminate, tile, low-pile carpet and commercial vinyl office flooring without additional floor protection due to integrated rubber foot pads | |
| Executive reception lobbies | Formal uniform black and stainless steel appearance for corporate lobbies and executive floor reception zones to accommodate visiting guests, with easy-clean surfaces for high-traffic use | |
| Office waiting and meeting rooms | Medium-firm upright seating suitable for 45 minute waiting periods and informal discussion sessions in corporate office environments |
EU Market Access Requirements* EN Standards
| Applicable office furniture safety standard | EN 1335:2020 Office furniture - Office work chairs - Part 1: Dimensions - safety requirements | |
|---|---|---|
| Applicable upholstered furniture durability standard | EN 16139:2013 Furniture - Strength, durability and safety - Requirements for non-domestic seating | |
| Applicable furniture surface safety standard | EN 12521:2015 Furniture - Strength, durability and safety - Requirements for domestic tables | |
| Non-domestic seating safety standard | EN 16139:2013 Furniture - Strength, durability and safety - Requirements for non-domestic seating | |
| Domestic table performance standard | EN 12521:2015 Furniture - Strength, durability and safety - Requirements for domestic tables | |
| Furniture surface emission standard | EN 16516:2017 Construction products - Assessment of release of dangerous substances - Determination of emissions into indoor air |
US and Canada office-furniture standards
| Applicable lounge seating performance standard | ANSI/BIFMA X2021Lounge Seating - Tests | |
|---|---|---|
| Applicable occasional table performance standard | ANSI/BIFMA X2021Desk Products and Occasional Tables - Tests | |
| Lounge seating performance standard | ANSI/BIFMA X2022Lounge Seating - Tests | |
| Occasional table performance standard | ANSI/BIFMA X2021Occasional Tables - Tests |
Standards applicable to China-market projects
| Applicable upholstered furniture safety standard | GB/T 3324General technical requirements for wooden furniture | |
|---|---|---|
| Applicable glass furniture safety standard | GB/T 3280Cold rolled stainless steel plate and strip; GB 15763.2Safety glazing materials in building - Part 2: Tempered glass | |
| Applicable furniture environmental standard | GB 18584Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | |
| Wood furniture general standard | GB/T 3324General technical requirements for wooden furniture | |
| Glass safety standard | GB 15763.2Safety glazing materials in building - Part 2: Tempered glass | |
| Stainless steel material standard | GB/T 3280Cold rolled stainless steel plate and strip |
This product must meet the following technical requirements: 1. Applicable upholstered furniture safety standard: GB/T 3324General technical requirements for wooden furniture; 2. Applicable glass furniture safety standard: GB/T 3280Cold rolled stainless steel plate and strip; GB 15763.2Safety glazing materials in building - Part 2: Tempered glass; 3. Applicable furniture environmental standard: GB 18584Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture; 4. Wood furniture general standard: GB/T 3324General technical requirements for wooden furniture; 5. Glass safety standard: GB 15763.2Safety glazing materials in building - Part 2: Tempered glass; 6. Stainless steel material standard: GB/T 3280Cold rolled stainless steel plate and strip; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
