Automatic mm / inch conversion · Core engineering specifications

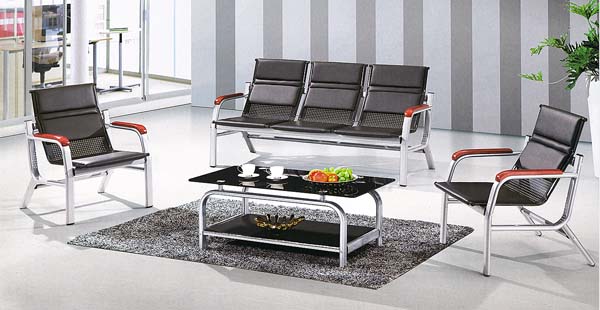

| Overall set footprint (3-seater across, side chairs flanking table) | 3200 x 2200 x 850 mm | |
|---|---|---|
| 3-seater sofa dimensions | 1800 x 700 x 850 mm | |
| Single armchair dimensions | 680 x 680 x 850 mm | |
| Coffee table dimensions | 1200 x 600 x 450 mm | |
| Seat height from floor | 450 mm | |
| Seat depth per position | 480 mm | |
| Backrest height above seat | 400 mm | |
| Armrest height above seat | 200 mm | |
| Frame tube diameter | 32 mm | |
| Lower coffee table shelf clearance | 250 mm | |
| Seat width per single position | 560 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| 3-seater sofa total static load capacity | 450 kg | |
|---|---|---|
| Total set net weight (all pieces) | 85 kg | |
| Recommended maximum concurrent users | 5 | |
| Frame surface abrasion resistance | 50000 rub cycles | |
| Mesh fabric tensile strength | 1200 N | |
| Product warranty period (commercial use) | 3 years | |
| Maximum recommended concurrent users | 5 | |
| Frame chrome finish abrasion resistance | 50000 rub cycles | |
| Commercial use warranty period | 3 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery
| Structural frame | 1.2mm thick chrome-plated cold-rolled steel tube | |
|---|---|---|
| Seat support panel | Perforated steel sheet under mesh layer | |
| Backrest/seat upholstery | Black breathable PVC-coated polyester mesh | |
| Armrest top pads | Curved solid wood-grain finished arm caps with reddish-brown finish | |
| Coffee table top | 8mm thick black tempered safety glass | |
| Coffee table frame | Polished chrome-plated bent steel tube matching chair frame finish | |
| Coffee table lower shelf | Black matte laminated particleboard shelf | |
| Frame foot pads | Non-slip rubber floor protection pads | |
| Structural seating frame | 1.2 mm thick polished chrome-plated cold-rolled steel tube | |
| Backrest and seat upholstery | Black breathable PVC-coated polyester mesh | |
| Frame contact points | Non-slip natural rubber floor protection pads | |
| Frame welding points | Full-penetration polished welds at all tube joints |
Adjustment / rotation / tilt / mobility / storage features
| Seating configuration | Fixed non-reclining, non-swivel upright position | |
|---|---|---|
| Ventilation performance | Open mesh back and seat design allows continuous air flow | |
| Armrest support | Fixed curved armrests run full length of each seating position | |
| Coffee table storage | Dual-level design with upper glass top for serving and lower shelf for storage | |
| Assembly structure | Knock-down construction for flat-pack shipping | |
| Floor protection | Integrated rubber foot pads on all chair and table legs | |
| Stability design | Angled splayed leg design on all chairs and table | |
| Seating positioning | Fixed upright non-reclining, non-swivel orientation | |
| Ventilation design | Open mesh back and seat construction enables continuous air flow | |
| Shipping structure | Knock-down flat-pack construction for reduced freight volume | |
| Tipping resistance | Splayed outward-angled leg design on all chairs and table | |
| Surface maintenance | Smooth non-porous mesh, chrome and glass surfaces support wipe-down cleaning |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons per set | 5 | |
|---|---|---|
| Largest carton dimensions (3-seater sofa) | 1850 x 750 x 220 mm | |
| Total gross shipping weight per set | 100 kg | |
| Total shipping volume (CBM) per set | 0.62 | |
| On-site assembly time per set | 60 minutes | |
| 20ft GP container loading quantity | 42 sets | |
| 40ft HQ container loading quantity | 105 sets | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm |
Recommended spaces / users / usage modes
| Corporate office reception lobbies | Designed for short-term visitor waiting, chrome and black finish matches modern professional office interior design, durable frame withstands high daily foot traffic | |
|---|---|---|
| Hospital outpatient waiting areas | Breathable mesh and easy-to-clean surfaces suit high-turnover public waiting spaces, robust steel frame meets commercial use demands | |
| Bank and financial service waiting zones | Conservative professional aesthetic, fixed stable seating ensures orderly queuing, coffee table provides space for reading material and refreshments | |
| Small business meeting breakout areas | Compact 5-seat configuration fits small informal meeting spaces, coffee table supports document and beverage placement during quick discussions | |
| Government service center waiting halls | High-durability construction resists frequent public use, standardized design maintains consistent appearance across large waiting areas | |
| Serviced office shared common areas | Low-maintenance materials reduce upkeep requirements for multi-tenant office spaces, modular layout can be reconfigured as needed | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| Office furniture - Office seating: EN 1335-1:2020 | Applicable for seating dimensions, safety and strength requirements for non-task office reception seating | |
|---|---|---|
| Furniture - Glass for furniture: EN 14072-2:2016 | Applicable to toughened safety glass used in the coffee table top, specifies safety and performance criteria | |
| Furniture - Seating - Test methods for strength and durability: EN 1728:2012 | Applicable for mechanical durability testing of chair frames, seats and armrests for commercial use | |
| Furniture - Glass for furniture: EN 14072:2016 | Applicable to toughened safety glass used in the coffee table top, specifies safety and performance criteria |
US and Canada office-furniture standards
| BIFMA X5.1-2017 (General Purpose Office Chairs) | Applicable reference for static load, backrest strength and stability testing for commercial reception seating |
|---|
Standards applicable to China-market projects
| Tempered glass for furniture use: GB 15763.2-2005 | Applicable to coffee table glass top, specifies impact resistance, breakage pattern and safety requirements for glass used in furniture | |
|---|---|---|
| Furniture mechanical performance test for seating: GB/T 10357.3-2013 | Applicable for static load, durability and stability testing of all seating pieces in the set | |
| Formaldehyde emission limit for furniture materials: GB 18584-2001 | Applicable to laminated table shelf and any bonded components, sets maximum permitted formaldehyde release for indoor office use |
This product must meet the following technical requirements: 1. Tempered glass for furniture use: GB 15763.2-2005: Applicable to coffee table glass top, specifies impact resistance, breakage pattern and safety requirements for glass used in furniture; 2. Furniture mechanical performance test for seating: GB/T 10357.3-2013: Applicable for static load, durability and stability testing of all seating pieces in the set; 3. Formaldehyde emission limit for furniture materials: GB 18584-2001: Applicable to laminated table shelf and any bonded components, sets maximum permitted formaldehyde release for indoor office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
