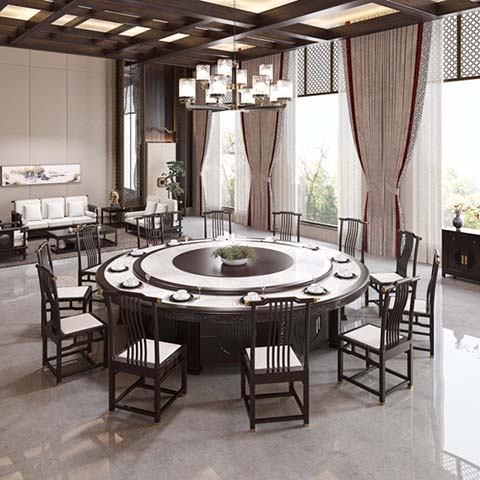

Product supplierNew Chinese Style Large Round Banquet Dining Table with Built-in Rotating Lazy Susan, Light polished sintered stone slab, UV-resistant scratch-resistant coating
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 2800 × 760 mm | |
|---|---|---|
| Overall table dimensions | 2800 mm diameter x 760 mm height | |
| Central lazy susan diameter | 1800 mm | |
| Tabletop slab thickness | 20 mm | |
| Dining surface ring width | 500 mm | |
| Base overall footprint diameter | 2200 mm | |
| Leg post cross-section | 80 x 80 mm | |
| Floor clearance under table apron | 660 mm | |
| Apron height below tabletop | 100 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total table static distributed load capacity | 500 kg | |
|---|---|---|
| Recommended maximum seating capacity | 16 guests | |
| Table net weight (without packaging) | 180 kg | |
| Surface scratch resistance rating | 6H pencil hardness | |
| Electric turntable rotation speed | 2 rpm | |
| Motor rated service life | 5000 hours | |
| Product warranty period | 5 years | |
| Available finish color options | 2 | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer tabletop ring | Light polished sintered stone slab, UV-resistant scratch-resistant coating | |
|---|---|---|
| Central lazy susan top | Dark polished sintered stone slab, stain-resistant easy-clean surface | |
| Structural frame | Solid rubber wood with dark zitan open-pore stain finish | |
| Internal support skeleton | 40 x 40 mm square welded steel tube, anti-rust powder coated | |
| Turntable mechanism | Dual-row ball bearing steel rotating assembly, pre-lubricated for smooth rotation | |
| Decorative slatted base panels | 15 mm thick solid wood slats, mortise-and-tenon joinery to frame posts | |
| Hardware connectors | Zinc-plated steel bolt and cam lock fasteners, brass foot caps on leg bases | |
| Surface wood finish | Hard wax oil sealant, low-VOC formaldehyde-compliant coating | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Lazy susan rotation | 360-degree unobstructed rotation, smooth dual-bearing operation | |
|---|---|---|
| Electric rotation upgrade compatibility | Supports 120W quiet DC motor installation, 2rpm adjustable speed | |
| Built-in safety protection for electric version | Anti-pinch, overload auto-reset, <45dB low-noise operation | |
| Leveling adjustment | Adjustable threaded feet at each leg base, compensates for up to 15 mm floor unevenness | |
| Assembly structure | Knockdown construction, tabletop, base and legs shipped as separate components | |
| Surface functional performance | Heat-resistant up to 180°C, stain-proof, non-porous surface for easy spill cleanup | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Hotel private dining rooms | Ideal for 16person formal banquet meals and business entertainment in hospitality settings | |
|---|---|---|
| High-end restaurant VIP areas | Suited for Chinese cuisine shared-dish service using the central rotating lazy susan | |
| Large residential formal dining rooms | Suitable for luxury villa homes hosting extended family gatherings and formal events | |
| Corporate clubhouse dining spaces | Appropriate for executive receptions, member banquets and private corporate functions | |
| Recommended matching seating | Pairs with 16 New Chinese style armless upholstered dining chairs to coordinate with the design aesthetic |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture strength, durability and safety requirements for domestic dining tables | |
|---|---|---|
| EN 13722:2004 | Furniture test methods for table stability and leg strength verification | |
| EN 71-3:2019 | Migration of certain elements for surface materials, applicable for food-contact adjacent surfaces |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to solid wood frame construction | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture, applicable for formaldehyde emission testing | |
| GB/T 4893.4-2013 | Surface adhesion and wear resistance test for furniture surfaces, applicable to wood and stone finishes | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable for static load and stability verification |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to solid wood frame construction; 2. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture, applicable for formaldehyde emission testing; 3. GB/T 4893.4-2013: Surface adhesion and wear resistance test for furniture surfaces, applicable to wood and stone finishes; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable for static load and stability verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
