Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1850 x 750 x 1800 mm | |
|---|---|---|
| Single seat width | 560 mm | |
| Seat height from floor | 450 mm | |
| Seat depth | 480 mm | |
| Backrest height above seat | 820 mm | |
| Headrest dimensions | 280 x 180 x 50 mm | |
| Armrest height above seat | 220 mm | |
| IV pole height above seat | 1350 mm | |
| Frame leg spread width | 680 mm | |
| Knee clearance under seat | 320 mm | |
| Perforated back panel thickness | 1.2 mm | |
| Seat cushion padding thickness | 40 mm | |
| Floor glide diameter | 30 mm | |
| IV pole tube diameter | 19 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm |
Net weight / load capacity / users / durability
| Seating capacity | 3 users | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Net product weight | 42 kg | |
| Floor contact point static load per leg | 130 kg | |
| Seat cushion compression resistance | 40000 cycles | |
| Seat cushion compression fatigue resistance | 40000 cycles | |
| Upholstery abrasion resistance | 50000 Martindale cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main support beam | 1.5mm thick chrome-plated rectangular steel tube | |
|---|---|---|
| Back support mesh | Perforated 1.2mm thick cold-rolled steel with chrome plating | |
| Seat and back padding | 40mm thick high-density polyurethane foam | |
| Upholstery | 0.8mm thick medical-grade blue polyurethane (PU) leather | |
| Armrests | 1.0mm thick chrome-plated steel tube with PU-padded tops | |
| IV poles | 19mm diameter polished stainless steel tube | |
| Support legs | 25mm diameter chrome-plated steel cantilever tubes | |
| Floor glides | 30mm diameter non-slip black rubber pads | |
| Seam construction | Reinforced nylon stitching at 8mm pitch | |
| Ventilated back support panel | 1.2mm thick perforated cold-rolled steel with chrome plating | |
| Seat, back and headrest padding | 40mm thick high-density polyurethane foam | |
| Armrest assemblies | 1.0mm thick chrome-plated steel tube frame with PU-padded tops |
Adjustment / rotation / tilt / mobility / storage features
| IV bag suspension | 3 dedicated height-adjustable IV poles with dual hooks per pole | |
|---|---|---|
| Fixed upright seating position | 105 degree fixed backrest recline angle | |
| Integrated head support | Padded fixed headrest aligned to adult cervical spine height | |
| Ventilated back support | Perforated steel mesh mid-back section between padded lumbar and upper back panels | |
| Floor stability adjustment | Adjustable threaded rubber glides on each leg | |
| Surface disinfection compatibility | Smooth non-porous PU upholstery and chrome-plated metal surfaces | |
| Beam-mounted modular construction | All seat assemblies mounted to a continuous central steel beam | |
| Disinfection compatibility | Smooth non-porous PU upholstery and chrome-plated metal surfaces | |
| Cantilever leg floor clearance | 180mm minimum clearance under seat between support legs | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 2 packages | |
|---|---|---|
| Main shipping carton dimensions | 1900 x 780 x 320 mm | |
| Accessory shipping carton dimensions | 1850 x 150 x 150 mm | |
| Total shipping gross weight | 48 kg | |
| Total shipping volume | 0.52 CBM | |
| On-site assembly time | 20 minutes | |
| 20ft GP container loading quantity | 52 units | |
| 40ft HQ container loading quantity | 126 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes
| Hospital outpatient infusion rooms | Designed for multi-patient IV therapy seating, with dedicated IV poles per position and easy-to-disinfect surfaces for clinical infection control | |
|---|---|---|
| Clinic waiting and treatment areas | Suitable for community health centers, specialist clinics and vaccination centers for extended patient seating | |
| Emergency department observation zones | Fixed stable seating for short-term patient monitoring, with integrated head support for patient comfort during post-treatment observation | |
| Blood donation centers | Accommodates donors during phlebotomy and post-donation recovery, with upright seating position and armrest support for clinical access | |
| High-traffic public service waiting areas | Can be deployed in public health stations, service hall medical service points for visitor seating | |
| Community health clinic treatment areas | Suitable for community health centers, specialist clinics and vaccination centers for extended patient seating | |
| Public health service waiting areas | Deployable in public health stations, service hall medical service points and workplace health rooms for visitor and staff seating | |
| Pediatric clinic waiting zones | Configurable as adjacent adult/child seating in pediatric outpatient areas, with smooth rounded edges to eliminate child injury risks |
European market access and chemical requirements
| Applicable standard for non-domestic seating strength | EN 16139:2013 Furniture – Strength, durability and safety – Non-domestic seating | |
|---|---|---|
| Applicable standard for surface fire resistance | EN 1021:2014 Furniture – Assessment of the ignitability of upholstered furniture – Part 1: Ignition source smouldering cigarette | |
| Non-domestic seating performance | EN 16139:2013 Furniture – Strength, durability and safety – Non-domestic seating | |
| Upholstered furniture ignitability | EN 1021:2014 Furniture – Assessment of the ignitability of upholstered furniture – Part 1: Ignition source smouldering cigarette | |
| Medical furniture surface cleanability | EN 14465:2003 Textiles – Upholstery fabrics – Specification for resistance to soiling and cleanability |
US and Canada office-furniture standards
Standards applicable to China-market projects
| Applicable standard for metal public seating | GB/T 3324 General technical requirements for metal furniture | |
|---|---|---|
| Applicable standard for medical furniture safety | GB 9706.1 Medical electrical equipment – Part 1: General requirements for basic safety and essential performance | |
| Applicable standard for furniture mechanical durability | GB/T 10357.3 Test of mechanical properties of furniture – Strength and durability of chairs and stools | |
| Metal furniture general requirements | GB/T 3324 General technical requirements for metal furniture | |
| Furniture mechanical durability for seating | GB/T 10357.3 Test of mechanical properties of furniture – Strength and durability of chairs and stools | |
| Upholstered furniture fire safety | GB 20286 Fire safety requirements for public place furnishings and components |
This product must meet the following technical requirements: 1. Applicable standard for metal public seating: GB/T 3324 General technical requirements for metal furniture; 2. Applicable standard for medical furniture safety: GB 9706.1 Medical electrical equipment – Part 1: General requirements for basic safety and essential performance; 3. Applicable standard for furniture mechanical durability: GB/T 10357.3 Test of mechanical properties of furniture – Strength and durability of chairs and stools; 4. Metal furniture general requirements: GB/T 3324 General technical requirements for metal furniture; 5. Furniture mechanical durability for seating: GB/T 10357.3 Test of mechanical properties of furniture – Strength and durability of chairs and stools; 6. Upholstered furniture fire safety: GB 20286 Fire safety requirements for public place furnishings and components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.

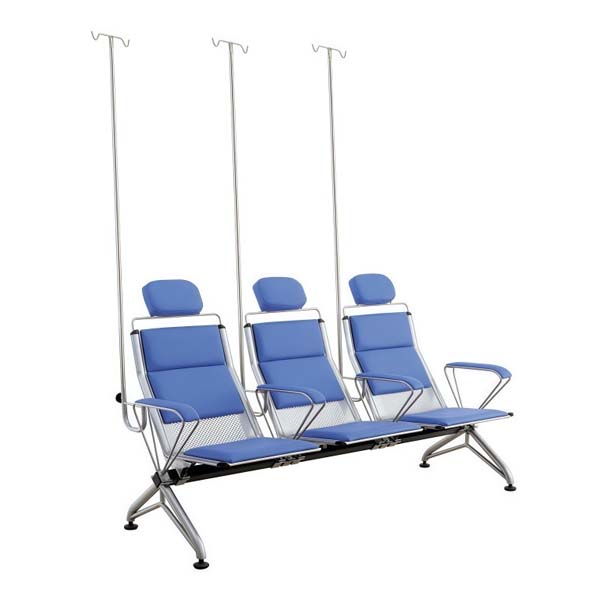

Open Export ToolThe 3-Seat Infusion Waiting Chair with IV Poles is a purpose-built public medical seating solution designed for high-turnover clinical and public service environments, with a streamlined, connected beam layout that integrates three individual seating positions in a single continuous unit. Its visual profile presents smooth blue padded upholstered sections with bright chrome-plated metal framing and polished stainless steel IV poles, creating a clean, clinical aesthetic that aligns with standard healthcare facility design standards. Each seating position features a dedicated padded headrest, padded armrests with rounded edges, and a ventilated perforated steel back panel positioned between padded lumbar and upper back sections to support air circulation during extended seating. Built for heavy public use, the chair’s core structure relies on a chrome-plated rectangular steel main support beam connected to cantilevered chrome-plated steel legs, finished with non-slip adjustable rubber floor glides that prevent floor scratching and enable stable leveling on uneven surfaces. Seating surfaces use high-density polyurethane foam padding covered in smooth, medical-grade PU upholstery, with reinforced nylon stitching to resist seam separation under repeated use. Each seat is provided with a dedicated polished stainless steel IV pole mounted behind the position, fitted with dual hooks and a locking knob for height adjustment to accommodate standard gravity infusion setups. The fixed upright backrest angle is engineered for extended seating comfort during treatment or waits, while all smooth non-porous upholstery and metal surfaces are compatible with standard hospital-grade disinfectants for routine infection control. The cantilever leg design creates open clearance under the seat to support unobstructed floor cleaning and staff foot traffic around seated users. This seating solution is well suited for a range of spaces including hospital outpatient infusion rooms, community health clinic treatment and waiting areas, emergency department observation zones, blood donation centers, public health service waiting stations, workplace health rooms, and pediatric clinic waiting zones, where its rounded edge profiles reduce injury risks for all user groups including unsupervised children. For procurement teams, key considerations include noting the split two-package shipping structure, which separates the main frame and seat assembly from IV pole accessories to simplify transport, with on-site assembly requiring only basic tools to secure poles, glides and hardware. The durable construction is rated to support consistent high daily user turnover, with abrasion-resistant upholstery and cyclic load performance tailored for continuous public use, and wipe-clean surfaces that reduce long-term facility maintenance costs. Bulk shipping configurations support high-volume orders for large facility outfitting projects, with nested stacking to maximize container utilization for freight efficiency.
