OC-MB-GR-001

Code：ESRCJCV1
Request supplier quotes

Mid-Back Mesh Task Office Chair with Fixed Armrests and Chrome Base Key Specifications 2026-08-02 13:12

Popularity: 1
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OC-MB-GR-001

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions620 x 600 x 1050 mm
Seat width500 mm
Seat depth480 mm
Seat height range520 mm
Backrest width480 mm
Backrest height600 mm
Armrest height from seat210 mm
Armrest pad dimensions250 x 60 mm
5-star base diameter700 mm
Caster diameter50 mm
Seat cushion thickness80 mm
Backrest frame thickness25 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Recommended static weight capacity120 kg
Net weight reference14 kg
Caster rolling durability100000 cycles
Gas lift cycle rating100000 cycles
Backrest tilt tension range15 degree
Seat foam density45 kg/m³
Mesh abrasion resistance30000 cycles
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Backrest surfaceGray knitted mesh fabric stretched over plastic inner frame
Backrest inner frameReinforced polymer frame with Y-shaped lumbar support structure
Seat cushionMolded foam pad covered in woven gray fabric
Seat base platePlywood or steel support plate under foam cushion
Armrest structureNylon or aluminum vertical supports with flat top pads
Gas lift columnChrome-plated steel gas spring cylinder
5-star baseChrome-plated steel five-leg structure
CastersDual-wheel polyurethane casters with black housing
Tilt mechanism chassis2.5 mm thick black steel chassis with side-mounted adjustment lever
Seat cushion coreMolded polyurethane foam pad with 45 kg/m³ density
Seat cushion upholsteryWoven gray polyester fabric covering seat foam core
Seat base support plate8 mm thick plywood support plate under foam cushion
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic height adjustment via side lever, operated by user weight and gas spring
Swivel function360-degree full rotation around central column
Backrest tiltRocker or synchro-tilt recline with tension adjustment
Fixed armrest supportFixed-height armrests with flat top pads, no height or width adjustment
MobilityRolling mobility on five dual-wheel casters
Lumbar supportIntegrated Y-shaped lumbar contour built into backrest frame
Breathable seatingOpen-mesh backrest promotes air circulation to reduce back heat buildup
Recline Angle / Lock Reference125° with 3 suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Packing configuration1 piece per carton, flat-pack knockdown form
Carton dimensions750 x 650 x 350 mm
Gross weight per carton16 kg
Cubic volume per carton0.171 m³
Assembly time30 minutes
20 ft container loading quantity260 pieces
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850 × 420 × 720 mm
Reference Packaged Gross Weight23 kg/set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Open-plan office workstationsSuitable for individual employee workstations in open-plan offices
Home office and remote work setupsAppropriate for home office desks and remote work environments
Meeting and conference roomsUsable as seating around conference tables in meeting rooms
Staff training roomsSuitable for training room seating that requires frequent reconfiguration
Co-working and shared desksIdeal for hot-desking and shared workspaces in co-working facilities
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

Safety requirementsApplicable for reference to EN 1335 office chair safety standard
Dimension usabilityApplicable for reference to EN 1335 office chair dimensional and functionality requirements
Strength and stabilityApplicable for reference to EN 1335 office chair strength and durability test methods
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

General stabilityApplicable for reference to ANSI/BIFMA X5.1 General Purpose Office Chairs standard
Caster performanceApplicable for reference to ANSI/BIFMA X5.1 caster durability and rolling resistance clauses
Gas lift performanceApplicable for reference to ANSI/BIFMA X5.1 gas lift cycle and load test sections
STANDARD S3

China GB Standards

Standards applicable to China-market projects

Seat and back strengthApplicable for reference to GB/T 10357.3 office chair strength and durability test methods
Rolling durabilityApplicable for reference to GB/T 10357.5 caster rolling resistance and durability requirements
Formaldehyde emissionApplicable for reference to GB 18584 formaldehyde limit for wooden furniture components
Standard Tender Description
This product must meet the following technical requirements:
1. Seat and back strength: Applicable for reference to GB/T 10357.3 office chair strength and durability test methods;
2. Rolling durability: Applicable for reference to GB/T 10357.5 caster rolling resistance and durability requirements;
3. Formaldehyde emission: Applicable for reference to GB 18584 formaldehyde limit for wooden furniture components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MB-GR-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MB-GR-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MB-GR-001Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

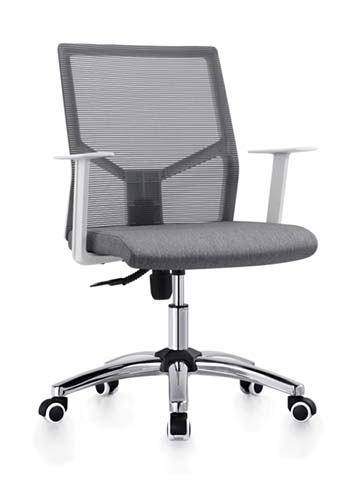

The GUOYOU Mid-Back Mesh Task Office Chr with Fixed Armrests and Chrome Base (model OC-MB-GR-001) presents a sleek, functional design tlored for everyday work use. It features a gray knitted mesh backrest stretched over a reinforced polymer frame with an integrated Y-shaped lumbar support structure, pred with a molded foam seat cushion covered in woven gray fabric. Fixed-height armrests with flat top pads attach directly to the seat frame, while a polished chrome-plated steel gas lift column connects the seat assembly to a chrome 5-star base fitted with dual-wheel polyurethane casters, creating a clean, neutral aesthetic that blends seamlessly with varied interior schemes. Constructed for reliable dly performance, the chr uses a molded polyurethane foam seat core for sustned support, with a plywood support plate under the cushion for structural stability. The tilt mechanism chassis is built from black steel, with a side-mounted adjustment lever for user control. The open-mesh backrest delivers continuous r circulation to reduce heat buildup during extended use, while the built-in Y-shaped lumbar contour mntns ergonomic lower back alignment. Core functions include pneumatic seat height adjustment via a left-side lever, 360-degree full swivel rotation, backrest tilt with tension control and upright locking, and smooth rolling mobility across standard office floor surfaces. Fixed armrests offer consistent elbow and forearm support without additional adjustment complexity. This task chr fits a wide range of commercial and residential settings. It works well for individual workstations in open-plan offices, home office and remote work setups, conference and meeting room seating, staff trning rooms, and co-working shared desk environments. Its compact footprint and neutral gray finish complement diverse decor styles, while adjustable height and rolling design support flexible space reconfiguration and multi-user access. For procurement planning, the chr ships in flat-pack knockdown form, with one unit per carton. Single-person assembly uses basic tools. The recommended static weight capacity supports standard user loads, and the design aligns with typical commercial task chr durability benchmarks. Teams may confirm material specifications, gas lift pressure class, caster floor suitability, and exact component performance data directly with the supplier to align with specific project requirements.
