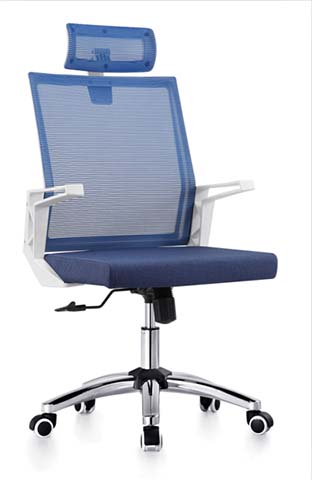

Name: Mesh High-Back Executive Office Chair with Headrest and White Armrest Frames
Brand: GUOYOU
SKU: V7SWUJ

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 650 × 1280 mm
Seat width	500 mm
Seat depth	480 mm
Seat height range	520 mm
Backrest height	680 mm
Backrest width	530 mm
Headrest width	320 mm
Armrest height from seat	210 mm
Five-star base diameter	680 mm
Caster wheel diameter	60 mm
Seat cushion thickness	90 mm
Headrest height adjustment stroke	60 mm
Armrest pad width	80 mm
Gas lift outer tube diameter	50 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended maximum user weight	150 kg
Chair net weight range	18 kg
Gas lift static load rating	200 kg
Five-star base static load rating	1200 kg
Caster rolling durability	100000 cycles
Backrest tilt angle range	12 degrees
Foam compression set resistance	25%
Backrest tilt angle maximum	18 degrees
Mesh tensile strength	2000 N
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support frame	Reinforced plastic outer frame with blue finish, supporting stretched mesh panel
Backrest and headrest mesh	Elastic woven polyester mesh with breathable grid structure
Seat cushion upholstery	Blue woven fabric surface wrap, stitched edges
Seat cushion foam core	Molded high-density polyurethane foam, flat ergonomic profile
Seat internal base	Plywood or bentwood support panel under foam, attached to mechanism plate
Armrest assembly	White painted steel arm support bracket connected to seat frame, top hard plastic arm pad
Five-star base	Chrome-plated steel tube five-point frame, polished shiny surface
Caster wheels	Black dual-wheel nylon casters with rotating stem mount
Height adjustment mechanism	Class 3 gas lift cylinder with chrome outer sleeve, black tilt control mechanism plate under seat
Headrest mounting bracket	Reinforced plastic height-adjustable bracket connecting headrest to backrest frame, with friction lock
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic height adjustment via left-side control lever, 80 mm total vertical stroke, infinitely variable within range
Backrest tilt function	Synchro-tilt recline mechanism with locking at multiple positions, maximum 12 degrees backward tilt from upright
Swivel function	360-degree full rotation around central gas lift axis, smooth rotation via bearing in tilt mechanism
Headrest support	Fixed-position mesh headrest mounted on top of backrest, providing neck and head support for tall users
Mobility function	Five dual-wheel casters enable rolling movement on hard floors and low-pile carpets, with 360-degree caster rotation
Tilt tension adjustment	Tension knob below seat adjusts recline resistance to match different user body weights
Fixed armrest support	Rigidly mounted armrests at fixed height, providing forearm support during typing and rest
Lumbar support	Integrated passive lumbar support built into mesh backrest shape, providing lower back support at 180 mm height above seat surface
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packaging configuration	1 piece per carton, flat-pack knockdown design with seat, backrest, base, gas lift, casters and hardware separated
Carton dimensions (L x W x H)	850 x 650 x 320 mm
Gross weight per carton	20 kg
Carton volume (CBM)	0.177 CBM
Assembly time per unit	30 minutes
20-foot container loading quantity	220 units
Warranty period	3 years
Available colors	Blue mesh with white frame, black mesh with black frame, gray mesh with silver frame
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office suites	Suitable for private executive offices and manager rooms, providing full back and neck support for long working hours
Open plan workstations	Appropriate for daily use in open office areas, breathable mesh back prevents overheating during extended sitting
Conference and meeting rooms	Ideal for conference room seating around meeting tables, swivel and tilt functions support flexible postures during discussions
Home office setups	Suitable for home workstations, compact base fits standard desk undercarriage, adjustable height matches different desk heights
Supervisory and administrative roles	Designed for users in administrative and supervisory positions requiring comfortable 8-hour daily seating support
Design studio workspaces	Suitable for design and creative workspaces, breathable mesh material accommodates long periods of focused sitting with frequent posture changes
Reception and visitor areas	Appropriate for premium visitor seating in reception areas, modern blue-and-white color scheme matches contemporary office decor
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1	2020: Office furniture - Office work chair - Part 1: Dimensions, applicable for ergonomic dimension compliance verification
EN 1335-2	2019: Office furniture - Office work chair - Part 2: Safety requirements, applicable for structural safety acceptance
EN 1335-3	2019: Office furniture - Office work chair - Part 3: Test methods, applicable for performance and durability testing procedures

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

BIFMA X5.1-2021	General-Purpose Office Chairs, applicable for safety, durability and structural performance testing of office seating products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 14728.1-2023	Office furniture - Chairs - Part 1: General safety requirements, applicable for structural safety acceptance of office seating products
GB/T 14728.2-2023	Office furniture - Chairs - Part 2: Mechanical safety requirements and test methods, applicable for mechanical strength and durability testing
GB 20400-2006	Leather and fur - Limit of harmful matter, applicable as reference for upholstery fabric harmful substance limits

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 14728.1-2023: Office furniture - Chairs - Part 1: General safety requirements, applicable for structural safety acceptance of office seating products;
2. GB/T 14728.2-2023: Office furniture - Chairs - Part 2: Mechanical safety requirements and test methods, applicable for mechanical strength and durability testing;
3. GB 20400-2006: Leather and fur - Limit of harmful matter, applicable as reference for upholstery fabric harmful substance limits;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MHB-013

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MHB-013

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MHB-013Open Export Tool

Quick Actions

Post an RFQ

Product Description

The GUOYOU Mesh High-Back Executive Office Chair (model OC-MHB-013) features a clean, professional silhouette anchored by a tall, contoured mesh backrest, padded headrest, and crisp white-finished armrest frames that contrast with its blue primary upholstery for a modern, polished look. The form balances structured ergonomic shaping with a sleek, uncluttered profile, sitting on a polished chrome five-star base fitted with black dual-wheel casters for a balanced visual weight that fits a range of interior design palettes. Its construction centers on an elastic woven polyester mesh back and headrest, supported by a reinforced blue-finished plastic outer frame, with a molded high-density polyurethane foam seat cushion wrapped in blue woven fabric with stitched finished edges. Armrests combine white-painted steel support brackets topped with hard plastic pads, while the chrome-plated steel base supports a Class 3 gas lift, synchro-tilt mechanism, and durable nylon casters. Functional features include 360-degree swivel, pneumatic seat height adjustment, multi-position locking synchro-tilt recline, and an adjustable tension knob to tailor recline resistance to user preference. The headrest delivers 60 millimeters of vertical adjustment to support the neck, while integrated passive lumbar support built into the mesh back contour supports the lower back; fixed armrests provide stable forearm support, and casters roll smoothly across hard floors and low-pile carpet. The recommended maximum user weight is 150 kg to support long-duration use. The chair is well suited for private executive suites, open-plan workstations, conference rooms, home offices, creative studio workspaces, supervisory roles, and premium reception and visitor seating areas, with color options extending beyond the core blue-and-white scheme to black mesh with black frames, and gray mesh with silver frames to match varying decor requirements. It pairs well with standard commercial and residential office desks, including 2.4 m executive desk configurations. Procurement teams should note that the product ships as a flat-pack knockdown unit, with a 40-minute single-person assembly time using basic tools, a 3-year structural warranty (with final terms subject to supplier confirmation), and a 20-foot container load capacity of 220 units. Purchasers are advised to confirm exact material specifications, performance test data, color SKU availability, and final warranty coverage with the supplier before placing bulk orders, as reference values are based on category benchmarks rather than formal supplier test reports.

Mesh High-Back Executive Office Chair with Headrest and White Armrest Frames Specifications
