＞ Home ＞ Office Desks & Chairs Furniture ＞ Office Chair Series ＞ Mesh Office Chair ＞ OC-MB-GY-001

OC-MB-GY-001

Code：W0QTELV1
Request supplier quotes

Mid-Back Mesh Office Task Chair with Upholstered Seat and Chrome Base Key Specifications 2026-08-02 12:18

Popularity: 1
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OC-MB-GY-001

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions620 x 600 x 1050 mm
Seat width500 mm
Seat depth480 mm
Seat height range (floor to seat top)540 mm
Backrest width480 mm
Backrest height (seat top to back top)520 mm
Armrest height (seat top to arm top)220 mm
Armrest width (per arm pad)60 mm
5-star base diameter600 mm
Caster diameter50 mm
Seat cushion thickness (front edge)80 mm
Backrest thickness (frame edge)30 mm
Armrest length (per arm pad)250 mm
Gas lift outer tube diameter50 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Recommended static weight capacity120 kg
Net weight reference14 kg
Seat foam density reference45 kg/m³
Backrest mesh tensile strength reference1500 N
Gas lift cycle life reference100000 cycles
Caster rolling durability reference100000 cycles
Seat foam compression set resistance10%
Tilt mechanism static load reference1500 N
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Backrest support surfaceBreathable woven mesh with elastic yarn construction
Seat cushion upholsteryWoven polyester fabric in medium gray
Seat cushion coreMolded polyurethane foam
Internal seat framePlywood and steel reinforcement frame
Armrest assemblyWhite plastic top pad with light gray structural support bracket
Gas lift columnChrome-plated steel pneumatic cylinder
5-star baseChrome-plated steel five-leg structure
CastersBlack nylon dual-wheel casters with chrome mounting stems
Tilt mechanism chassis2.5 mm thick stamped steel tilt plate with black powder-coated housing, mounted under seat
Backrest outer frameGray injection-molded high-strength plastic frame with reinforced corner brackets
Internal seat support frame12 mm thick plywood substrate reinforced with 1.5 mm thick steel load-bearing brackets
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic gas lift operated by right-side lever, with 100 mm maximum travel
Swivel function360-degree full rotation around central gas lift column
Backrest tilt functionSynchro or knee-tilt mechanism with multiple lockable positions, maximum recline angle 18 degrees
Armrest supportFixed-height dual-arm rest configuration with flat top pads, non-adjustable for height or width
Mobility functionFive dual-wheel casters for rolling movement on office floors and low-pile carpet
Breathable back supportTaut mesh back panel provides passive airflow and flexible lumbar conformity
Weight distributionFive-point base geometry distributes user load evenly across casters for stable seating
Tilt tension adjustmentRotary knob under front of seat adjusts backrest recline resistance to suit user weight, with 12 full rotation range of adjustment
Weight distribution stabilityFive-point base geometry distributes user load evenly across 5 casters, with 20 degree minimum tipping resistance angle under rated static load
Recline Angle / Lock Reference125° with 3 suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Packing configuration1 piece per carton, flat-packed knockdown
Carton dimensions660 x 620 x 320 mm
Gross weight per carton16 kg
Volume per carton0.131 m³
Assembly time (single person)30 minutes
20 ft container loading quantity260 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Open-plan office workstationsSuitable for daily 8-hour desk work in shared open offices, compatible with standard 760 mm height desks
Staff and administrative workstationsIdeal for general administrative, clerical and entry-level staff seating as a standardized fleet chair
Meeting and training roomsAppropriate for conference tables and training desks where 360-degree swivel and mobility are useful
Home office useSuitable for home workspaces requiring compact footprint and adjustable seat height for different desk heights
Flexible coworking spacesWorks well in hot-desking environments where users of different heights share seats
Small and medium enterprise office fit-outsSuitable for bulk procurement for new office setup projects requiring cost-effective standardized seating
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020Applicable for office chair dimension, strength and durability general requirements
EN 1022:2018Applicable for office chair stability testing under static load conditions
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017Applicable standards and test results require confirmation
ANSI/BIFMA X5.5-2021Applicable for caster and base durability evaluation for office seating
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 14724-2009Applicable standards and test results require confirmation
GB/T 3326-2016Applicable for seat height, backrest height and overall dimension measurement of furniture
GB 28007-2011Applicable for formaldehyde emission limit of wood-based internal frame parts if plywood is used
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 14724-2009: Applicable standards and test results require confirmation;
2. GB/T 3326-2016: Applicable for seat height, backrest height and overall dimension measurement of furniture;
3. GB 28007-2011: Applicable for formaldehyde emission limit of wood-based internal frame parts if plywood is used;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MB-GY-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MB-GY-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MB-GY-001Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

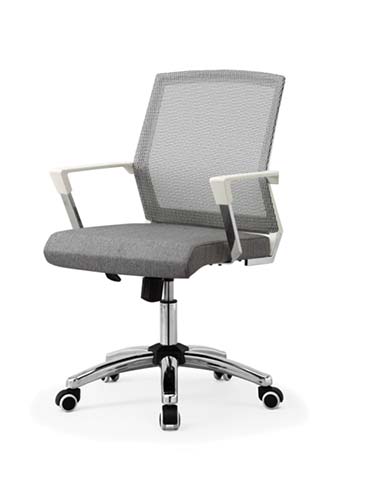

This mid-back mesh office task chair presents a streamlined, functional silhouette tailored for everyday work use. Its design features a breathable mesh backrest framed by structured trim, paired with a gray fabric-upholstered seat and fixed armrests with flat plastic top pads, all anchored by a polished chrome-plated steel 5-star base. The chair’s neutral gray and chrome color scheme creates a versatile, unobtrusive aesthetic that aligns with a range of interior styles. Constructed with durable, performance-focused materials, the chair’s backrest uses a woven mesh with elastic yarn to deliver passive support and airflow during extended use. The seat cushion integrates a molded polyurethane foam core supported by an internal frame of plywood and steel reinforcement, while the armrests combine plastic top surfaces with structural support brackets. A chrome-plated pneumatic gas lift connects the seat assembly to the chrome steel base, which is fitted with black nylon dual-wheel casters for smooth movement. The tilt mechanism beneath the seat uses a stamped steel plate within a powder-coated housing to support recline functionality. For practical use, the chair offers pneumatic seat height adjustment via a right-side lever, 360-degree swivel capability, and a backrest tilt function with lockable positions and tilt tension adjustment controlled by a rotary knob under the seat front. Fixed-height armrests provide steady upper-body support, and the taut mesh back delivers flexible lumbar conformity through passive design. The five-point base geometry evenly distributes user weight for stable seating, and the casters support rolling movement across common office floor surfaces. The chair fits seamlessly across multiple settings. In commercial spaces, it works for open-plan workstations, staff and administrative desks, meeting and training rooms, small and medium enterprise office fit-outs, and flexible coworking environments, supporting bulk fleet procurement for standardized seating needs. For residential use, it suits home offices, where its compact footprint and adjustable height pair well with varied desk setups and decor schemes. Procurement teams should note the chair ships in a flat-pack knockdown configuration with all components included, and requires on-site assembly. All material, dimensional, and performance specifications reference standard mid-back task chair configurations, so confirm specific details such as foam density, mesh tensile strength, gas lift rating, and caster wheel type directly with the supplier prior to final purchase.
