PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	610 × 680 × 1020 mm
Stacking clearance	Non-stacking fixed cantilever chair
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Recommended user weight capacity	160 kg
Static seat load acceptance target	160 kg held for 1 hour
Recommended occupancy	1 person
Net weight target	13.5 kg
Cantilever flex test target	100,000 cycles at 102 kg seat-pan load
Backrest backward force target	67 kg applied at 305 mm above seat for 1 hour
Armrest downward load target	90 kg per arm for 1 hour
Floor glide sliding durability target	50,000 back-and-forth cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Brown leather-look upholstery with visible horizontal seam detail
Back upholstery	Brown continuous upholstered cover over a tall contoured panel
Seat cushioning	Molded polyurethane foam pad with 90 mm target thickness
Back cushioning	Polyurethane foam layer with 70 mm target lumbar thickness
Seat support panel	12 mm hardwood-composite or bent plywood substrate target
Back support panel	10 mm contoured molded plywood or composite panel target
Armrests	Upholstered tubular loop arms connecting seat and back zones
Cantilever frame	Polished chrome-plated steel tube, 25 mm diameter target
Frame wall thickness target	1.5 mm steel tube
Floor glides	Four non-marking polymer glides fitted to runner ends
Under-seat mounting plate	Welded steel bracket with powder-coated or zinc-plated finish
Seam construction	Single horizontal back seam and perimeter seat seam with 8 stitches per 100 mm target

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Fixed-height seating	460 mm fixed seat height for use at standard meeting tables
Cantilever movement	Continuous steel runners provide controlled fore-and-aft flex
Swivel function	Fixed non-swivel seat and back assembly
Recline function	Fixed 12-degree back angle with no tilt mechanism
Arm support	Integrated closed-loop armrests provide forearm support during entry, exit, and meetings
Floor protection	Four polymer end glides allow repositioning while reducing floor marking
Back support zones	Upper shoulder zone and lower lumbar zone separated by a horizontal seam
Mobility	Lightweight repositionable sliding chair without casters
Folding function	Non-folding rigid chair frame
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Conference rooms	Fixed 460 mm seat height pairs with standard 760 mm meeting tables for attendees using laptops or documents.
Executive reception areas	Brown high-back styling and chrome frame support formal visitor seating outside offices and boardrooms.
Training and interview rooms	Non-swivel sled base reduces distractions and gives visitors stable seating during structured discussions.
Open-plan touchdown spaces	Compact 610 x 680 mm footprint suits short-stay guest seating beside workstations or collaboration tables.
Hotel meeting suites	Upholstered armrests and a polished sled frame fit business centers and hospitality meeting rooms.
Flooring condition	Use on carpet tile, wood, tile, or sealed hard floors with polymer glides; add felt glides for delicate polished floors.
Configuration recommendation	Place around a conference table with 650 mm table edge per chair and 800 mm rear circulation clearance.
Not recommended for prolonged individual task work	Fixed height and lack of tilt or lumbar adjustment make it more suitable for guest and meeting use.

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office chair safety testing	EN 16139
Upholstery fabric abrasion	EN 14465
Furniture surface fire performance	EN 1021and EN 1021
Office chair dimensional ergonomics	EN 1335

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Contract lounge and visitor seating safety	ANSI/BIFMA X5.4

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office chair dimensional screening	GB/T 14774
Furniture mechanical safety screening	GB 28007
Upholstered furniture textile labeling	GB/T 29862

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. Office chair dimensional screening：GB/T 14774；
2. Furniture mechanical safety screening：GB 28007；
3. Upholstered furniture textile labeling：GB/T 29862；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CNF-SLED-BRN-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CNF-SLED-BRN-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CNF-SLED-BRN-01打开导出工具

页面快速操作

发布采购询价

产品描述

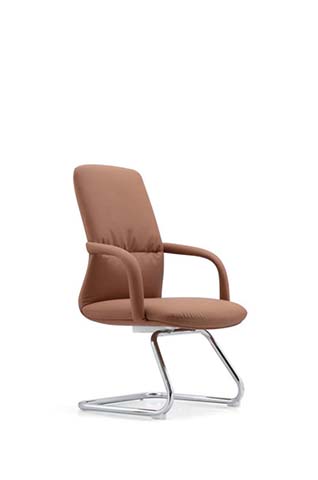

The Brown Upholstered Cantilever Conference Chair combines a structured high-back silhouette with a polished chrome sled frame, giving meeting and reception settings a neat, professional appearance. Its brown leather-look upholstery covers the padded seat, tall contoured back, and integrated arm pads. A horizontal seam separates the upper shoulder area from the lower lumbar zone, while the closed-loop tubular arms visually connect the seat and back while providing forearm support. The chair has fixed height, a fixed non-swivel seat, and a fixed back angle, creating a stable, formal visitor seat with controlled fore-and-aft flex from the continuous cantilever runners. Four polymer end glides allow repositioning while helping to reduce floor marking. Construction centers on a polished chrome-plated tubular steel cantilever frame. The seat uses a molded polyurethane foam cushion over a hardwood-composite or bent plywood support panel, while the back uses polyurethane foam over a contoured molded plywood or composite panel. Upholstered arm pads add comfort during meetings and when entering or leaving the seat. The frame and glides form a practical floor-contacting base, and the fixed structure makes the chair non-stacking. The recommended occupancy is one person, with a recommended user weight capacity of 160 kg. The fixed seat height is suited to standard meeting tables, making the chair appropriate for conference rooms, boardroom visitor positions, executive reception areas, interview rooms, training spaces, and hotel business centers. Its compact footprint also supports short-stay guest seating in open-plan touchdown areas or beside collaboration tables. The brown finish and reflective chrome frame suit traditional executive interiors as well as more contemporary commercial spaces. Procurement planning should account for delivery in two cartons per set and on-site assembly, with a reference assembly time of 40 minutes per set. Buyers should also plan storage and handling around the packaged set weight and carton volume. Because the chair does not stack, storage for spare seating should be arranged accordingly. Polymer glides are intended for carpet tile, wood, tile, or sealed hard floors; felt glides should be added for delicate polished floors. As an unbranded model, purchasers should confirm finish consistency, cushion comfort, arm clearance, frame finish, and replacement glide availability before placing larger orders.

Brown Upholstered Cantilever Conference Chair with Chrome Sled Base Specifications
