PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	620 × 680 × 1000 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight	16 kg
Recommended user weight	160 kg
Recommended user height	190 cm
Seating capacity	1 person
Frame vertical static load target	1200 N
Seat impact durability target	100000 cycles
Backrest rearward force target	700 N
Arm downward static load target	750 N per arm
Floor glide load area	4 polymer glides
Warranty target	5 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Smooth taupe-gray polyurethane-leather look fabric over shaped padding
Back upholstery	Continuous upholstered back panel with edge piping and matching taupe-gray finish
Seat cushion foam	90 mm molded polyurethane foam with 45 kg/m3 density target
Back cushion foam	50 mm polyurethane padding with 35 kg/m3 density target
Upholstery thickness	1.2 mm coated-fabric facing target
Abrasion acceptance target	100000 Martindale cycles double rubs target
Inner support board	12 mm plywood or engineered-composite seat support board target
Back inner shell	8 mm molded plywood or composite back carrier target
Sled frame	Black-coated bent steel cantilever frame using 25 x 2.0 mm twin-rail tube target
Arm structure	Upholstered arm pads over steel supports with polished chrome side trim
Foot glides	Replaceable polymer or nylon glides with felt-compatible hard-floor option
Under-seat connector	Black steel mounting plate linking seat shell to cantilever frame

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Fixed cantilever movement	Sled frame provides controlled fore-aft flex without swivel, casters, or gas lift
Back support	Fixed high back provides upper-back and shoulder contact with no recline adjustment
Arm support	Continuous fixed arm pads support forearms at 230 mm above the seat
Floor protection	Four non-swivel polymer glides protect hard floors and reduce lateral slip
Entry and exit	Open front frame and armless front edge allow side or forward entry at a meeting table
Stacking capability	Non-stacking fixed frame
Seat adjustment	No height, tilt, lumbar, depth, or arm-height adjustment mechanisms visible
Recline lock	Permanent fixed-back connection; 0-degree adjustable recline travel
Cleaning access	Smooth upholstery and exposed frame permit wipe-down maintenance around seat and glides
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Gross weight	18 kg per carton
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Conference room	Use around boardroom tables where a fixed 450 mm seat height and quiet non-rolling base are preferred
Executive visitor area	Place across from an executive desk for short-to-medium meetings
Meeting and training room	Deploy in fixed rows or around modular tables where casters are not required
Consultation office	Suitable for legal, financial, or management consultation seating
Hotel business center	Specify in taupe-gray upholstery for neutral executive interiors
Hard-floor office	Use glide feet on wood, tile, or sealed concrete floors while retaining felt-pad options
Pairing configuration	Place 2 to 8 chairs around a 3600 mm conference table
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16139 non-domestic seating	Use Level 2 contract-seating strength, durability, and safety requirements for conference use
EN 1022 seating stability	Evaluate forward, rearward, and lateral stability on the cantilever sled frame
EN 1021 upholstered flammability	Request cigarette and match ignition test reports if fire performance is contractually required

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.4 lounge and conference seating	Use static, cyclic, impact, and reclining-load acceptance tests for fixed conference chairs
ANSI/BIFMA X5.1 general-purpose chairs	Use only clauses compatible with a non-swivel, non-caster sled-base chair

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.2 furniture mechanical test	Apply chair back-strength and durability test methods for acceptance of the fixed back
GB/T 10355.6 furniture safety test	Apply chair seating stability and leg/forward-overturning checks to the sled base
GB/T 3324 general technical requirements	Use metal furniture coating adhesion, appearance, and dimensional-inspection clauses where applicable

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 10357.2 furniture mechanical test：Apply chair back-strength and durability test methods for acceptance of the fixed back；
2. GB/T 10355.6 furniture safety test：Apply chair seating stability and leg/forward-overturning checks to the sled base；
3. GB/T 3324 general technical requirements：Use metal furniture coating adhesion, appearance, and dimensional-inspection clauses where applicable；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · USC-SLED-620-TAUPE

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · USC-SLED-620-TAUPE

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · USC-SLED-620-TAUPE打开导出工具

页面快速操作

发布采购询价

产品描述

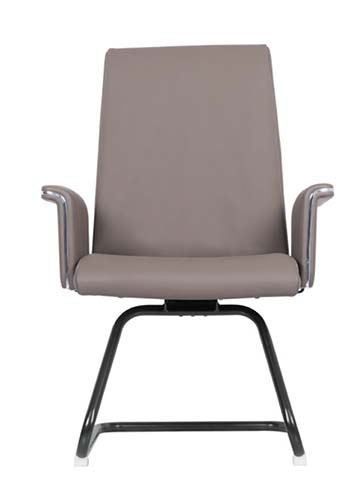

The Upholstered Sled-Base Conference Armchair is a tailored visitor and meeting seat with a composed executive appearance. Its smooth taupe-gray polyurethane-leather look upholstery covers a continuous padded back panel finished with edge piping, while the matching seat and integrated arm structure create a unified visual profile. The black-coated bent steel sled frame gives the chair a clean cantilever silhouette, with twin rails extending beneath the seat and an open front that keeps the entrance unobstructed. Fixed arm pads continue the side structure, and four polymer glides complete the refined, low-profile base. Construction balances cushioned comfort with a supportive seating structure. The seat uses molded polyurethane foam with a finished cushion thickness of 90 mm, set over an internal plywood or engineered-composite support board. The backrest features polyurethane padding, edge-piped upholstery, and a molded plywood or composite carrier, with a defined lumbar support zone. The coated-fabric facing has a target thickness of 1.2 mm, and material acceptance is targeted at 100000 Martindale double rubs. The frame is formed from black-coated bent steel twin-rail tube and carries a net weight of 16 kg. It is rated for a 160 kg recommended user weight and a recommended user height of 190 cm, with single-person seating capacity. Functionally, the chair is intentionally fixed rather than task-oriented. The cantilever sled base provides controlled fore-aft flex without swivel, casters, or a gas lift, supporting a calm seating experience in meeting environments. The fixed high back offers upper-back and shoulder contact with no recline adjustment, and there are no visible height, tilt, lumbar, depth, or arm-height controls. The continuous arm pads support forearms 230 mm above the seat, while the clear width between armrests is 540 mm. Non-swivel polymer glides protect hard floors and reduce lateral slip, and the open front allows forward or side entry at a table. The chair is non-stacking. It is well suited to boardrooms, executive visitor positions, meeting and training rooms, consultation offices, and hotel business centers. The neutral taupe-gray finish works with restrained executive interiors, and the glide feet are appropriate for wood, tile, or sealed concrete floors, with felt-pad options retained where floor conditions require them. Procurement teams should note the unbranded model USC-SLED-620-TAUPE and plan for fixed-position layout rather than mobile seating. Packaging is referenced as one set across two cartons, with a packaged gross weight of 23 kg per set and a reference assembly time of 40 minutes. Buyers should also confirm upholstery options, glide choice, and delivery and assembly requirements before installation.

Upholstered Sled-Base Conference Armchair Specifications
