PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	640 × 680 × 990 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Recommended user weight capacity	120 kg
Chair net weight	15 kg
Cantilever flex rating	100,000 seating cycles
Static seat proof load	800 N
Backrest pull-back force	700 N
Arm downward load	750 N per arm
Floor glide bearing area	4 glides at 900 mm2 each
Color options	1 visible gray-and-tan version
Warranty	5 years frame, 2 years upholstery
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Outer upholstery	Gray polyurethane leather, 1.2 mm face thickness
Upholstery abrasion target	50,000 Martindale cycles
Seat cushion foam	High-resilience polyurethane foam, 80 mm compressed thickness, 45 kg/m3 density
Seat foam rebound	45% rebound rating
Back padding	Molded polyurethane foam, 70 mm lumbar thickness, 35 kg/m3 density
Internal support shell	12 mm molded plywood or reinforced polypropylene seat board
Frame	Chrome-plated cold-rolled steel tube, 25 mm diameter, 1.8 mm wall thickness
Frame coating	Polished chrome plating, 0.25 mm minimum plating target
Arm accent panel	Tan rigid upholstered or painted composite insert
Stitching	Single-needle matched-thread seam, 7 mm stitch pitch
Floor glides	Injection-molded polyethylene or nylon caps, 4 pieces
Underseat mounting plate	2.5 mm powder-coated steel plate with welded tube sockets

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Fixed cantilever movement	The frame provides controlled vertical flex with no swivel, gas lift, or caster movement
Seating access	Open front sled design allows side or forward approach at 450 mm seat height
Back support	Tall contoured back provides lumbar and lower-shoulder support with a 7-degree reclined angle
Arm support	Continuous wraparound arm loop provides fixed elbow support and side impact protection
Floor protection	Four replaceable glides cap the frame ends for hard floors and reduce sliding noise
Stacking capability	Non-stacking chair; continuous cantilever frame is not designed for nested vertical storage
Recline adjustment	0 recline positions; fixed upholstered shell with no tilt control visible
Height adjustment	0 height positions; no gas cylinder is used and seat height remains fixed at 450 mm
Return behavior	Cantilever spring returns the seat shell toward upright after normal seated flex
Maintenance access	Underseat bolts allow upholstery shell replacement without removing the floor frame
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Conference rooms	Fixed-height 450 mm chair pairs with 760 mm conference tables for board and meeting settings
Executive visitor seating	Polished chrome and gray upholstery suit deskside guest seating in management offices
Training and consultation areas	Cantilever flex and glides provide quiet, non-rolling seating for interviews and advisory rooms
Reception lounges	The upright padded form supports short-to-medium waiting periods rather than deep lounge reclining
Open-plan meeting pods	Two or more chairs can be arranged around compact tables without gas-lift adjustment conflicts
Hard-floor interiors	Four glides are appropriate for tile, wood, laminate, and low-pile meeting-room floors
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Recommended seating safety standard	EN 16139
Recommended stability standard	EN 1022
Upholstery fire option	BS EN 1021and BS EN 1021

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Recommended office seating standard	ANSI/BIFMA X5.1
Recommended durability protocol	ANSI/BIFMA X5.1 Test 11, 100,000 cycles
Recommended floor-care interface	ANSI/BIFMA X5.1 floor-protection review for hard floors

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Recommended safety standard	GB/T 10357.2
Recommended back durability standard	GB/T 10357.3
Recommended arm strength standard	GB/T 10357.6
Recommended furniture limit standard	GB 18584

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. Recommended safety standard：GB/T 10357.2；
2. Recommended back durability standard：GB/T 10357.3；
3. Recommended arm strength standard：GB/T 10357.6；
4. Recommended furniture limit standard：GB 18584；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CNF-GRY-CANT-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CNF-GRY-CANT-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CNF-GRY-CANT-01打开导出工具

页面快速操作

发布采购询价

产品描述

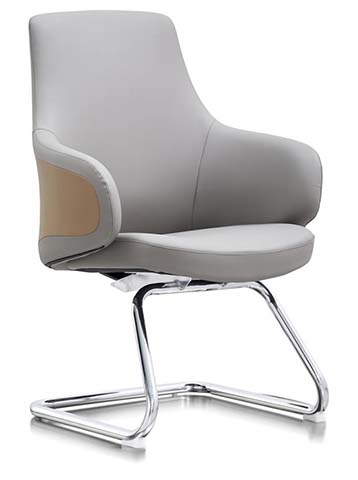

The Gray Upholstered Cantilever Conference Chair, model CNF-GRY-CANT-01, is an unbranded office conference chair with a clean modern silhouette. Its gray polyurethane-leather upholstery covers a padded seat and tall contoured back, while a polished chrome tubular cantilever frame creates a continuous wraparound structure. Tan arm accent panels add understated contrast to the integrated armrests, giving the chair a professional appearance suited to meeting and executive environments. Overall dimensions are 640 by 680 by 990 millimeters. The 450 millimeter fixed seat height allows forward or side access through the open sled front, and the clear width between armrests is 540 millimeters. The seat cushion has a finished thickness of 90 millimeters, using high-resilience polyurethane foam with an 80 millimeter compressed thickness, 45 kilograms per cubic meter density, and a 45 percent rebound rating. Backrest padding is 70 millimeters thick in the lumbar area, using molded polyurethane foam at 35 kilograms per cubic meter density, with a 240 millimeter lumbar support zone. The outer upholstery is gray 1.2 millimeter polyurethane leather with a 50,000 Martindale abrasion target. Internal support is provided by a 12 millimeter molded plywood or reinforced polypropylene seat board. The frame is built from chrome-plated cold-rolled steel tube with a 25 millimeter diameter and 1.8 millimeter wall thickness, finished with polished chrome plating at a 0.25 millimeter minimum plating target. The fixed cantilever design provides controlled vertical flex without swivel, gas lift, casters, tilt control, or adjustable recline. The back is set at a 7-degree reclined angle and supports the lumbar area and lower shoulders. The continuous arm loop supplies fixed elbow support and side impact protection, while four replaceable glides protect tile, wood, laminate, and low-pile meeting-room floors and reduce sliding noise. Rated for users up to 120 kilograms, the chair has a 100,000 seating-cycle cantilever flex rating, an 800 newton static seat proof load, 700 newton backrest pull-back force, and 750 newton downward arm load per arm. Four glides provide 900 square millimeters of bearing area each. The chair weighs 15 kilograms and is non-stacking, so storage planning should allow for individual placement rather than nested vertical storage. Suitable applications include boardrooms, conference rooms, executive visitor seating, training and consultation rooms, reception lounges, and open-plan meeting pods. For conference settings, the fixed-height chair pairs with 760 millimeter tables. Its upright padded form is intended for short-to-medium waiting periods and focused conversation rather than deep lounge reclining. Procurement planning should note that one set ships in two cartons, with packaged gross weight of 23 kilograms and carton volume of 0.26 cubic meter. Reference carton dimensions are 850 by 420 by 720 millimeters, assembly time is 40 minutes per set, and indicative 20GP loading is 135 sets at 85 percent space utilization.

Gray Upholstered Cantilever Conference Chair Specifications
