PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	600 × 640 × 990 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight	9 kg
Recommended user weight	160 kg
Frame static verification load	500 kg
Cantilever fatigue cycles	120,000 cycles
Seat foam density	45 kg/m3
Back foam thickness	60 mm
Foam rebound	40%
Upholstery abrasion resistance	50,000 Martindale cycles
Seam stitch pitch	8 stitches per 50 mm
Quantity per configuration	1 chair

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat facing	Black smooth leather-look upholstery with sewn edge rollover
Back facing	Black upholstered panel with horizontal lumbar contour
Seat cushion core	Molded polyurethane foam, 80 mm thick at front edge
Back cushion core	Molded polyurethane foam over contoured support board
Internal seat support	12 mm plywood or molded composite load board
Cantilever frame	Polished chrome-plated welded steel tube, 25 mm diameter
Arm contact pads	Black padded protective pads on curved tubular armrests
Floor glides	Black non-marking polymer end caps at four floor-contact points
Frame finish	Mirror-polished chrome plating over steel
Back edge construction	Layered black upholstered side profile with stitched rolled edge
Frame joints	Welded cantilever bends with arm-to-base connection sleeves
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Cantilever movement	Fixed sled frame provides controlled vertical flex without casters or swivel
Back support	Medium-high contoured back with fixed 10-degree recline and lumbar pad
Arm support	Cantilever arms provide fixed forearm support at 220 mm above seat
Entry and exit	Open front sled design allows side access with 530 mm arm spacing
Floor protection	Four polymer contact pads reduce scratching on hard floors
Stacking capability	Non-stacking single-unit design
Height adjustment	Fixed 450 mm seat height with no gas lift or height control
Rotation	360-degree rotation not provided because the chair uses a fixed sled base
Cleaning access	Smooth black facing and open metal frame permit wipe-down maintenance
Back recline angle	10 degrees
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Carton dimensions	680 x 620 x 560 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Boardroom seating	Use around conference tables at a fixed 450 mm seat height for laptop and document work
Executive visitor seating	Place in front of management desks where a formal non-swivel guest chair is required
Reception and waiting areas	Suitable for short-to-medium duration guest seating with lumbar contour and padded arms
Training rooms	Deploy in rows or around modular tables where caster-free stability is preferred
Hearing or interview rooms	Fixed frame and open underside provide a stable, easily inspected seating solution
Hard-floor offices	Use on tile, wood, or vinyl floors with four non-marking polymer glides
Recommended table height	Pair with 760 mm meeting or work tables
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16139:2013+A2:2024 suitability	Applies to strength, durability and safety requirements for non-domestic seating
EN 1022:2018 suitability	Applies to determination of seating stability
EN 12520 suitability	Applies to domestic seating strength and safety if residential versions are ordered

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.4-2022 suitability	Applies to lounge and public-area seating safety and durability
ANSI/BIFMA X5.1-2017 suitability	Applies to general-purpose office chairs; use applicable static, fatigue and stability tests
ANSI/BIFMA e3-2019 suitability	Applies to furniture sustainability attributes if material emissions and BOM data are provided

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2024 suitability	Applies to general wooden furniture technical requirements if a timber load board is used
GB/T 10357.3-2013 suitability	Applies to seat and back strength/durability test methods for furniture
GB 28007-2011 suitability	Applies to children's furniture only and is not suitable for this adult conference chair
GB/T 27924-2011 suitability	Applies to industrial environmental-protection requirements for leather and fur if genuine leather is supplied

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2024 suitability：Applies to general wooden furniture technical requirements if a timber load board is used；
2. GB/T 10357.3-2013 suitability：Applies to seat and back strength/durability test methods for furniture；
3. GB 28007-2011 suitability：Applies to children's furniture only and is not suitable for this adult conference chair；
4. GB/T 27924-2011 suitability：Applies to industrial environmental-protection requirements for leather and fur if genuine leather is supplied；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CF-CH-BLK-CANT-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CF-CH-BLK-CANT-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CF-CH-BLK-CANT-01打开导出工具

页面快速操作

发布采购询价

产品描述

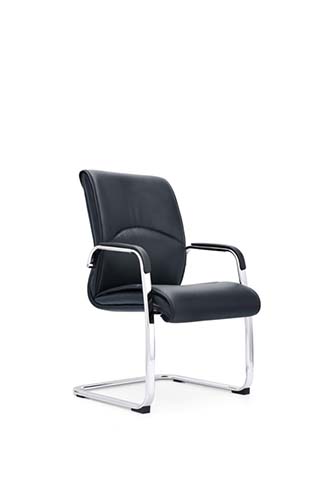

The Black Padded Cantilever Conference Chair with Chrome Sled Frame presents a tailored, professional seating solution for meeting and visitor environments. Its black smooth leather-look upholstery creates a formal appearance, while sewn edge rollover on the seat and a horizontal lumbar contour on the back panel give the chair a structured visual profile. A polished chrome-plated cantilever frame adds a bright, linear accent beneath the dark seating body, and curved tubular arms finished with black padded pads balance visual lightness with upper-body support. The fixed sled layout has an open front and underside, supporting neat side access and an uncluttered look around tables or desks. Construction centers on a welded steel tube cantilever frame with mirror-polished chrome plating. The seat uses molded polyurethane foam over an internal plywood or molded composite load board, with a finished cushion thickness of 90 mm and a foam density of 45 kg/m3. The back combines molded polyurethane foam over a contoured support board, offering a 70 mm padded finish and a defined 240 mm lumbar support zone. The 540 mm clear width between armrests provides generous personal space, while black polymer end caps at all four floor-contact points help protect hard flooring from marking. Functionally, the chair is intentionally fixed rather than task-oriented. The cantilever sled frame delivers controlled vertical flex without casters or swivel movement, and the seat remains at a fixed 450 mm height with no gas lift. The medium-high back is set in a fixed 10-degree recline and includes a lumbar pad, making it suited to laptop and document work, discussions, and short-to-medium waiting periods. Fixed armrests support forearms 220 mm above the seat, and the non-stacking design is intended as a stable single-unit seating option. This model fits boardrooms, executive offices, reception areas, training rooms, interview settings, and hard-floor workplaces using tile, wood, or vinyl. Its non-swivel character is particularly appropriate where a formal guest chair or caster-free stability is preferred. Procurement teams should note the unbranded CF-CH-BLK-CANT-01 model designation, 9 kg net weight, fixed seat height, non-stacking format, and four-glide floor protection. Packaging is listed as one set across two cartons, with a packaged gross weight of 23 kg and a reference assembly time of 40 minutes per set, allowing practical planning for delivery, storage, and installation.

Black Padded Cantilever Conference Chair with Chrome Sled Frame Specifications
