PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	600 × 620 × 930 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Recommended user weight capacity	160 kg
Chair net weight	14 kg
Maximum suitable user height	1900 mm
Recommended occupancy	1 person
Seat foam thickness	60 mm
Back padding thickness	35 mm
Seat foam density	45 kg/m3
Back foam density	35 kg/m3
Foam rebound resilience	40 percent
Frame tube wall thickness	1.5 mm

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Black synthetic leather or leather-look fabric with horizontal stitched rib channels
Back upholstery	Black flexible upholstery divided into nine visible horizontal padded ribs
Seat cushion	60 mm polyurethane foam core on a rigid load-bearing seat board
Back panel	35 mm padded panel attached to a steel or molded inner support
Inner support board thickness	12 mm
Cantilever frame	25 mm diameter polished chrome-plated steel tube with continuous bends
Frame finish	Chrome plating over welded steel tubing with polished exposed surface
Arm pads	Black padded rectangular pads mounted on chrome tubular supports
Arm supports	Chrome steel tube rising from the seat frame and terminating in black pads
Floor glides	Four black non-marking polymer glides at the sled-tube contact points
Joint construction	Welded or mechanically clamped frame joints with concealed seat fasteners
Seat underside	Black reinforced support plate or cradle connecting upholstery to cantilever frame

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Seating movement	Fixed cantilever flex with no swivel, tilt, or height adjustment
Arm support	Fixed padded armrests at 680 mm above floor for forearm support during meetings
Back support	Mid-back profile with nine horizontal ribs supports thoracic and lower-back area
Entry and exit	Open front sled base permits side access without a central wheelbase or pedestal
Floor protection	Four 30 mm polymer glides reduce scratching on hard flooring
Stacking	Non-stacking fixed frame with armrests and connected runners
Mobility	Stationary chair without casters, intended to be lifted for repositioning
Reclining	No recline mechanism or lock position; back angle is fixed at 10 degrees
Height adjustment	No gas lift; seat remains fixed at 450 mm height
Cleaning access	Smooth black upholstery and open chrome frame allow wiping and under-chair cleaning
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Conference room	Fixed 450 mm seat height aligns with standard 760 mm meeting tables
Visitor and reception area	Black upholstery and slim chrome frame provide formal guest seating without task-chair controls
Training room	Stationary sled base reduces rolling distractions and supports orderly row seating
Office workstation guest seating	Compact 600 x 620 mm footprint fits beside desks for short meetings
Open collaboration zone	Lightweight 14 kg target allows staff to reposition chairs around lounge or project tables
Hard-floor meeting space	Four polymer glides protect tile, wood, and laminate floors during controlled movement
Public contract interiors	Mid-back support and 160 kg target capacity suit general adult users in commercial spaces
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16139 suitability	Strength, durability, and safety requirements for non-domestic seating including visitor chairs
EN 1022 suitability	Domestic and contract seating stability test method, suitable for fixed four-contact sled chairs
EN 1728 suitability	Test methods for strength and durability of domestic and contract seating

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.2 suitability	Furniture mechanical test for chair and stool stability, appropriate for fixed visitor chairs
GB/T 10357.3 suitability	Applicable standards and test results require confirmation
GB/T 3324 suitability	General technical requirements for wooden furniture, applicable if the inner seat board is wood-based
GB 18584 suitability	Indoor decorative material limit for formaldehyde on wood-based furniture components

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 10357.2 suitability：Furniture mechanical test for chair and stool stability, appropriate for fixed visitor chairs；
2. GB/T 10357.3 suitability：Applicable standards and test results require confirmation；
3. GB/T 3324 suitability：General technical requirements for wooden furniture, applicable if the inner seat board is wood-based；
4. GB 18584 suitability：Indoor decorative material limit for formaldehyde on wood-based furniture components；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · VIS-SLED-RIB-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · VIS-SLED-RIB-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · VIS-SLED-RIB-01打开导出工具

页面快速操作

发布采购询价

产品描述

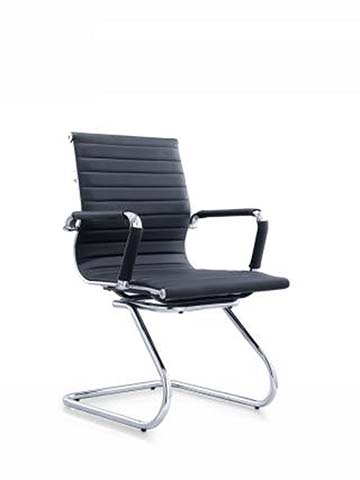

The Black Ribbed Sled-Base Visitor Chair with Chrome Frame is a formal conference and visitor seat defined by a structured mid-back profile, black ribbed upholstery, fixed armrests, and a polished cantilever frame. Its compact rectangular footprint and open sled layout give it a disciplined visual presence suited to ordered meeting environments, while the contrast between black upholstery and bright chrome creates a clean, professional appearance. The model is unbranded and identified as VIS-SLED-RIB-01. Visually, the back is divided into nine visible horizontal padded ribs, producing a tailored surface that supports the thoracic and lower-back area. The seat uses black synthetic leather or leather-look fabric with horizontal stitched rib channels, finished over foam padding. A 60 mm polyurethane foam core sits on a rigid load-bearing seat board, while the 35 mm padded back panel attaches to a steel or molded inner support. The fixed arm pads are black and rectangular, mounted on chrome tubular supports that rise from the seat frame. The supporting structure is a continuous cantilever frame made from 25 mm polished chrome-plated steel tube. Welded steel tubing carries the bright chrome finish, creating connected runners without casters, a central pedestal, or a wheelbase. The chair provides fixed cantilever flex only; it does not swivel, tilt, or adjust in height. Four 30 mm polymer glides are fitted to reduce scratching on hard flooring when the chair is moved. Its stationary design encourages orderly row seating and reduces rolling distractions during meetings or training sessions. With a 540 mm clear width between armrests, fixed forearm support, and a 240 mm lumbar support zone, the chair is intended for single-person occupancy. The recommended user weight capacity is 160 kg, the maximum suitable user height is 1900 mm, and the chair net weight is 14 kg. The fixed 450 mm seat height is intended to align with standard 760 mm meeting tables. Entry and exit are assisted by the open front sled base, which permits side access. The chair is non-stacking and should be lifted for repositioning. This model is suitable for conference rooms, reception and visitor areas, training rooms, guest seating beside office workstations, open collaboration zones, and hard-floor meeting spaces. Its black finish and slim frame make it appropriate for formal guest use without the adjustable controls associated with task seating, while its relatively light build supports rearrangement around lounge or project tables. Procurement teams should note that the chair ships as one set across two cartons, with a reference packaged gross weight of 23 kg and an indicated assembly time of 40 minutes per set. It is best specified where stable, non-mobile seating and a consistent chrome-and-black aesthetic are priorities, rather than where stacking, casters, or ergonomic adjustability are required.
