PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	620 × 700 × 1020 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Recommended user weight capacity	160 kg
Net weight	16 kg
Seat foam density	45 kg/m3
Back foam density	35 kg/m3
Foam rebound rating	40%
Recommended daily occupancy	8 hours
Cantilever static proof-load target	640 kg
Upholstery abrasion acceptance target	50,000 Martindale cycles
Seam slippage acceptance target	6 mm
Color options	1 visible black finish

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Black smooth upholstery with tailored edge seams
Back upholstery	Three-panel black padded back with vertical stitched channels
Seat cushion	100 mm thick padded cushion over a load-bearing seat shell
Back cushion	80 mm padded back panel mounted to an internal support board
Arm pads	Integrated black padded armrests with rounded edges and stitched side panels
Internal seat support	12 mm molded plywood or composite seat board
Internal back support	8 mm molded back board or steel-reinforced panel
Cantilever frame	Polished chrome-plated steel tube, 25 mm diameter, continuous sled design
Floor glides	4 integrated polymer or nylon glides at runner ends
Mounting plate	Black steel underside plate connecting seat frame to cantilever tubes
Surface finish	Polished reflective metal finish with black padded contact surfaces
Stitching	Black matching thread with vertical back seams and arm-panel seams

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Fixed cantilever movement	Continuous steel runners provide limited fore-aft flex without swivel or caster movement
Height adjustment	No height mechanism; fixed 450 mm seat height for conference-table use
Back movement	Fixed 10-degree back support with no recline control or tilt lock
Arm support	Fixed padded armrests at 220 mm above seat for forearm support during meetings
Seating access	Open front sled design allows side and front access without arm-height adjustment
Floor protection	Four end glides slide on hard floors while reducing frame contact noise
Stacking capability	Non-stacking high-back executive chair
Upholstery maintenance	Smooth black surface can be wiped clean; removable cover is not visible
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Executive meeting room	Formal black high-back visitor chair placed around boardroom tables for clients and managers
Manager office guest seating	Suitable in front of an executive desk where a non-swivel guest chair is preferred
Conference center	Can be specified in rows or around modular meeting tables for all-day intermittent use
Reception lounge	Fits premium reception areas needing a structured upright silhouette rather than a lounge recliner
Private consulting room	Suitable for financial, legal, or administrative meetings across a desk
Commercial procurement configuration	Order in matching sets with black upholstery and chrome bases for standardized boardrooms
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16139 applicability	Non-domestic seating strength, durability, and safety standard suitable for visitor and conference chairs.
EN 1022 applicability	Chair stability test method, applicable to front, rear, and side overturning assessment.
EN 12520 applicability	Residential seating strength, durability, and safety may apply where the model is sold for office or dual use.
EN 13722 applicability	Customer-office seating requirements may be used if the supplier positions the chair for public service areas.

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.4 applicability	Lounge and public seating strength and durability reference for fixed visitor chairs.
ANSI/BIFMA X5.1 applicability	General-purpose office chair tests may be selectively specified for static load, back, and leg strength.

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.2 applicability	Furniture mechanical test for seating stability, applicable as a procurement acceptance item.
GB/T 10357.3 applicability	Furniture strength and durability test for chairs, applicable to frame, seat, and back validation.
GB/T 28001 applicability	Use only if the supplier provides verified occupational health and safety management documentation.
GB 18584 applicability	Indoor furniture limited-hazard requirement for finished seating materials, applicable to procurement review.

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 10357.2 applicability：Furniture mechanical test for seating stability, applicable as a procurement acceptance item.；
2. GB/T 10357.3 applicability：Furniture strength and durability test for chairs, applicable to frame, seat, and back validation.；
3. GB/T 28001 applicability：Use only if the supplier provides verified occupational health and safety management documentation.；
4. GB 18584 applicability：Indoor furniture limited-hazard requirement for finished seating materials, applicable to procurement review.；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CF-EXEC-BLK-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CF-EXEC-BLK-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CF-EXEC-BLK-01打开导出工具

页面快速操作

发布采购询价

产品描述

The Black Upholstered Executive Visitor Chair with Cantilever Base presents a formal high-back silhouette designed for meeting and guest settings. Its black smooth upholstery is finished with tailored edge seams, while the three-panel padded back uses vertical stitched channels for a structured executive appearance. Integrated black padded armrests with rounded edges and stitched side panels frame the seat, and the polished chrome-plated steel cantilever base gives the chair a clean, continuous sled profile. Overall dimensions are 620 by 700 by 1020 millimetres, with a fixed seat height suited to conference-table use. Construction combines padded comfort with a supportive internal frame. The seat features a 100 millimetre cushion over a load-bearing shell, with a finished seat cushion thickness of 90 millimetres, 45 kilogram per cubic metre seat foam, and a 12 millimetre molded plywood or composite support board. The back uses an 80 millimetre padded panel over an 8 millimetre molded board or steel-reinforced panel, with finished backrest padding of 70 millimetres, 35 kilogram per cubic metre back foam, and a 240 millimetre lumbar support zone. The 25 millimetre diameter chrome-plated steel tube forms a continuous sled frame, and four integrated polymer or nylon glides are fitted at the runner ends. Functionally, the chair is fixed and non-swivel, with no height adjustment, recline control, or tilt lock. The cantilever runners allow limited fore-aft flex, while the fixed 10-degree back support encourages an upright meeting posture. Armrests are positioned 220 millimetres above the seat for forearm support, and the 540 millimetre clear width between arms supports comfortable seating. The open front sled design permits front or side access, and the glides help the chair move on hard floors while reducing frame contact noise. It is a non-stacking chair intended for daily occupancy up to 8 hours and a recommended user weight capacity of 160 kilograms.

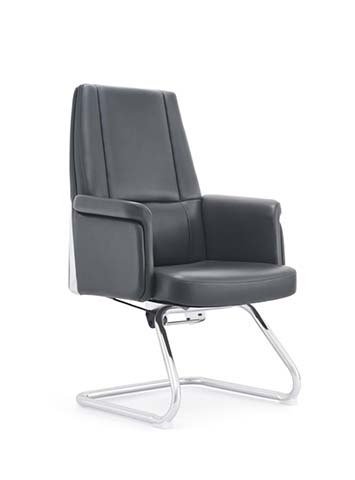

Black Upholstered Executive Visitor Chair with Cantilever Base Specifications
