PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	620 × 680 × 980 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight	16 kg
Recommended occupant load	160 kg
Structural static verification load	730 kg
Frame fatigue reference	100000 cycles
Seating capacity	1 person
Foam indentation hardness	45 kg/m3 polyurethane foam
Foam compression set target	8 percent after 22 hours at 70 degrees C
Back horizontal static load target	136 kg for 1 hour
Color options	1 visible tan color
Warranty target	5 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Tan leather-look upholstered surface with stitched padded cushion
Back upholstery	Tan upholstered tall back with horizontal lumbar seam
Seat cushion foam	80 mm molded polyurethane foam pad
Back cushion foam	60 mm polyurethane foam padding with lumbar pad
Arm pads	Tan upholstered curved arm pads wrapping around vertical supports
Arm support cores	25 mm diameter steel tube beneath upholstered sleeves
Cantilever base	25 mm diameter polished chrome-finish steel tube sled frame
Floor glides	4 polymer or felt-tipped protective glides at runner ends
Seat support board	12 mm molded plywood or hardwood-composite load board under cushion
Back support panel	10 mm formed plywood or steel-reinforced composite back carrier
Frame finish	Mirror polished chrome plating over welded steel tubing
Joint construction	Welded tubular frame with hidden plate fixings under the seat

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Base movement	Fixed cantilever sled base with no swivel bearing
Height adjustment	Fixed 450 mm seat height with no gas lift
Back movement	Fixed 100-degree back angle without tilt mechanism
Arm support	Integrated curved armrests at 670 mm floor height for forearm support during meetings
Entry and exit	Open-front sled frame allows side and front access without casters or protruding mechanisms
Floor protection	4 end glides distribute weight and reduce scratching on hard floors
Stacking capability	Non-stacking upholstered armchair with continuous tall back
Rocking behavior	Slight controlled flex is possible through the cantilever tube, with no lockable recline
Cleaning access	300 mm under-seat clearance enables vacuuming beneath the fixed chair
Seat occupancy orientation	Forward-facing guest or conference orientation with tall lumbar support
Backrest recline angle	100 degrees
Recline Angle / Lock Reference	125° with 3suggested lock positions

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Conference room	Use at boardroom tables where a fixed 450 mm seat height aligns with standard 760 mm desktops
Executive visitor seating	Place opposite an executive desk for short and medium-duration guest meetings
Reception area	Pair two or more chairs with a low table for a coordinated tan-and-chrome visitor setting
Training or interview room	Specify for spaces requiring quiet fixed seating without rolling or swiveling movement
Office touchdown zone	Use beside a compact work surface for temporary laptop or discussion seating
Formal meeting suite	Suitable for clients and managers due to tall back, padded arms, and structured silhouette
Hard-floor interiors	Recommended for wood, tile, or sealed concrete floors when fitted with the four protective glides
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16139:2013 seating strength	Use level 2 non-domestic seating requirements for conference and visitor seating
EN 1022 seating stability	Use for front, rear, and side stability testing of the cantilever chair
EN 12520 seat durability	Use as supporting fatigue and safety verification for contract-grade seating

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1 back static test	Apply a 136 kg back-strength target for commercial fixed-seating acceptance
ANSI/BIFMA e3 chemical limits	Use for optional sustainability and material-emission procurement documentation

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.2 furniture mechanical test	Use for seat and back static-load acceptance procedures on this fixed metal-frame chair
GB/T 10357.3 furniture mechanical test	Use for seat and back fatigue testing appropriate to daily conference seating
GB/T 10357.5 furniture mechanical test	Use for arm downward and horizontal strength verification of the fixed arms
GB 28007 furniture safety	Use as the Chinese furniture safety acceptance reference for laboratory and documentation review
GB 18580 panel emissions	Apply only if plywood or composite substrate is confirmed in the supplier BOM

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 10357.2 furniture mechanical test：Use for seat and back static-load acceptance procedures on this fixed metal-frame chair；
2. GB/T 10357.3 furniture mechanical test：Use for seat and back fatigue testing appropriate to daily conference seating；
3. GB/T 10357.5 furniture mechanical test：Use for arm downward and horizontal strength verification of the fixed arms；
4. GB 28007 furniture safety：Use as the Chinese furniture safety acceptance reference for laboratory and documentation review；
5. GB 18580 panel emissions：Apply only if plywood or composite substrate is confirmed in the supplier BOM；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CF-CAM-TAN-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CF-CAM-TAN-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CF-CAM-TAN-01打开导出工具

页面快速操作

发布采购询价

产品描述

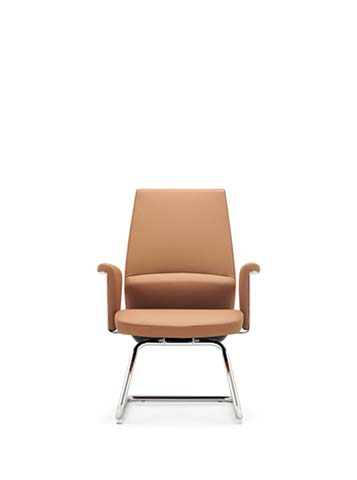

The Tan Upholstered Cantilever Conference Armchair is a fixed-position visitor and meeting chair with a structured, formal silhouette. Its tan leather-look upholstery is paired with a polished chrome-finish steel sled frame, creating a coordinated appearance suited to professional interiors. The tall back includes a horizontal lumbar seam, while the stitched padded seat cushion and integrated curved armrests give the chair a continuous, upholstered look. The open-front cantilever layout allows both front and side access without casters or protruding controls. Model CF-CAM-TAN-01 is supplied unbranded and seats one person. Overall dimensions are 620 by 680 by 980 mm, with a 540 mm clear width between armrests. The seat cushion uses a 90 mm finished thickness over an 80 mm molded polyurethane foam pad and a 12 mm molded plywood or hardwood-composite load board. The tall back has 70 mm padding thickness, built from 60 mm polyurethane foam with a lumbar pad and a 240 mm lumbar support zone. The foam has 45 kg/m3 indentation hardness and a compression set target of 8 percent after 22 hours at 70 degrees Celsius. Curved tan arm pads wrap around 25 mm diameter steel support tubes, and the armrest surface is set at 670 mm from the floor for forearm support during meetings. The frame and cantilever base use 25 mm diameter polished chrome-finish steel tube in a sled configuration. Four polymer or felt-tipped protective glides are fitted at the runner ends to distribute weight and reduce scratching on hard floors. This is a non-stacking chair with a fixed 450 mm seat height, fixed 100-degree back angle, no swivel bearing, no gas lift, and no tilt mechanism. The cantilever form provides a quiet seating solution without rolling movement. Recommended occupant load is 160 kg, net weight is 16 kg, structural static verification load is 730 kg, and the frame fatigue reference is 100000 cycles. The chair is appropriate at boardroom tables, particularly where the fixed seat height aligns with standard 760 mm desktops. It also works opposite an executive desk for guest meetings, in reception areas with a low table, and in training, interview, touchdown, or formal meeting settings where stable, upholstered seating is required. Procurement planning should allow for two cartons per set, 40 minutes of assembly time per chair, 23 kg packaged gross weight, and 0.26 cubic meter carton volume. The reference carton dimensions are 850 by 420 by 720 mm, and indicative loading is 135 sets in a 20GP container at 85 percent space utilization.

Tan Upholstered Cantilever Conference Armchair Specifications
