PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	590 × 620 × 920 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight	12 kg
Recommended user weight	160 kg
Static frame verification load	640 kg
Seat impact durability	100,000 cycles
Backrest cyclic durability	100,000 cycles
Arm downward load	90 kg per arm
Floor runner stability load	160 kg seated user
Number of users	1 person
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Black leather-look surface over padded core, with horizontal rib stitching across the cushion
Back upholstery	Black leather-look padded back panel with seven visible horizontal rib channels
Seat cushion foam	Molded polyurethane foam, 70 mm thick, target density 45 kg/m3
Back cushion foam	Polyurethane padding, 55 mm thick, target density 35 kg/m3
Seat support board	12 mm molded plywood or engineered composite seat pan secured to the frame
Back support panel	8 mm molded plywood or impact-resistant composite back board
Cantilever frame	25 mm diameter bent steel tube with bright chrome-plated finish and continuous sled runners
Arm supports	Integral 25 mm chrome steel loops bent from the side frame and welded to the seat frame
Floor glides	Black non-marking polymer or rubber caps at the four runner contact zones
Upholstery seam	Horizontal stitched rib channels with target seam pitch of 70 mm and bonded polyester thread
Frame welds	Concealed smooth welds at arm-to-seat and cantilever bends with polished weld blending
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Fixed cantilever seating	Continuous sled frame provides controlled vertical flex without tilt, swivel, gas lift, or wheels
Fixed arm support	Tubular arm loops provide stationary forearm support and side-impact protection at 230 mm above seat
Ribbed back ventilation	Horizontal padded channels create recessed lines and reduce a fully flat contact surface
Floor-friendly movement	Continuous runners with end glides allow short repositioning on hard floors without casters
Stacking potential	Sled profile is suitable for up to 4 chairs high only if supplier confirms identical geometry and frame clearance
Cleaning access	Smooth chrome tubes and bonded black upholstery permit wipe-down between seat, back, and arm surfaces
No recline adjustment	Back angle is fixed at an 100 degrees from the seat plane
Entry clearance	Open front without a front crossbar permits side and front approach at meeting tables
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Conference rooms	Use around boardroom and meeting tables where 450 mm fixed seat height matches standard 750 mm desk heights
Visitor seating	Place in executive or reception areas for short-to-medium-duration guest seating
Training rooms	Specify for flexible training layouts because sled runners can be repositioned and may stack after supplier confirmation
Open-plan workstations	Use as a fixed task or collaboration chair where swivel and wheeled movement are not desired
Gallery and showroom areas	Use in commercial consultation spaces due to black upholstery and polished chrome appearance
Hard-floor interiors	Use on tile, wood, laminate, or sealed concrete with non-marking runner glides
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Stability test reference	EN 16139:2013 Level 2 strength, durability, and stability requirements for non-domestic seating
Upholstered furniture flammability	EN 1021cigarette and EN 1021 match ignition tests recommended for upholstered components
Chrome fasteners and hardware	EN 12540 corrosion protection recommended for the chrome-plated steel frame under indoor office conditions

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Office chair durability	ANSI/BIFMA X5.1 general-purpose office chair back, seat, arm, and stability tests recommended for engineering acceptance
Five-legged base provision	ANSI/BIFMA X5.1 base load tests are not directly applicable because this chair uses a cantilever sled base rather than a five-star base

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Formaldehyde emission	GB 18580formaldehyde emission limits recommended if wood-based seat or back boards are used
Leather and coating chemicals	Recommended references: GB 20400

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. Formaldehyde emission：GB 18580formaldehyde emission limits recommended if wood-based seat or back boards are used；
2. Leather and coating chemicals：Recommended references: GB 20400；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · OC-SLED-RIB-BLK-CH

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · OC-SLED-RIB-BLK-CH

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OC-SLED-RIB-BLK-CH打开导出工具

页面快速操作

发布采购询价

产品描述

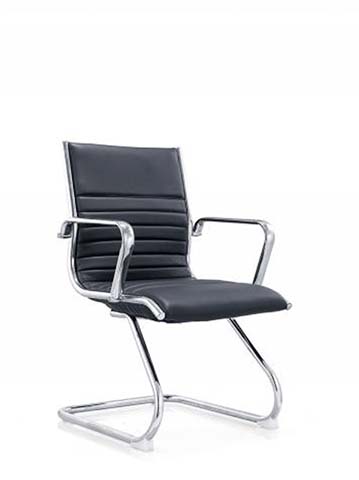

The Black Ribbed Leather-Look Sled-Base Conference Chair presents a structured commercial seating silhouette with a tailored black upholstered seat and back, polished chrome cantilever frame, and integrated fixed arm loops. Horizontal rib stitching gives the cushion a defined surface texture, while the back panel displays seven visible horizontal rib channels. These recessed lines break up a flat contact area and contribute to the chair’s formal meeting-room character. The continuous sled runners create a clean, open base profile, and the tubular chrome arms extend from the side frame for a cohesive visual line. Overall dimensions are 590 by 620 by 920 millimetres, with a 540-millimetre width between armrests. The fixed seat height is suited to standard 750-millimetre conference desks. Construction combines padded support with a bent tubular steel frame. The seat uses a black leather-look surface over a molded polyurethane foam cushion and a molded plywood or engineered composite seat pan secured to the frame. The padded back uses polyurethane padding over a molded plywood or impact-resistant composite board. The 25-millimetre diameter steel frame is bright chrome plated and formed into continuous cantilever runners, with matching steel arm loops welded into the seat frame. Black non-marking polymer or rubber caps are fitted at the four runner contact points. Designed for stationary seating, the chair provides controlled vertical flex through its cantilever frame without tilt, swivel, gas lift, or wheels. The back angle is fixed at 100 degrees from the seat plane, and the arm loops offer stationary forearm support and side protection. The chair can be repositioned short distances on hard floors using its runners and glides. Smooth chrome tubes and bonded black upholstery support straightforward wipe-down cleaning. Stacking to four chairs high is possible only when the supplier confirms matching geometry and frame clearance. It is appropriate for boardrooms, meeting rooms, reception and executive visitor areas, training rooms, open-plan collaboration zones, galleries, and showrooms. It is particularly suitable on tile, wood, laminate, or sealed concrete floors. Procurement teams should note the unbranded model code OC-SLED-RIB-BLK-CH, 12-kilogram net weight, two-carton packaging, 40-minute reference assembly time, and the need to confirm stacking compatibility and exact support-board material before ordering in volume.

Black Ribbed Leather-Look Sled-Base Conference Chair Specifications
