PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	600 × 620 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Recommended user weight	160 kg
Static seat verification load	890 N
Backrest rearward verification load	667 N
Net weight	13.5 kg
Recommended user height	1850 mm
Seating capacity	1 person
Cantilever flex cycles	100000 cycles
Floor point load	40 kg per glide
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Tan polyurethane leather-look fabric over cushioned panel
Back upholstery	Tan continuous upholstered face with subtly curved side profile
Seat cushion foam	80 mm molded polyurethane foam, target density 45 kg/m3
Back cushion foam	60 mm polyurethane padding, target density 35 kg/m3
Internal seat board	12 mm molded plywood or composite load board with steel fixing plates
Internal back board	10 mm curved plywood or molded composite back carrier
Cantilever frame	25 mm chrome-plated welded steel tube with continuous sled sides
Arm pads	Integrated tan padded arm caps mounted over chrome tube supports
Floor glides	4 black non-marking polymer glides inserted at sled contact ends
Frame finish	Mirror polished chrome plating over welded steel, target thickness 8 micrometers
Upholstery seam details	Bound perimeter seams with 7 stitches per 100 mm target pitch
Fasteners	Steel bolts and locking nuts connecting seat and back carriers to frame brackets

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Cantilever movement	Fixed-angle frame provides controlled vertical flex through the tubular steel legs, with no recline mechanism
Arm support	Fixed padded armrests provide forearm support at 670 mm floor height and no height or width adjustment
Floor protection	Four replaceable polymer glides distribute load and reduce scratching on hard floors
Stacking capability	Non-stacking individual chair design due to continuous arm-height cantilever frame
Swivel function	No swivel function; seat and back are rigidly mounted to the stationary sled frame
Entry and exit	Open front sled design allows side and front access without an obstructing front crossbar
Back support	Mid-back panel supports the lumbar and lower thoracic region in an upright meeting posture
Maintenance	Bolted upholstered seat and back modules allow replacement if the supplier uses knock-down fixings
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Carton dimensions	680 x 620 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Conference rooms	Use around 760 mm meeting tables where fixed quiet seating and a uniform executive look are required
Executive visitor seating	Place in front of desks or in management meeting areas for guests and short meetings
Training rooms	Specify in rows for lecture, boardroom or staff-training use with hard-floor glides
Reception areas	Use in pairs beside low tables in corporate lobbies and consulting rooms
Open-plan collaboration zones	Place at project tables for 90 minute work discussions
Commercial interiors	Suitable for projects requiring repeatable, non-swivel side chairs across many rooms
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16139 seating strength	Use Level 2 contract-seating strength, durability and safety requirements for non-domestic chairs
EN 1022 seating stability	Use rearward and sideways stability verification for non-adjustable visitor chairs
EN 12521 furniture safety	Use strength, stability and movement safety requirements for non-domestic seating

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1 chair durability	Use 100000-cycle seat and back durability acceptance target for high-use conference areas

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.2 furniture mechanical test	Applicable standards and test results require confirmation
GB/T 10357.3 furniture durability test	Apply chair seat and back durability test procedures during procurement inspection
GB 28007 furniture safety	Use as a safety acceptance reference for metal children-care and institutional furniture only when project scope applies

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 10357.2 furniture mechanical test：Applicable standards and test results require confirmation；
2. GB/T 10357.3 furniture durability test：Apply chair seat and back durability test procedures during procurement inspection；
3. GB 28007 furniture safety：Use as a safety acceptance reference for metal children-care and institutional furniture only when project scope applies；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CNF-SLED-TAN-CH

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CNF-SLED-TAN-CH

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CNF-SLED-TAN-CH打开导出工具

页面快速操作

发布采购询价

产品描述

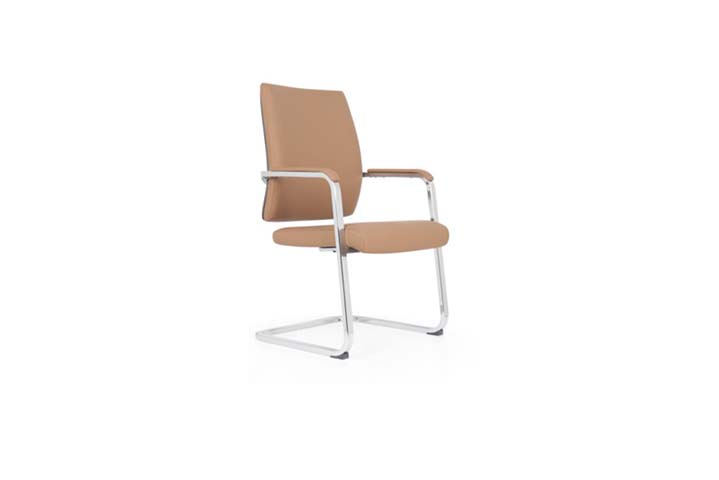

The Tan Upholstered Cantilever Conference Chair with Chrome Sled Frame presents a clean executive profile for meeting and visitor settings. Its tan upholstered seat and mid-height back create a continuous, coordinated appearance, while the subtly curved back side profile adds a tailored visual softness. Polished chrome-plated steel forms the cantilever structure, with continuous sled sides and integrated padded arm caps that reinforce the chair’s structured yet comfortable look. Open at the front, the sled base allows side or forward access without a blocking crossbar. The chair measures 600 by 620 by 1010 mm, offers a 540 mm clear width between armrests, and provides fixed arm support at a 670 mm floor height. It is designed for one occupant and has a non-stacking, stationary form suited to orderly rows or paired arrangements. Construction combines tan polyurethane leather-look fabric over cushioned panels with molded support boards. The seat uses 80 mm molded polyurethane foam with a target density of 45 kg/m3 beneath a 90 mm finished cushion, while the back uses 60 mm polyurethane padding with a target density of 35 kg/m3 and a 70 mm finished pad. The internal seat board is 12 mm molded plywood or composite load board with steel fixing plates, and the back carrier is 10 mm curved plywood or molded composite. The frame is made from 25 mm chrome-plated welded steel tube, with four black non-marking polymer glides at the floor contact points. Functionally, the fixed-angle frame delivers controlled vertical flex through the tubular steel legs and has no recline or swivel mechanism. The mid-back panel includes a 240 mm lumbar support zone and supports the lumbar and lower thoracic region during upright meeting posture. Fixed padded armrests offer forearm support without adjustment, and replaceable polymer glides help distribute load and reduce scratching on hard floors. The cantilever flex is verified through 100000 cycles, and the chair has a 13.5 kg net weight, 160 kg recommended user weight, and recommended user height up to 1850 mm. It is suited to conference rooms with 760 mm meeting tables, executive visitor positions, training rooms arranged in rows, corporate reception areas, consulting rooms, and open-plan collaboration zones. Procurement teams should note the unbranded model CNF-SLED-TAN-CH is supplied as one set in two cartons, with a reference packaged gross weight of 23 kg and reference carton volume of 0.26 cubic meter per set. Reference assembly time is 40 minutes per set. Because the chair does not stack or swivel, it works best where a consistent, fixed side-chair specification is required across multiple commercial rooms.

Tan Upholstered Cantilever Conference Chair with Chrome Sled Frame Specifications
