PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	620 × 680 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight	15 kg
Recommended user weight	160 kg
Static seat proof load target	320 kg
Backrest static pull target	136 kg
Seat cushion indentation load deflection	45 kg
Seat foam density	45 kg/m3
Back foam density	35 kg/m3
Foam rebound	40%
Cantilever cyclic durability target	120,000 cycles
Armrest downward static load target	68 kg per arm

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Gray leather-grain surface with dark perimeter stitching
Backrest upholstery	Gray padded upholstery divided into upper, lumbar, and side support zones
Seat cushion core	Molded polyurethane foam, 80 mm thick at the front rail
Back cushion core	Polyurethane padding, 65 to 80 mm thick by support zone
Arm pads	Gray upholstered or polyurethane pads over rigid supports
Arm support brackets	Polished chrome-finish steel side brackets with black inner gussets
Cantilever base	Continuous chrome-finish welded steel tube with twin side loops
Back support shell	Rigid formed back panel behind upholstered cushions
Seat support plate	Steel under-seat mounting plate connecting cushion frame to cantilever rails
Floor glides	Four black non-marking nylon or rubber inserts at rail contact points
Fasteners	Steel bolt-and-bracket hardware on arm and back side plates
Stitching	Dark contrast thread with a 6 mm seam pitch target

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Fixed cantilever movement	Spring-like sled flex with no swivel, casters, or gas lift
Seating support	Medium-firm padded seat at 450 mm height for short-to-medium meeting duration
Back support	Fixed 100-degree reclined high back with upper shoulder and lower lumbar zones
Arm support	Fixed loop armrests at 680 mm floor height supporting forearms during meetings
Floor protection	Four replaceable black glides spread load on the continuous steel rails
Stacking capability	Non-stacking side-frame design
Upholstery maintenance	Smooth wipe-clean outer face with stitched panel seams for soil removal and service inspection
Recline adjustment	No recline mechanism; back angle is fixed by the side-bracket assembly
Height adjustment	No height adjustment; seat level is fixed by the welded cantilever base
Color option target	1 gray colorway with polished chrome frame as shown
Backrest recline angle	100 degrees from horizontal
Recline Angle / Lock Reference	125° with 3suggested lock positions

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Corporate conference room	Place around boardroom or meeting tables where a fixed 450 mm seat and quiet non-caster base suit planned seating
Executive reception area	Use in front of desks or in visitor zones where the gray upholstery and polished frame provide a formal appearance
Training and interview rooms	Deploy in repeated rows for short-to-medium duration seating with durable 120,000-cycle frame acceptance
Manager office visitor seating	Position one or two chairs facing a desk; fixed arms and high back provide guest support
Government or institutional meeting space	Specify with tested stability and chemical-emission reports for high-occupancy public-sector rooms
Open-office collaboration point	Use at low meeting tables or visitor islands where gliding casters are undesirable
Recommended floor types	Suitable for hard tile, wood, laminate, and low-pile carpet with non-marking glides
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office furniture safety standard	EN 16139, applicable to non-domestic seating strength, durability, and stability
Office visitor chair dimensions	EN 1335applicable to office seating dimensional and measurement terminology
Upholstered furniture flammability	BS EN 1021and BS EN 1021applicable to cigarette and match ignition resistance where specified
Surface coating emissions	EN 16739, applicable as a reference for formaldehyde emission review of panel-containing furniture components

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office chair safety standard	GB/T 28004.1, applicable to fixed office seating strength, durability, and stability acceptance
Furniture mechanical test standard	GB/T 10357.3, applicable to seat and back strength/durability test methods
Upholstered furniture harmful substances	GB 28007, applicable to upholstered furniture chemical-emission procurement limits
Furniture labeling	GB/T 5296.6, applicable to required furniture instructions, material labeling, and use information

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. Office chair safety standard：GB/T 28004.1, applicable to fixed office seating strength, durability, and stability acceptance；
2. Furniture mechanical test standard：GB/T 10357.3, applicable to seat and back strength/durability test methods；
3. Upholstered furniture harmful substances：GB 28007, applicable to upholstered furniture chemical-emission procurement limits；
4. Furniture labeling：GB/T 5296.6, applicable to required furniture instructions, material labeling, and use information；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CNF-GRY-620-CS

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CNF-GRY-620-CS

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CNF-GRY-620-CS打开导出工具

页面快速操作

发布采购询价

产品描述

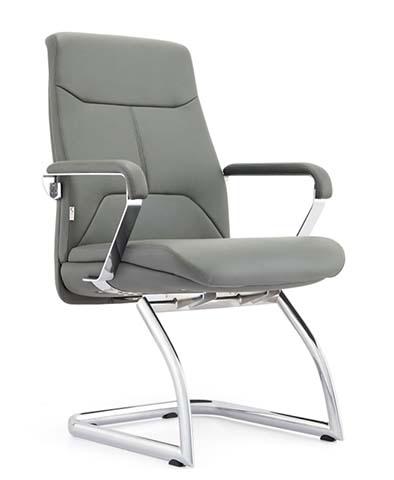

The Gray Padded Cantilever Conference Chair with Fixed Armrests is an unbranded office guest and conference chair, model CNF-GRY-620-CS, designed for formal meeting and visitor settings. Its structured gray upholstery, polished chrome frame, and fixed high-back silhouette create a coordinated appearance suitable for rooms where a calm, professional seating standard is required. Visually, the chair uses a segmented backrest divided into upper shoulder, lumbar, and side support zones, with gray padded upholstery and tailored perimeter stitching. The seat has a gray leather-grain surface with dark edge stitching, while fixed loop armrests run along both sides and are finished with gray upholstered or polyurethane arm pads over rigid supports. Polished chrome-finished steel brackets with black inner gussets connect the armrest structure to the seat and back. The chair rests on a continuous chrome-finish welded steel cantilever base formed with twin side loops. Construction combines upholstered comfort with a rigid load-bearing structure. A molded polyurethane foam seat cushion and polyurethane back padding provide medium-firm support, with a rigid formed back panel behind the cushions and a steel mounting plate beneath the seat linking the cushion frame to the cantilever rails. The steel sled frame delivers fixed cantilever movement through a controlled spring-like flex, without swivel, casters, or a gas lift. Four replaceable black nylon glides protect floor surfaces and spread load across the continuous rails. The fixed back is set at a relaxed 100-degree angle, and the armrests support forearms during meetings. The chair is non-stacking. This model is well suited to corporate boardrooms, conference rooms, executive reception areas, manager-office visitor positions, training and interview rooms, institutional meeting spaces, and open-office collaboration points where rolling chairs are undesirable. The 450 mm seat height and short-to-medium duration support make it appropriate around meeting tables, facing desks, or in repeated row layouts. Procurement teams should note the gray upholstery requires smooth wipe-clean maintenance, with stitched panel seams allowing soil removal and service inspection. Each set ships in two cartons, with reference assembly time of 40 minutes. Specifiers should also account for the fixed arms, non-caster base, non-stacking side-frame design, and the need to request required stability or chemical-emission documentation for public-sector projects.

Gray Padded Cantilever Conference Chair with Fixed Armrests Specifications
