PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	620 × 680 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight	14.5 kg
Recommended user weight	130 kg
Static seat load target	520 kg
Backrest backward static pull target	160 kg
Cantilever flex endurance	100,000 cycles
Floor glide load rating per piece	40 kg
Seating capacity	1 person
Foam indentation hardness	45 kg ILD
Back foam density	30 kg/m3
Seat foam density	38 kg/m3

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Brown smooth polyurethane leather-look surface, 1.2 mm target thickness
Back upholstery	Tailored brown upholstery over a tall formed back panel with visible vertical seam
Seat cushion	Molded polyurethane foam, 80 mm maximum thickness target
Back cushion	Polyurethane padding, 40 mm maximum thickness over a formed support shell
Internal load shell	12 mm molded plywood or equivalent composite support panel
Armrest construction	Upholstered continuous side bolsters integrated with back and seat frame
Cantilever frame	Twin 25 mm chrome-plated cold-rolled steel tube bends
Mounting plate	4 mm powder-coated steel plate connecting seat frame to cantilever wires
Surface finish	Polished chrome plating, 0.025 mm minimum target thickness
Floor contacts	Four injected polymer non-marking glides at the sled contact ends
Seam construction	Single-needle stitched vertical back seam with 7 stitches per 50 mm target
Color count	1 visible brown upholstery color with polished chrome base

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Fixed cantilever movement	Controlled backward flex through the spring action of the U-shaped steel base, with 25 mm maximum rear deflection target
Seating posture	Fixed 8-degree relaxed back angle and 460 mm seat height for conference-table use
Arm support	Integrated wraparound armrests provide continuous forearm and side support at 690 mm floor height
Floor protection	Four polymer glides allow repositioning on hard floors while reducing metal-to-floor contact
Stacking capability	Non-stacking fixed chair due to enclosed upholstered body and cantilever geometry
Swivel function	No swivel mechanism; seat shell is rigidly mounted to the cantilever plate
Height adjustment	No gas lift or height adjustment; fixed visitor-chair seating height
Recline locking	No user-operated recline lock; comfort is supplied by frame flex and fixed back angle
Nursing-table clearance	Sled front opening provides 300 mm under-seat clearance for cleaning and leg movement
Maintenance access	Upholstered surfaces can be wiped clean; glides are replaceable without removing the cantilever frame
Back recline from vertical	8 degrees
Recline Angle / Lock Reference	125° with 3suggested lock positions

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Meeting rooms	Fixed 460 mm seat height supports use at 760 mm conference tables
Executive visitor seating	High 590 mm back and wraparound arms provide a formal guest chair in front of executive desks
Reception areas	Brown upholstery and polished sled base suit professional lobby seating without casters
Training rooms	Cantilever construction offers flexible seating with reduced moving parts compared with task chairs
Home office study	Compact 620 x 680 mm footprint works at a desk or beside a writing table
Boardroom side seating	Non-swiveling design creates orderly placement around conference tables
Open-office touchdown zones	The chair can be pulled into temporary discussion settings and repositioned by glides
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16139 applicability	Suggested strength, durability, and safety reference for non-domestic contract seating
EN 1022 applicability	Suggested stability test reference for determining front, rear, and side overturning resistance
EN 12521 applicability	Applicable standards and test results require confirmation

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1 Seat Test applicability	Suggested static and impact seating-load verification for the shell and cantilever joint

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.2 applicability	Suggested chair mechanical test for seat and back static load verification
GB/T 10357.3 applicability	Suggested chair durability test for repeated seat and back loading
GB/T 3324 applicability	Suggested general wooden furniture dimensional and workmanship reference if a plywood shell is used
GB 18584 applicability	Suggested indoor furniture restricted-substance verification for wood-based components

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 10357.2 applicability：Suggested chair mechanical test for seat and back static load verification；
2. GB/T 10357.3 applicability：Suggested chair durability test for repeated seat and back loading；
3. GB/T 3324 applicability：Suggested general wooden furniture dimensional and workmanship reference if a plywood shell is used；
4. GB 18584 applicability：Suggested indoor furniture restricted-substance verification for wood-based components；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CNT-BR-CSL-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CNT-BR-CSL-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CNT-BR-CSL-01打开导出工具

页面快速操作

发布采购询价

产品描述

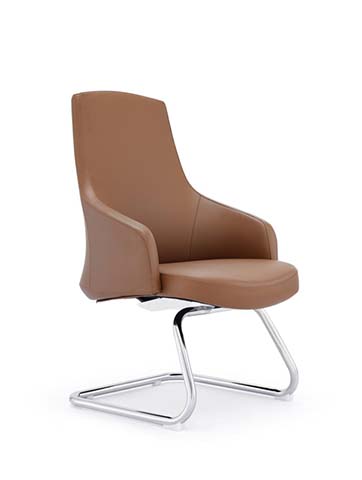

The Contemporary Brown Upholstered Cantilever Visitor Chair combines a structured high-back profile with the clean lines of a polished sled base, creating a formal seating solution for meetings, reception, and executive visitor settings. Its brown polyurethane leather-look upholstery covers a padded seat and tall formed back, with a visible vertical seam adding definition to the backrest. Continuous upholstered side bolsters form integrated wraparound armrests, linking the seat and back visually while supporting the forearms and sides. The chair has a fixed, relaxed posture with an 8-degree back angle and a 460 mm seat height suited to conference-table use. Its overall dimensions are 620 by 680 by 1010 mm, with 540 mm of clear width between the armrests. Construction balances comfort and support. The seat uses molded polyurethane foam with a 90 mm finished cushion thickness, while the backrest includes 70 mm of finished padding over a formed support shell and provides a 240 mm lumbar support zone. Beneath the upholstery is an internal molded plywood or equivalent composite support panel. The cantilever frame is made from twin 25 mm chrome-plated cold-rolled steel tube bends with a polished finish, connected to the seat structure through a powder-coated steel mounting plate. Polymer glides are fitted to the base to reduce metal-to-floor contact and allow repositioning on hard floors. The chair weighs 14.5 kg and is designed for one occupant, with a recommended user weight of 130 kg. Instead of a swivel or gas-lift mechanism, the chair uses the spring action of its U-shaped steel base to provide controlled backward flex, with a maximum rear deflection target of 25 mm. This fixed arrangement supports orderly placement and reduces moving parts compared with adjustable task seating. The chair does not stack, due to its enclosed upholstered body and cantilever geometry. It is appropriate for meeting rooms and boardroom side seating at 760 mm conference tables, executive guest positions in front of desks, professional reception areas, training rooms, and residential home offices or studies. Buyers should plan for a fixed-height, non-swiveling, non-stacking chair and confirm that its brown finish, high-back form, and integrated arms suit the intended interior. Delivery is supplied as one set across two cartons, with assembly time indicated at 40 minutes per set and packaged gross weight listed as 23 kg per set.

Contemporary Brown Upholstered Cantilever Visitor Chair Specifications
