Automatic mm / inch conversion · Core engineering specifications

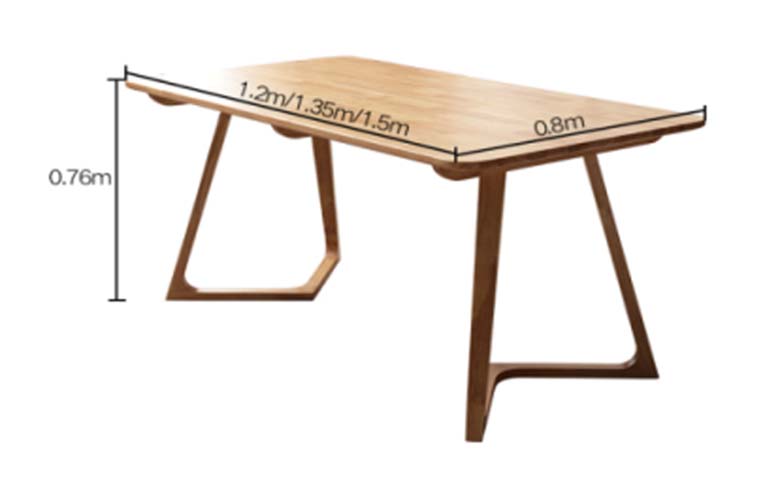

| Overall dimensions (max length variant) | 1500 x 800 x 760 mm | |
|---|---|---|
| Available short length variant | 1200 mm | |
| Available medium length variant | 1350 mm | |
| Tabletop thickness | 40 mm | |
| Underside leg clearance height | 720 mm | |
| Leg frame section thickness | 45 mm | |
| Leg end contact span (longitudinal) | 580 mm | |
| Edge radius (soft rounded corners) | 30 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Static distributed tabletop load | 100 kg | |
|---|---|---|
| Standard seating capacity (max length variant) | 6 people | |
| Net product weight (max length variant) | 48 kg | |
| Finish stain resistance rating | Level 5 | |
| Leg stability wobble deflection | 2 mm | |
| Warranty period (residential use) | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
| Tabletop panel | Solid light oak hardwood planks, edge-glued | |
|---|---|---|
| Trestle leg frames | Solid oak wood matching tabletop material and finish | |
| Tabletop edge profile | Rounded eased edge, sanded smooth | |
| Surface finish | Matte clear lacquer seal, 0.15mm coating thickness | |
| Frame connection hardware | M8 carbon steel hex bolts with threaded inserts | |
| Floor contact pads | 8mm thick non-marking felt pads | |
| Wood moisture content | 10% | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support | |
| Reference Finish / Color Count | Recommended 6top finishes and 3frame colors |
Adjustment / rotation / tilt / mobility / storage features
| Leg configuration | Two symmetric closed-loop splayed trestle bases at table ends | |
|---|---|---|
| Assembly structure | Knockdown flat-pack design, legs attached to tabletop via bolts | |
| Legroom access | Full open underside with no central cross-stretcher obstruction | |
| Surface function | Stain-resistant sealed top suitable for daily dining use | |
| Stability design | Wide splayed leg base distributes weight evenly to prevent tipping | |
| Size option compatibility | Three fixed length sizes available with identical leg structure | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
| Residential dining room | Suitable for small apartment and family dining spaces with 6seat layouts | |
|---|---|---|
| Home office workspace | Dual-use as a writing or study desk with standard 760mm working height | |
| Cafe and casual restaurant | Durable solid wood construction suitable for light commercial food service use | |
| Apartment open plan living | Minimal Nordic silhouette fits modern, Scandinavian and mid-century interiors | |
| Small-space kitchen nook | 800mm narrow depth fits compact dining areas without blocking walkways |
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture – Strength, durability and safety for domestic dining tables | |
|---|---|---|
| EN 13722:2004 | Furniture – Test methods for surface resistance to cold liquids for dining surfaces |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional and structural inspection | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional and structural inspection; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
