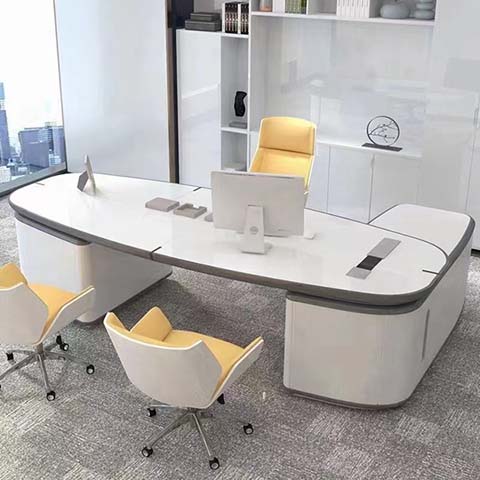

Product supplierModern High-Gloss Boat-Shaped Curved Executive Office Desk with Integrated Side Return, 25mm thick MDF board
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3200 × 2200 × 750 mm | |
|---|---|---|
| Overall footprint | 3200 x 2200 x 750 mm | |
| Main desktop thickness | 50 mm | |
| Dark grey edge trim thickness | 2 mm | |
| Central knee clearance width | 1200 mm | |
| Knee clearance height under main top | 680 mm | |
| Side return work surface depth | 800 mm | |
| Desktop grommet diameter | 50 mm | |
| Left pedestal cabinet width | 800 mm | |
| Right return pedestal width | 1000 mm | |
| Pedestal base height | 680 mm | |
| Rounded corner radius of desktop | 150 mm | |
| Cable management access panel length | 400 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static uniform load capacity | 200 kg | |
|---|---|---|
| Drawer slide operational cycle rating | 50000 cycles | |
| Door hinge operational cycle rating | 100000 cycles | |
| Desk net weight | 220 kg | |
| Recommended maximum user weight for use | 150 kg | |
| High-gloss surface abrasion resistance | 2000 rub cycles | |
| Standard warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | 25mm thick MDF board | |
|---|---|---|
| Desktop edge trim | 2mm thick dark grey ABS edge banding | |
| Pedestal cabinet body | 18mm thick particleboard | |
| Drawer construction | 15mm thick multi-layer engineered wood | |
| Cabinet hardware | Cold-rolled steel slides and soft-close hinges | |
| Cable grommets | ABS plastic with brushed metal finish caps | |
| Pedestal base levelers | Nylon-padded adjustable steel feet | |
| Internal cabinet shelf material | 18mm thick melamine-faced engineered wood | |
| Surface coating | 7-layer UV-cured high-gloss white lacquer | |
| Modesty panel (if fitted) | 15mm thick high-gloss white engineered wood | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Recessed desktop grommets + under-desk cable tray | |
|---|---|---|
| Pedestal storage configuration | Left pedestal holds 2 utility drawers; right pedestal holds 1 hanging file drawer | |
| Drawer lock function | Central locking system secures all pedestal drawers with one key | |
| Side return work surface | Extended right-side surface for additional monitor, printer or document placement | |
| Soft-close drawer mechanism | Drawers close slowly and silently without slamming | |
| Adjustable leveling feet | 15mm height adjustment range per foot | |
| Reversible return configuration | Side return can be specified for left or right side per office layout | |
| Optional integrated power module | Embedded panel supports AC outlets, USB charging and optional wireless charging | |
| Grommet cable retention | Split grommet caps secure cables without removing connectors | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Primary use for CEO, general manager or senior executive daily work and meetings | |
|---|---|---|
| Corporate headquarters workspace | Fits modern high-end office interiors with matching white storage cabinetry | |
| VIP meeting and reception area | Supports small impromptu meetings with 2 visitor seats positioned across the desk | |
| High-end home office | Suitable for luxury residential workspaces with spacious dedicated office rooms | |
| Executive suite matching set | Coordinates with complementary leather executive chairs, visitor chairs and wall bookcases | |
| Open-plan executive pod | Works as a dedicated senior staff workstation in partitioned open office layouts |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural performance | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional safety requirements, applicable to clearance dimensions | |
| EN 13722:2004 | Furniture strength and durability for storage units, applicable to pedestal cabinet performance |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for pedestal drawer and cabinet performance |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk construction and finish quality | |
|---|---|---|
| GB/T 3327-2017 | Performance test methods for office desks, applicable to load and stability verification | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E1 grade required for indoor office use | |
| GB/T 4893.8-2013 | Surface abrasion resistance test method for furniture coatings, applicable to high-gloss finish durability |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk construction and finish quality; 2. GB/T 3327-2017: Performance test methods for office desks, applicable to load and stability verification; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade required for indoor office use; 4. GB/T 4893.8-2013: Surface abrasion resistance test method for furniture coatings, applicable to high-gloss finish durability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
