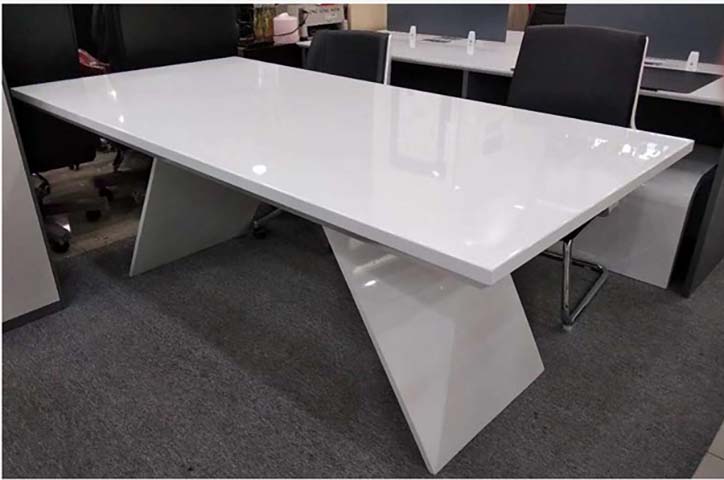

Product supplierGloss White Rectangular Office Conference Table with Angled Panel Supports, 25mm thick MDF substrate with 25mm built-up edge
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1200 × 750 mm | |
|---|---|---|
| Tabletop thickness | 50 mm | |
| Seated knee clearance height | 700 mm | |
| Knee clearance depth under table | 450 mm | |
| Left support panel dimensions | 700 x 600 x 50 mm | |
| Right support panel dimensions | 900 x 700 x 50 mm | |
| Tabletop edge radius | 2 mm | |
| Clear floor space under table center | 1000 mm | |
| Table overhang front/back | 100 mm | |
| Table overhang left/right ends | 300 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 135 kg | |
|---|---|---|
| Distributed tabletop static load capacity | 300 kg | |
| Support panel vertical static load per side | 180 kg | |
| Recommended seating capacity | 8 people | |
| Surface horizontal scratch resistance | 2000 cycles | |
| Floor contact point load rating | 150 kg per support | |
| Wood core moisture content | 12% | |
| Finish dry film thickness | 0.2 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop core | 25mm thick MDF substrate with 25mm built-up edge | |
|---|---|---|
| Tabletop surface finish | High-gloss white UV-cured lacquer | |
| Support panel core | 50mm thick engineered wood panel | |
| Support panel finish | Matching high-gloss white lacquer | |
| Floor contact pads | Non-slip rubber glides | |
| Panel joining hardware | Zinc-plated steel connector bolts and cam locks | |
| Edge banding | Matching high-gloss PVC edge banding | |
| Mounting pilot points | Pre-drilled 10mm depth alignment holes | |
| Internal bracing | 2mm thick steel connecting brackets | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Freestanding installation | No wall fixing required, self-supporting via two offset angled panels | |
|---|---|---|
| Central cable management clearance | Open under-table cavity allows under-table cable tray mounting | |
| Multi-side seating access | Unobstructed perimeter allows chair placement on all four table sides | |
| Surface wipe cleaning | Non-porous high-gloss finish allows cleaning with standard office disinfectant wipes | |
| Static level adjustment | Optional adjustable glides at base of support panels compensate for 10mm floor unevenness | |
| Accessory compatibility | Tabletop supports mounting of monitor arms, tabletop power modules and conference microphones | |
| Edge impact resistance | Built-up 50mm tabletop edge withstands 100mm drop impact of 1kg hard object without edge chipping | |
| Lateral stability | Offset Z-base design resists 150N horizontal side force at tabletop edge without tipping | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of packages | 3 | |
|---|---|---|
| Largest carton dimensions | 2500 x 1300 x 100 mm | |
| Support panel carton dimensions | 950 x 750 x 120 mm | |
| Total shipping gross weight | 155 kg | |
| Total shipping volume | 0.45 CBM | |
| Assembly time | 40 minutes | |
| 20ft GP container loading quantity | 58 units | |
| 40ft HQ container loading quantity | 142 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Small to medium office conference rooms | Seats 8 people for team meetings, client presentations and internal discussions, modern high-gloss finish complements contemporary office interiors | |
|---|---|---|
| Open plan office collaborative zones | Freestanding design allows flexible placement without wall fixing, supports ad-hoc team work and quick project meetings | |
| Executive office meeting areas | Clean minimalist aesthetic pairs with executive desk sets, suitable for small leadership meetings and guest consultations | |
| Training room temporary work surface | Smooth durable surface supports training materials, laptops and presentation equipment, easy to clean between sessions | |
| Co-working space meeting pods | Neutral white finish suits flexible co-working environments, accommodates different user groups without clashing with varied decor | |
| Furniture showroom display | Distinctive angled Z-base design serves as a focal display piece for modern office furniture collections | |
| Corporate training rooms | Smooth durable surface supports training materials, laptops and presentation equipment, easy to clean between consecutive training sessions |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-2:2002 Office furniture - Worktables and desks - Safety requirements | Applicable as safety reference for structural stability, edge radius and load capacity for commercial office use | |
|---|---|---|
| EN 15372:2016 Furniture - Strength, durability and safety - Requirements for non-domestic tables | Applicable as durability reference for commercial conference room use, covering static load and impact resistance | |
| EN 13722:2004 Furniture - Assessment of surface resistance to abrasion | Applicable as reference for high-gloss surface wear performance for high-frequency meeting space use |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.5 Desk and Table Products |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | Applicable as acceptance reference for panel material quality, dimensional tolerance and edge finishing for this wood-based office table | |
|---|---|---|
| GB/T 4893.1-2021 Test method for surface resistance to cold liquids | Applicable as acceptance reference for tabletop stain resistance to common office liquids including coffee, water and cleaning agents | |
| GB/T 4893.8-2013 Test method for surface wear resistance | Applicable as acceptance reference for high-gloss tabletop coating durability under regular office use | |
| GB/T 10357.1-2013 Test of mechanical properties for furniture - Tables | Applicable as acceptance reference for table static load, stability and impact strength performance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: Applicable as acceptance reference for panel material quality, dimensional tolerance and edge finishing for this wood-based office table; 2. GB/T 4893.1-2021 Test method for surface resistance to cold liquids: Applicable as acceptance reference for tabletop stain resistance to common office liquids including coffee, water and cleaning agents; 3. GB/T 4893.8-2013 Test method for surface wear resistance: Applicable as acceptance reference for high-gloss tabletop coating durability under regular office use; 4. GB/T 10357.1-2013 Test of mechanical properties for furniture - Tables: Applicable as acceptance reference for table static load, stability and impact strength performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
