PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2000 × 480 × 450 mm
Extended overall length with side shelf deployed	2600 mm
Under-unit floor clearance	150 mm
Side display shelf dimensions	600 x 400 x 450 mm
Drawer internal dimensions (per compartment)	450 x 400 x 150 mm
Top surface thickness	12 mm
Carcass panel thickness	18 mm
Back panel thickness	5 mm
Base frame tubing diameter	20 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top surface static load capacity	70 kg
Maximum supported TV size	85 in
Drawer slide cycle rating	50000 cycles
Unit net weight	68 kg
Surface abrasion resistance	2000 cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet carcass	18mm MDF with light gray matte lacquer finish
Top surface	12mm dark matte sintered stone
Base frame	Powder-coated black carbon steel sled loop frame
Drawer slides	Stainless steel telescoping soft-close slides
Back panel	5mm hardboard with black finish
Floor protection pads	Non-slip polyethylene plastic feet
Hardware fasteners	Zinc-plated steel knock-down fittings
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Single-side telescoping extension	Left-side display shelf extends 600mm on metal slides for extra display space
Soft-close drawer storage	Four front-facing drawers open with full-extension slides and close silently
Under-base cable management	Open clearance allows routing of AV power and HDMI cables along the floor
Robot vacuum access	150mm under-unit clearance allows standard robotic cleaners to pass under
Wall anchor compatibility	Pre-drilled rear mounting points for anti-tip anchoring to drywall
Heat-resistant top surface	Sintered stone top supports placement of warm AV devices without surface damage
Cable / Vent Opening Reference	80 mm diameter; recommend 4rear cable/vent openings

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room placement	Positioned against wall under wall-mounted TV for media device and decor storage
Small to medium apartment use	Retracted length fits compact spaces, extends for larger rooms and screen sizes
Modern minimalist / light luxury interiors	Two-tone neutral finish and black metal base matches contemporary decor schemes
Combination configuration	Pairs with matching nested round coffee tables for coordinated living room sets
Media and display use	Stores AV components in drawers, displays framed art, plants and decor on top and side shelf

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Safety and performance requirements for domestic storage furniture and kitchen worktops
EN 12521:2015	Strength, durability and safety requirements for domestic seating and storage furniture

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to cabinet carcass performance
GB/T 4897-2015	Particleboard/engineered wood panel requirements for cabinet structural components
GB 18584-2001	Indoor decoration material formaldehyde emission limit for wood furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to cabinet carcass performance;
2. GB/T 4897-2015: Particleboard/engineered wood panel requirements for cabinet structural components;
3. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wood furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TVC-EXT-2T-2000SLD

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TVC-EXT-2T-2000SLD

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TVC-EXT-2T-2000SLDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

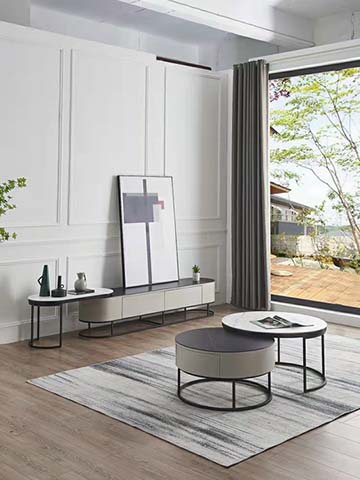

This two-tone extendable low-profile TV media console features a clean, minimalist modern silhouette anchored by a continuous black powder-coated steel sled base, balanced by a light gray matte cabinet body and dark matte sintered stone top for a refined two-tone finish suited to contemporary interiors. The unit maintains a streamlined low profile when retracted, with a flush front elevation interrupted only by seamless drawer fronts, and its left-side telescoping display shelf deploys smoothly to expand available surface space without disrupting the piece’s clean lines. A generous under-unit floor clearance sits below the elevated base, preserving visual lightness while serving functional utility. The console is built for durable daily use: the cabinet carcass uses 18mm MDF with a light gray matte lacquer, finished with 2mm edge banding, paired with a 12mm dark matte sintered stone top and a rigid powder-coated black carbon steel sled loop frame. Drawers operate on stainless steel telescoping soft-close slides, with non-slip polyethylene feet protecting flooring surfaces, zinc-plated steel knock-down fittings securing all major joints via a minimum of two fixing points at each connection, and a 5mm black hardboard back panel closing the unit’s rear. Core functional features support flexible media and living space use: four full-extension soft-close drawers offer enclosed, quiet-access storage for AV components and accessories, while the extendable left side shelf adds dedicated display space for decor, framed pieces, or plants. The heat-resistant sintered stone top safely holds warm AV devices, pre-drilled rear cable openings support tidy routing of power and AV cords, and the open under-base clearance accommodates standard robotic vacuum access while allowing unobstructed cable runs along the floor. Pre-drilled rear anchor points support anti-tip wall mounting for added safety. This console is well suited for residential living rooms, where it can be positioned against a wall beneath wall-mounted televisions; its retracted footprint fits small to medium apartments, while its extended length adapts seamlessly to larger rooms and larger screen sizes. It pairs naturally with matching nested round coffee tables for coordinated living room sets, complementing modern minimalist and light luxury interior schemes. Procurement teams and buyers should note the unit ships unbranded, with assembly requiring 40 minutes per set, delivered across multiple cartons. The knock-down design uses standard cam and bolt fittings for straightforward installation, and weight distribution plans should account for the unit’s static load capacities when planning placement of TVs, media devices, and decorative items. Anti-tip wall anchoring is recommended for all installations, particularly in high-traffic or household settings with children or pets.

Two-Tone Extendable Low-Profile TV Media Console with Black Sled Base Specifications
