PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2200 × 500 × 400 mm
Overall TV console dimensions	2200 x 500 x 400 mm
Internal storage compartment dimensions	500 x 420 x 280 mm per bay
Top panel thickness	25 mm
Carcass board thickness	18 mm
Back panel thickness	5 mm
Plinth base height	50 mm
Cable management opening diameter	60 mm
Coffee table top thickness	40 mm
Coffee table offset support base diameter	350 mm
Maximum compatible TV screen size	86 inch
Carcass Panel Thickness	25 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

TV console net weight	70 kg
TV console top static load capacity	68 kg
Drawer slide cycle rating	50000 cycles
Door hinge cycle rating	80000 cycles
Surface abrasion resistance	2000 revolutions
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Console top panel	E1 grade MDF with matte gray scratch-resistant laminate
Console carcass	E1 grade particle board with matching matte gray laminate
Console plinth base	Powder-coated dark gray steel frame with laminate wrap
Storage door/drawer fronts	Matte gray laminated MDF with soft rounded edges
Back panel	Hardboard with pre-cut cable openings
Internal hardware	Zinc-plated steel hinges, drawer slides, and shelf supports
Coffee table main top	Matte gray engineered wood with rounded thick edge
Coffee table accent section	Smoked black tempered glass inset
Coffee table support base	Powder-coated dark gray cylindrical steel pedestal
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Front storage access	4 front-facing push-to-open storage compartments, no exposed handles
Cable management	Rear removable panels with 60mm cord openings for AV wiring
Surface safety design	Full rounded edge profile on all corners to prevent impact injury
Plinth base stability	Integrated floor-contacting plinth with anti-slip felt pads to prevent floor scuffing
Internal shelf adjustability	3-position adjustable shelf pins for variable media component height
Coffee table surface zoning	Dual-material top with dedicated display and serving zones
Finish maintenance	Stain-resistant matte laminate surface cleanable with dry microfiber cloth
Cable / Vent Opening Reference	80 mm diameter; recommend 4rear cable/vent openings

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room media zone	Positioned below wall-mounted TVs up to 86 inches for media device storage
Modern minimalist interior schemes	Matches monochrome gray and neutral color palettes with rounded organic silhouettes
Open-plan apartment living spaces	Low-profile form avoids blocking sight lines across open floor plans
Family household use	Rounded edges and stable plinth base reduce child injury risk during daily use
Small to medium lounge spaces	Compact depth and oval form optimize floor space compared to rectangular cabinets

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 312:2010	Particle board performance requirements for structural furniture components
EN 12521:2015	Safety, strength and durability requirements for domestic storage furniture
EN 14749:2016	Safety requirements for kitchen and domestic storage units and worktops

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to engineered wood cabinet construction
GB 18580-2017	Formaldehyde emission limits for wood-based panels, E1 grade compliance recommended
GB/T 4893.8-2013	Surface wear resistance test for furniture finishes, applicable to laminate top panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to engineered wood cabinet construction;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade compliance recommended;
3. GB/T 4893.8-2013: Surface wear resistance test for furniture finishes, applicable to laminate top panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MC-OVAL-GRY-2200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MC-OVAL-GRY-2200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MC-OVAL-GRY-2200Open Export Tool

Quick Actions

Post an RFQ

Product Description

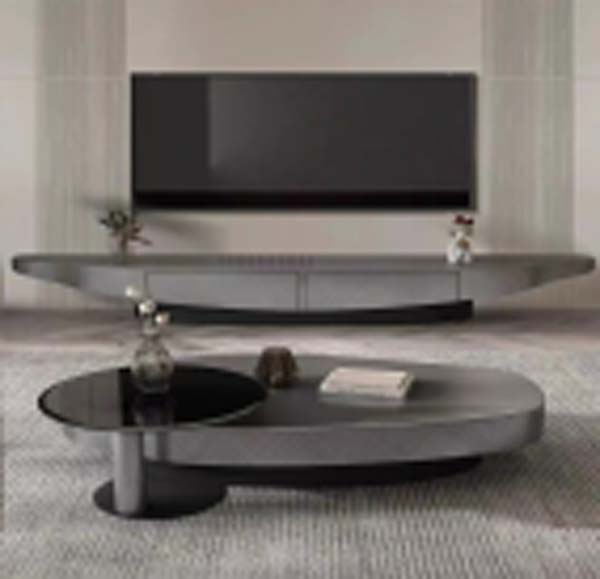

The Matte Gray Oval Low-Profile TV Media Console with Matching Oval Coffee Table is a cohesive modern minimalist living room furniture set designed for clean, unobtrusive layout integration. Both pieces feature soft rounded edge profiles and a uniform matte gray finish, creating a streamlined organic silhouette that aligns with contemporary neutral and monochrome interior schemes. The TV console rests on an integrated plinth base that sits flush with the floor, while the matching coffee table sits atop a cylindrical steel pedestal to complement the set’s low-profile form, which avoids blocking cross-room sight lines in open-plan spaces. The console is constructed from graded wood products with durable matte laminate surfacing: its 25 mm thick top uses E1 grade MDF with scratch-resistant matte gray laminate, the main carcass uses 18 mm E1 grade particle board with matching laminate, and the 50 mm tall plinth base is a powder-coated dark gray steel frame wrapped in matching laminate. All storage fronts use laminated MDF with rounded edges, while internal hardware is zinc-plated steel, and the back panel is hardboard with pre-cut cable openings. The matching coffee table has a primary engineered wood top with thick rounded edges, complemented by an optional smoked black tempered glass inset, supported by a powder-coated dark gray steel pedestal. Practical functionality centers on media organization and family-friendly use: the console has four push-to-open front storage bays with no exposed handles, fitted with 3-position adjustable shelves to accommodate varying media component heights. Rear removable panels include 60 mm cable openings for tidy AV wiring, and the plinth base is fitted with anti-slip felt pads to prevent floor scuffing. Full rounded edges across both pieces reduce impact injury risk for households with children. The coffee table’s dual-material top creates distinct zones for display and everyday serving, and the stain-resistant matte laminate finish cleans easily with a dry microfiber cloth. Hardware is rated for extended regular use, with hinges supporting 80000 open-close cycles, drawer slides supporting 50000 cycles with a 45 kg per pair load capacity, each shelf holding 30 kg of distributed weight, and the console top supporting 68 kg of static load. This set is suited for residential living room media zones positioned below wall-mounted TVs up to 86 inches, open-plan apartment spaces, small to medium lounges, and family households prioritizing child-safe design. For procurement, note the set ships across multiple cartons with a total packaged gross weight of 100 kg, requires 40 minutes of assembly per set, and is sold as an unbranded unit under model MC-OVAL-GRY-2200. Select the optional tempered glass top for the coffee table if a mixed-material surface is preferred for display use.

Matte Gray Oval Low-Profile TV Media Console with Matching Oval Coffee Table Specifications
