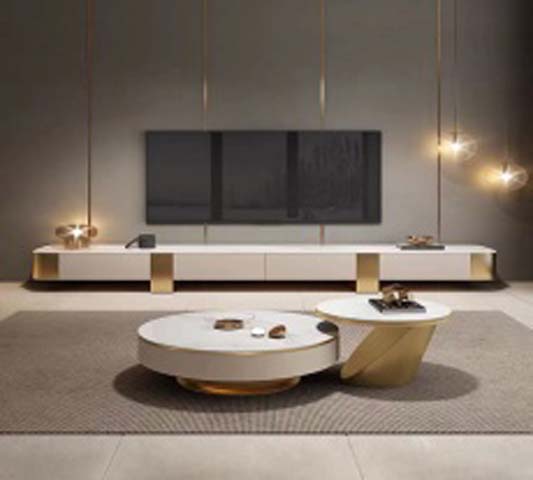

Product supplierModern Luxury White and Gold Flush-Drawer TV Media Console with Rounded Corners, 18mm polished white sintered stone slab
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 400 × 320 mm | |
|---|---|---|
| Top panel thickness | 18 mm | |
| Carcass side panel thickness | 18 mm | |
| Back panel thickness | 9 mm | |
| Drawer internal dimensions | 520 x 330 x 120 mm per drawer | |
| Plinth base height | 40 mm | |
| Gold vertical accent panel width | 80 mm | |
| Corner radius | 30 mm | |
| Floor clearance under plinth | 10 mm | |
| Cable management opening diameter | 60 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Top surface static load capacity | 150 kg | |
|---|---|---|
| Maximum supported TV screen size | 85 in | |
| Total unit net weight | 50 kg | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Surface scratch resistance | 2H pencil hardness | |
| Recommended weight for top-placed media devices | 80 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Top surface | 18mm polished white sintered stone slab | |
|---|---|---|
| Main carcass | E0/ENF grade engineered wood multi-layer board | |
| Vertical support accents | 1.2mm thick brushed gold stainless steel | |
| Base plinth | Powder-coated dark brown/black engineered wood trim | |
| Drawer slides | Cold-rolled steel full-extension silent soft-close slides | |
| Back panel | 9mm thick engineered wood with pre-cut cable grommets | |
| Internal drawer bottoms | 5mm thick hardboard | |
| Edge banding | 1mm thick PVC edge matching white finish | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 4 equal-width flush-front enclosed drawers | |
|---|---|---|
| Drawer operation | Push-to-open soft-close mechanism | |
| Cable management | Rear dual 60mm diameter cable grommets | |
| Ventilation design | 20mm rear gap along carcass top edge | |
| Surface finish | High-gloss non-porous easy-clean top | |
| Installation type | Floor-standing freestanding placement | |
| Leveling adjustment | 4 adjustable feet under plinth base | |
| Cable / Vent Opening Reference | 80 mm diameter; recommend 4rear cable/vent openings |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Modern residential living rooms | |
|---|---|---|
| Secondary application space | Open-plan apartment lounge areas | |
| Target user group | Contemporary luxury home decor consumers | |
| Recommended pairing | Low-pile area rugs and modular upholstered sofas | |
| Placement requirement | Positioned 100 mm from wall | |
| Styling compatibility | Neutral gray, beige or taupe wall finishes |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Furniture safety | EN 14749:2016 | |
|---|---|---|
| Formaldehyde emission | EN 13986:2004+A1:2015 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Board formaldehyde emission | GB/T 18580 | |
|---|---|---|
| Furniture mechanical performance | GB/T 10357.5 | |
| Surface coating performance | GB/T 4893.4 |
Standardized tender description text
This product must meet the following technical requirements: 1. Board formaldehyde emission: GB/T 18580; 2. Furniture mechanical performance: GB/T 10357.5; 3. Surface coating performance: GB/T 4893.4; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
