Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1800 x 900 x 760 mm | |
|---|---|---|
| Tabletop thickness | 30 mm | |
| Corner radius | 50 mm | |
| Leg frame wall thickness | 40 mm | |
| Under-table knee clearance height | 710 mm | |
| Trestle base footprint width | 500 mm | |
| Trestle base longitudinal depth | 600 mm | |
| Edge clearance between trestle units | 1200 mm | |
| Floor contact pad size | 40 x 100 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Net weight | 70 kg | |
|---|---|---|
| Distributed static top load | 100 kg | |
| Seating capacity | 6 diners | |
| Finish abrasion resistance | 4000 cycles | |
| Wood moisture content | 10% | |
| Warranty period | 2 years | |
| Color variant count | 1 | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery

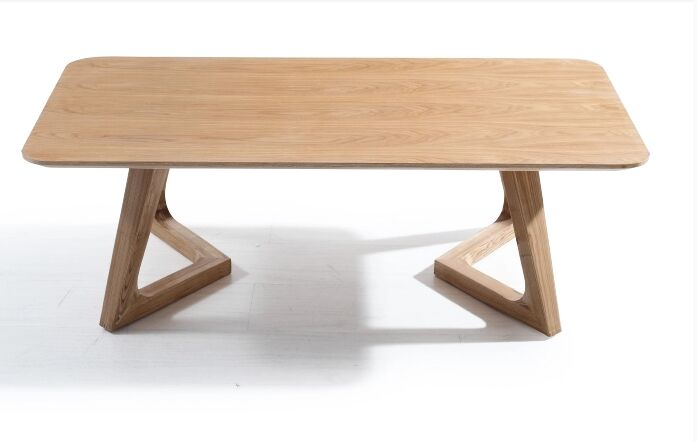

| Tabletop construction | Grade A solid oak planks, edge glued, uniform grain pattern | |
|---|---|---|
| Tabletop finish | Matt clear lacquer, 0.15mm coating thickness | |
| Trestle base frame | Solid oak engineered open wishbone geometry, mitered joints | |
| Joinery hardware | 8mm steel confirmat screws with wood dowel alignment | |
| Floor protection pads | Felt pads affixed to all base contact points | |
| Edge profile | Bullnose rounded edge, 3mm radius profile | |
| Wood finish treatment | UV-cured clear topcoat, stain-resistant | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support | |
| Reference Finish / Color Count | Recommended 6top finishes and 3frame colors |
Adjustment / rotation / tilt / mobility / storage features
| Seating access | Unobstructed open understructure allows seating on all four sides | |
|---|---|---|
| Assembly requirement | Knock-down flat pack assembly, base attached to top with included hardware | |
| Surface stability | Dual trestle base design eliminates wobble on level floors | |
| Surface maintenance | Non-porous lacquer finish allows wipe-clean of food and liquid spills | |
| Floor protection | Felt contact pads prevent scuffing on hardwood and tile flooring | |
| Weight distribution | Wide angled trestle feet spread load evenly to avoid floor indentation | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
| Residential dining room | Suitable for 6-person daily meals and casual gatherings in modern homes | |
|---|---|---|
| Scandinavian style interiors | Complements light wood, minimalist and Japandi design schemes | |
| Open plan kitchen diners | Open trestle base maintains visual lightness in compact open spaces | |
| Small commercial cafe spaces | Durable enough for light commercial cafe and co-working dining use | |
| Apartment living spaces | Flat pack packaging allows easy transport to multi-story residential units |
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture strength, durability and safety for domestic dining tables | |
|---|---|---|
| EN 13722:2004 | Test methods for surface finishes of wooden furniture |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional and safety checks | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wood furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and safety checks; 2. GB 18584-2001: Indoor decoration material limit of harmful substances for wood furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
