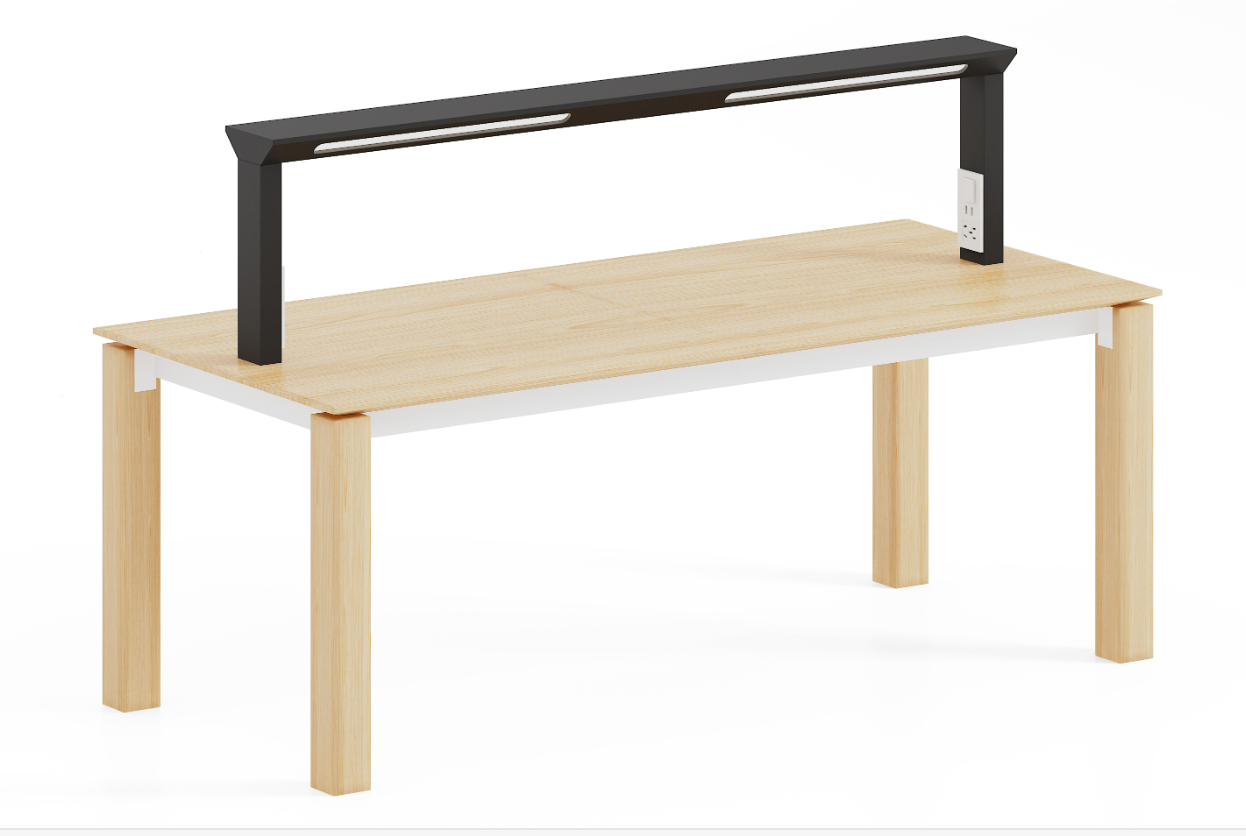

Product supplierSingle Workstation Desk with Integrated Overhead Light and Power Module, 25mm thick E0-grade particleboard with light oak veneer, matte UV coating
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1680 × 700 × 1300 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 100 kg | |
|---|---|---|
| Integrated LED task light output | 800 lm | |
| Product net weight | 42 kg | |
| Power module rated current | 10 A | |
| Under-desk knee clearance width | 1480 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core and finish | 25mm thick E0-grade particleboard with light oak veneer, matte UV coating | |
|---|---|---|
| Desk legs | Solid beech wood with natural clear matte finish, square profile | |
| Overhead frame and light housing | 1.2mm thick powder-coated matte black steel, welded corner joints | |
| Under-desk support apron | 1.0mm thick powder-coated white steel, fixed screw connection to desktop underside | |
| LED light diffuser | Frosted polycarbonate lens, edge-lit strip design | |
| Power module housing | Flame-retardant white ABS plastic, integrated switch and AC outlets | |
| Connection hardware | Zinc-plated steel screws and corner brackets, anti-loosening design | |
| Foot pads | Adjustable PE plastic glides, 10mm height adjustment range | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated overhead task lighting | Two linear LED strips provide glare-free diffuse illumination across the full desktop, operated by integrated rocker switch | |
|---|---|---|
| Desktop power access | Right-side power module includes 1 switch, 2 AC power outlets for laptop and peripheral charging | |
| Fixed-height work surface | 750mm working height optimized for standard ergonomic office chairs with 480 mm seat height | |
| Under-desk cable routing | Open under-desk space allows cable drops from desktop to floor outlets, no integrated cable tray included | |
| Floor leveling adjustment | Each leg has a screw-in adjustable glide to compensate for 10mm of floor unevenness | |
| Knockdown assembly | Components ship flat for on-site assembly with included hex key and hardware, no special tools required | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office single workstations | Provides dedicated individual workspace with built-in lighting to reduce overhead lighting dependency | |
|---|---|---|
| Home office workspaces | Compact footprint and integrated power/light suit compact home study rooms | |
| Design studio task work areas | Even overhead lighting and large desktop suit detailed drawing or design work | |
| Co-working space dedicated desks | Fixed structure and integrated utilities support daily use by rotating co-working members | |
| Educational lab or study desks | Stable work surface and built-in power suit computer-based learning or lab tasks |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applies to dimensional, safety and strength requirements for office work desks | |
|---|---|---|
| EN 60598-2-25:2013 | Applies to safety requirements for lighting integrated into furniture |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Applies to desk strength, durability and stability testing requirements for office desking |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3326-2016 | Applies to dimensional and structural tolerance requirements for office desks | |
|---|---|---|
| GB/T 3324-2017 | Applies to general technical requirements for wooden furniture surface finish and stability | |
| GB 7000.204-2008 | Applies to safety requirements for integrated furniture-mounted task lighting |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applies to dimensional and structural tolerance requirements for office desks; 2. GB/T 3324-2017: Applies to general technical requirements for wooden furniture surface finish and stability; 3. GB 7000.204-2008: Applies to safety requirements for integrated furniture-mounted task lighting; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
