Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

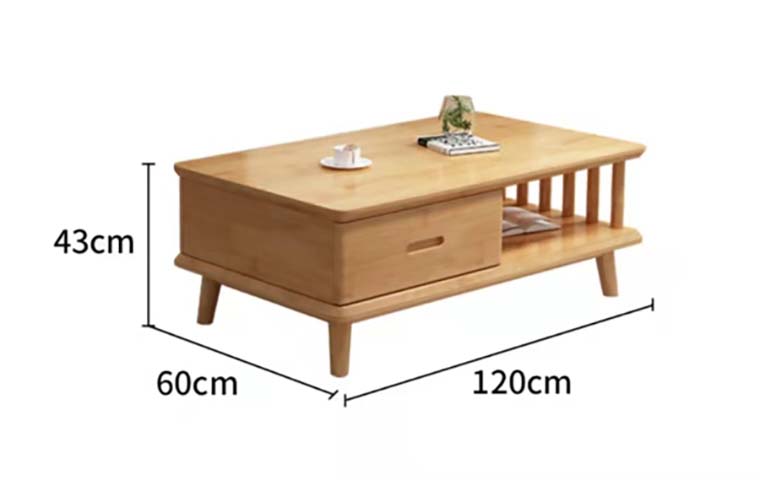

| Overall dimensions (W × D × H) | 1200 × 600 × 430 mm | |
|---|---|---|
| Tabletop thickness | 30 mm | |
| Drawer internal dimensions | 550 x 350 x 100 mm | |
| Lower open shelf usable dimensions | 600 x 500 x 200 mm | |
| Slat rail height on open shelf | 120 mm | |
| Leg top section diameter | 50 mm | |
| Floor clearance under lower shelf | 120 mm | |
| Drawer front panel thickness | 20 mm | |
| Rounded tabletop edge radius | 15 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop distributed static load | 50 kg | |
|---|---|---|
| Lower shelf static load | 25 kg | |
| Drawer maximum static load | 10 kg | |
| Product net weight | 28 kg | |
| Recommended number of users | 4 | |
| Surface finish abrasion resistance | 400 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop panel | Solid light hardwood with clear natural matte finish | |
|---|---|---|
| Support legs | Tapered solid hardwood with anti-slip floor glides | |
| Drawer body | Solid hardwood panels with recessed integrated pull handle | |
| Lower shelf panel | Solid hardwood flat panel with vertical wood slat railing | |
| Drawer slides | Cold-rolled steel side-mounted drawer slides | |
| Frame connecting hardware | Zinc-plated steel KD (knock-down) bolts and cam locks | |
| Surface coating | Water-based clear wood lacquer with low VOC formulation | |
| Anti-slip leg pads | Non-marking PVC floor protection pads | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Drawer storage | Single left-side drawer with recessed pull, slides out fully for concealed small item storage | |
|---|---|---|
| Open shelf storage | Right-side lower open shelf with vertical slat railing, holds books, magazines and decor without falling | |
| Knock-down assembly | Legs and main body ship flat, assembled with included hardware without specialized tools | |
| Surface use | Smooth rounded-edge top supports tea sets, reading materials and decorative items at standard sofa arm height | |
| Floor protection | Non-marking glides on leg bases prevent hard floor scratches and allow minor position adjustment | |
| Edge safety | All exposed corners and edges are rounded to reduce impact injury risk | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room center placement | Positioned in front of 3-seater sofas for tea service, reading and decor display | |
|---|---|---|
| Small apartment living spaces | Compact 1200mm footprint suits studios and small living areas without excessive space occupation | |
| Japanese/Nordic style interiors | Light natural wood finish and tapered legs complement minimalist, Scandinavian and wabi-sabi decor schemes | |
| Casual lounge areas | Usable in office break rooms or rental properties for daily beverage and reading material placement |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture – Strength, durability and safety for domestic tables, applicable for structural performance verification |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional and structural acceptance | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in interior decoration materials wooden furniture, applicable for formaldehyde emission testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional and structural acceptance; 2. GB 18584-2001: Limit of harmful substances in interior decoration materials wooden furniture, applicable for formaldehyde emission testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
