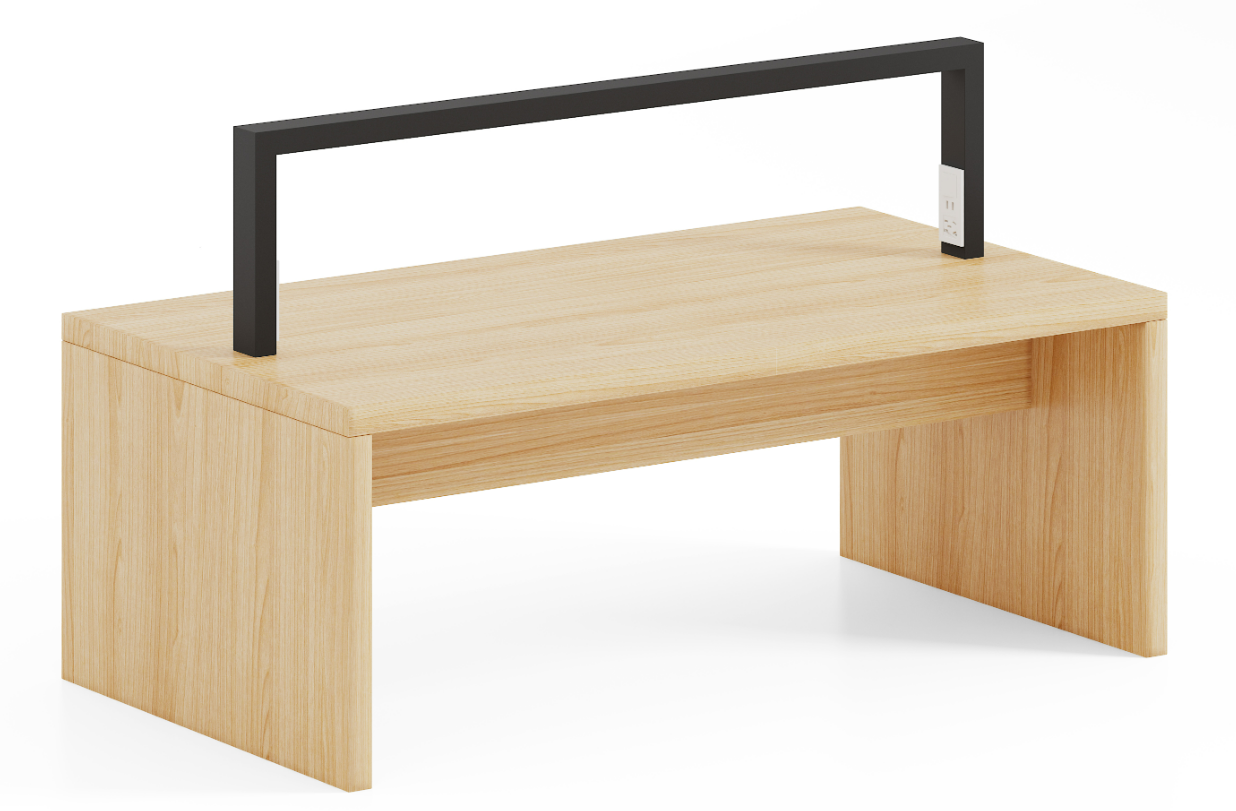

Product supplierLight Oak Single-Person Office Workstation Desk with Overhead Power Gantry, 18mm MDF core with light oak veneer
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1600 × 800 × 1255 mm | |
|---|---|---|
| Seated worksurface height | 750 mm | |
| Desktop panel thickness | 25 mm | |
| Panel leg thickness | 50 mm | |
| Central knee clearance width | 1000 mm | |
| Knee clearance height under desktop | 700 mm | |
| Overhead gantry tube cross-section | 40 x 40 mm | |
| Power module face size | 86 x 86 mm | |
| Edge band thickness | 2 mm | |
| Overhead gantry clear height above desktop | 505 mm | |
| Desktop usable depth between gantry and front edge | 700 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static distributed load capacity | 100 kg | |
|---|---|---|
| Integrated power module rated load | 2500 W | |
| Product net weight | 68 kg | |
| Recommended user weight capacity | 136 kg | |
| Surface scratch resistance | 3000 cycles | |
| Surface heat resistance | 120 °C | |
| Warranty period | 5 years | |
| Leveler adjustment range | 10 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worksurface core | 18mm MDF core with light oak veneer | |
|---|---|---|
| Overhead gantry frame | 1.5mm thick square steel tubing with matte black powder coat | |
| End panel legs | 50mm thick engineered wood panels with matching light oak veneer | |
| Edge trim | 2mm thick ABS impact-resistant edging matching oak finish | |
| Power module housing | Flame-retardant white PC/ABS plastic | |
| Leveling feet | Reinforced nylon base with M8 steel threaded studs | |
| Fasteners | Steel-to-steel zinc-plated connecting hardware | |
| Internal modesty rail | 25mm thick oak-veneer engineered wood rail | |
| Surface finish | Low-sheen matte polyurethane coating on wood surfaces | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated power supply | 1 duplex AC outlet + 2 USB-A charging ports on right gantry post | |
|---|---|---|
| Cable routing | Hidden internal channel inside gantry posts for power cord concealment | |
| Floor leveling | 4 adjustable nylon glides at panel leg bases for uneven floor correction | |
| Overhead gantry mounting | Fixed steel gantry supports desk accessories, lighting or divider screens | |
| Seated work access | Open central knee bay allows unobstructed chair entry and leg movement | |
| Surface maintenance | Stain-resistant matte finish allows wipe-cleaning with standard office cleaners | |
| Assembly type | Knock-down flat-pack assembly with cam-lock and bolt connections | |
| Free-standing installation | No wall mounting required, stable placement via panel leg footprint | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office workstations | Suitable for individual seated work with integrated power for device charging | |
|---|---|---|
| Home office spaces | Minimalist light oak finish fits modern residential workspace interiors | |
| Coworking shared spaces | Fixed-height durable design supports high-frequency daily use by multiple users | |
| Executive private offices | Clean panel-leg aesthetic pairs with light wood office storage furniture | |
| Studio and creative workspaces | Wide desktop supports monitors, drawing tablets and creative work materials | |
| Small business reception work areas | Compact footprint fits behind low reception partitions for staff use |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables – safety and strength requirements for commercial desks | |
|---|---|---|
| EN 527-2:2016 | Office worktables – dimensional ergonomic requirements for seated work | |
| EN 61558-2-16:2021 | Safety standard for power supply modules integrated into furniture |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products – standard for strength, durability and structural integrity | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for low-emission commercial office furniture |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to desktops and wood panels | |
|---|---|---|
| GB/T 24021-2001 | Environmental labeling requirements for low-VOC office furniture, recommended for procurement | |
| GB 2099.1-2021 | Safety standard for integrated AC power outlets used in furniture applications | |
| GB/T 4897.3-2015 | Performance standard for particleboard/MDF used in furniture structural components |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to desktops and wood panels; 2. GB/T 24021-2001: Environmental labeling requirements for low-VOC office furniture, recommended for procurement; 3. GB 2099.1-2021: Safety standard for integrated AC power outlets used in furniture applications; 4. GB/T 4897.3-2015: Performance standard for particleboard/MDF used in furniture structural components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
