PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 400 × 1050 mm
Tabletop thickness	50 mm
Leg diameter at floor contact	40 mm
Footrest height from floor	250 mm
Leg outward splay from table edge	30 mm
Tabletop corner radius	30 mm
Underside knee clearance height	750 mm
Footrest stretcher width	60 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Tabletop static load capacity	100 kg
Seating capacity	4 persons
Unit net weight	32 kg
Finish scratch resistance	3000 cycles
Floor load per leg contact point	10 kg
Warranty period	365 days
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop	Solid hardwood with natural oil finish
Support legs	Solid hardwood tapered profile
Footrest stretcher	Solid hardwood cross member
Surface finish	Matte clear wood sealer
Assembly hardware	Zinc-plated steel bolts and dowels
Floor contact pads	Non-slip felt pads
Joinery blocks	Solid wood corner braces
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Fixed non-adjustable 1050mm bar height
Foot support	Full-length integrated wood footrest
Placement adaptability	Narrow 400mm depth
Edge protection	Rounded tabletop corners
Floor protection	Felt pads on all leg bases
Assembly requirement	Knock-down leg attachment
Surface usability	Smooth non-porous finish
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room behind-sofa placement	Narrow profile for serving drinks and snacks without blocking walkways
Against-wall home bar use	1050mm height for standing or stool-seated casual drinking
Balcony casual dining area	Solid wood weather-sealed finish suitable for covered outdoor balcony use
Open-plan workspace divider	Narrow long form to softly zone living and work areas
Entryway console bar	Height supports placing keys, bags and decorative items when stowed against entry walls

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12521:2015	Furniture - Strength, durability and safety for domestic tables
EN 1730:2012	Furniture - Tables - Test methods for strength and stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture
GB 18584-2001	Indoor decorating and refurbishing materials limit of harmful substances
GB/T 4893.4-2013	Test of surface coatings of furniture - Determination of adhesion

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture;
2. GB 18584-2001: Indoor decorating and refurbishing materials limit of harmful substances;
3. GB/T 4893.4-2013: Test of surface coatings of furniture - Determination of adhesion;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BT-SW-NARROW-1600

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BT-SW-NARROW-1600

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BT-SW-NARROW-1600Open Export Tool

Quick Actions

Post an RFQ

Product Description

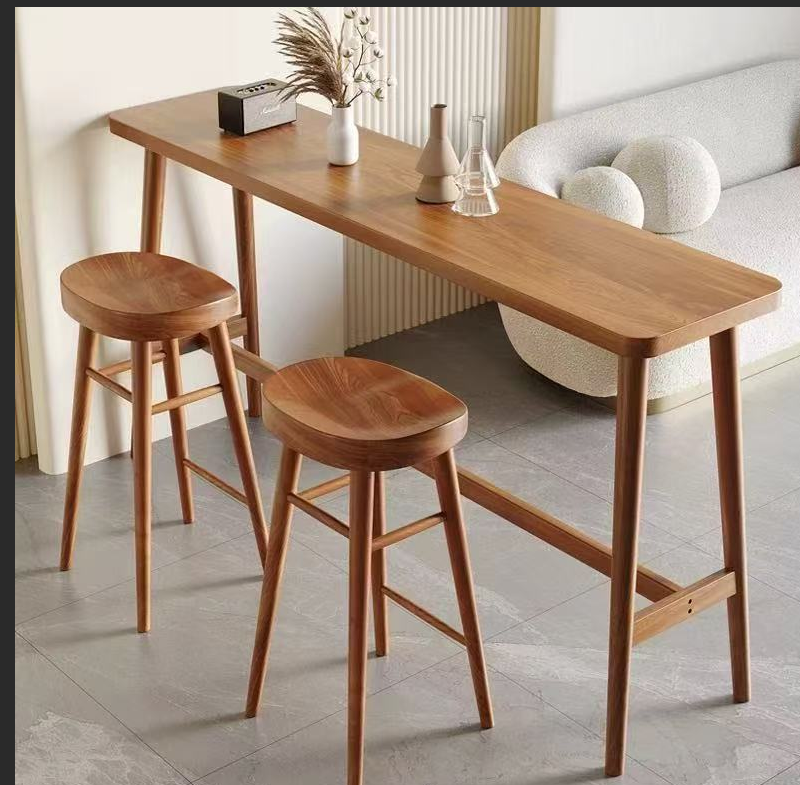

This solid wood narrow console bar table (model BT-SW-NARROW-1600, unbranded) is a console-height public furniture piece blending minimalist modern form with functional versatility. Its linear, narrow silhouette features a 1600mm long tabletop finished with smooth, rounded 30mm radius corners that eliminate sharp edge hazards, supported by tapered solid hardwood legs splayed 30mm outward from the table edge for stable visual balance. A full-length integrated solid wood footrest stretcher runs continuously along the table base, positioned 250mm from the floor, creating a cohesive, uncluttered visual profile suited to streamlined spatial layouts. The unit uses 100% solid hardwood for all primary structural components, including the 50mm thick tabletop, tapered support legs, and integrated footrest cross member, finished with a natural matte clear wood sealer and natural oil topcoat that delivers a smooth, non-porous, scratch-resistant surface tested to 3000 abrasion cycles. Structural integrity is reinforced with solid wood corner brace joinery blocks, secured by zinc-plated steel bolts and wooden dowels, with at least two fixing points at every major joint using M6 to M10 connectors. All leg bases are fitted with non-slip felt pads to protect hard flooring surfaces from scuffs and indentation. The table offers a fixed 1050mm bar height with 750mm of underside knee clearance, supporting a 100kg static tabletop load and comfortable seating for four people. Its 400mm narrow depth enables flexible placement across a range of spaces: it fits neatly behind living room sofas to hold drinks and snacks without obstructing walkways, sits flush against walls for home bar setups accommodating standing use or stool seating, functions as a casual dining surface in covered outdoor balconies thanks to its weather-sealed finish, acts as a soft spatial divider in open-plan workspaces to separate living and work zones, and serves as an entryway console for holding keys, bags, and decorative items. Procurement teams should note the product ships knock-down across two cartons per set, with a 40-minute assembly time per unit. Six finish options are available to match varied interior schemes, and the product comes with a 365-day warranty. Each unit weighs 32kg net, with a packaged gross weight of 120kg and 0.8 cubic meter packaging volume per set, and distributes floor load at 10kg per leg contact point for compatibility with most standard flooring types.

Solid Wood Narrow Console Bar Table with Full-Length Footrest Specifications
