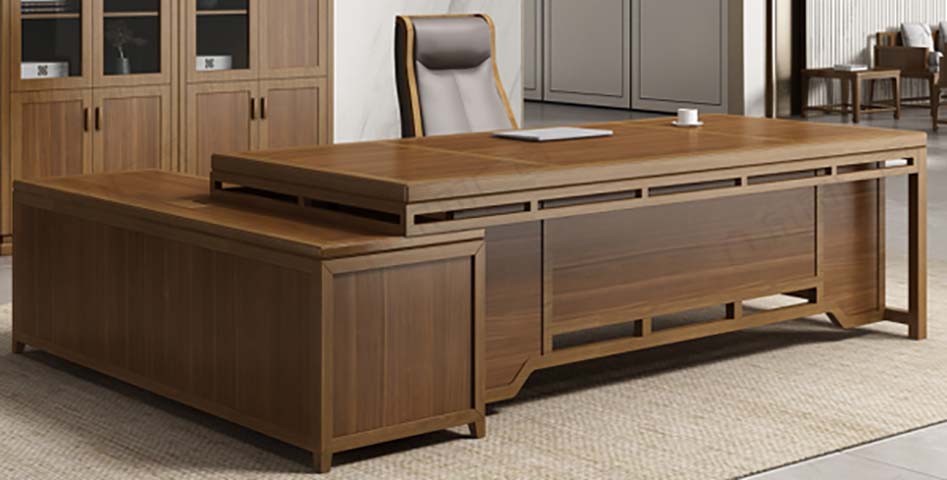

Product supplierL-Shaped New Chinese Style Walnut Finish Executive Desk with Left Side Return Cabinet, E1-grade high-density fiberboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 2150 × 760 mm | |
|---|---|---|
| Main worktop depth | 1150 mm | |
| Left side return dimensions | 1200 x 400 x 630 mm | |
| Worktop total thickness | 50 mm | |
| Core panel substrate thickness | 25 mm | |
| Seated knee clearance height | 620 mm | |
| Knee clearance width under main top | 1400 mm | |
| Leg floor clearance height | 120 mm | |
| Cable grommet diameter | 80 mm | |
| Solid wood edge band thickness | 2 mm | |
| Slatted modesty panel height | 480 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop static load capacity | 200 kg | |
|---|---|---|
| Drawer slide rated load | 45 kg | |
| Drawer slide cycle life | 50000 cycles | |
| Hinge cycle life | 100000 cycles | |
| Desk net weight | 150 kg | |
| Recommended maximum user weight | 150 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate | E1-grade high-density fiberboard | |
|---|---|---|
| Worktop surface veneer | 0.6 mm thick natural walnut wood veneer | |
| Edge banding | Solid wood walnut edge strips | |
| Surface finish | Matte polyurethane (PU) paint | |
| Support legs | Solid walnut wood tapered legs | |
| Modesty panel construction | Veneered HDF with open slat cutouts | |
| Side return cabinet body | E1-grade HDF with walnut veneer | |
| Hardware fittings | Zinc alloy drawer pulls and hinges | |
| Cable management grommets | ABS plastic with brushed metal trim | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Dual desk surface grommets with under-desk cable tray | |
|---|---|---|
| Side return storage layout | 1 file drawer, 2 utility drawers, enclosed CPU storage bay | |
| Modesty panel function | Slatted front panel provides seated leg privacy | |
| Drawer locking mechanism | Centralized drawer lock for all return cabinet drawers | |
| Work surface layout | Extended L-shape provides dual work zones for computer and document processing | |
| Floor protection design | Felt glides fitted to bottom of all solid wood legs | |
| Panel alignment feature | Cam-lock KD assembly hardware ensures flush panel fit | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Suitable for 25sqm executive private offices, premium appearance for management spaces | |
|---|---|---|
| Boardroom auxiliary workspace | Can be used as meeting leader workspace in small executive boardrooms | |
| Premium home office | Ideal for high-end residential home office setups with formal traditional styling | |
| Matching suite configuration | Pairs with matching executive chair and wood display bookcases for a complete office suite | |
| User profile | Designed for executive, senior manager and president level office use |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements | |
|---|---|---|
| EN 13722:2004 | Office furniture storage units performance requirements | |
| EN 71-3:2019 | Migration of certain elements for furniture surfaces |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance and durability test standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance test standard |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels | |
| GB/T 4897.3-2003 | Performance requirements for high-density fiberboard for furniture use |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels; 3. GB/T 4897.3-2003: Performance requirements for high-density fiberboard for furniture use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
