PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1100 × 760 mm
Worktop thickness	75 mm
Edge banding thickness	2 mm
Side pedestal depth	450 mm
Central knee clearance width	1400 mm
Knee clearance height	630 mm
Knee clearance depth	550 mm
Open raised base height	120 mm
Decorative oval grille diameter	600 mm
Cable grommet diameter	80 mm
Drawer internal height	150 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worktop static uniform load	200 kg
Single drawer slide static load	45 kg
Drawer slide cycle rating	50000 cycles
Door hinge cycle rating	80000 cycles
Cable tray static load	15 kg
Net product weight	260 kg
Recommended user count	1
Finish abrasion resistance	1000 revolutions
Standard warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Structural frame	Solid hardwood with walnut wood finish
Worktop substrate	High-density fiberboard with walnut wood veneer
Decorative grille panels	Solid wood slats/lattice with matte clear lacquer
Base frame	Solid hardwood open traditional stand
Storage door panels	Veneered wood panels with solid wood edging
Drawer hardware	Cold-rolled steel telescopic ball-bearing slides
Door hinges	Stainless steel soft-close cabinet hinges
Finish coating	Water-based matte wood lacquer
Edge banding	Solid wood matching edge trim
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Dual side pedestal storage	Two integrated closed storage pedestals with combination of drawers and cabinet doors
Front decorative facade	Central oval lattice grille with side slat ventilation panels for traditional aesthetic
Cable management system	Recessed desk-top cable grommets with under-desk cable tray for wire organization
Drawer operation	Soft-close full-extension drawers with ball-bearing slides for full access to stored items
Door operation	Soft-close hinged cabinet doors with concealed handles for clean aesthetic
Raised base clearance	Open elevated base allows floor cleaning access under entire desk structure
Work surface configuration	Single continuous rectangular worktop with rounded edges for comfortable extended use
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive private office	Suitable for general manager, director or president private office spaces, matching high-back executive chairs
High-end reception meeting space	Applicable for formal meeting rooms and executive reception areas with traditional styling
Chinese style commercial interiors	Designed for spaces with new Chinese, oriental or traditional commercial interior design schemes
Standalone workstation	Functions as a dedicated single-user workstation with integrated storage for office supplies
Matching furniture set compatibility	Pairs with matching wood filing cabinets, tea cabinets, office chairs and sofa sets for complete office fit-out

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements, applicable for structural performance
EN 13722:2004	Office furniture storage units strength and durability requirements, applicable to pedestals

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for safety, durability and structural performance, applicable for commercial use

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural and finish quality
GB 18580-2017	Formaldehyde emission limit for wood-based panels, minimum E1 grade required for procurement
GB/T 4897.3-2018	Particleboard specification for furniture use, applicable to panel substrate quality

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and finish quality;
2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, minimum E1 grade required for procurement;
3. GB/T 4897.3-2018: Particleboard specification for furniture use, applicable to panel substrate quality;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · NCS-ED2800-WAL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · NCS-ED2800-WAL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · NCS-ED2800-WALOpen Export Tool

Quick Actions

Post an RFQ

Product Description

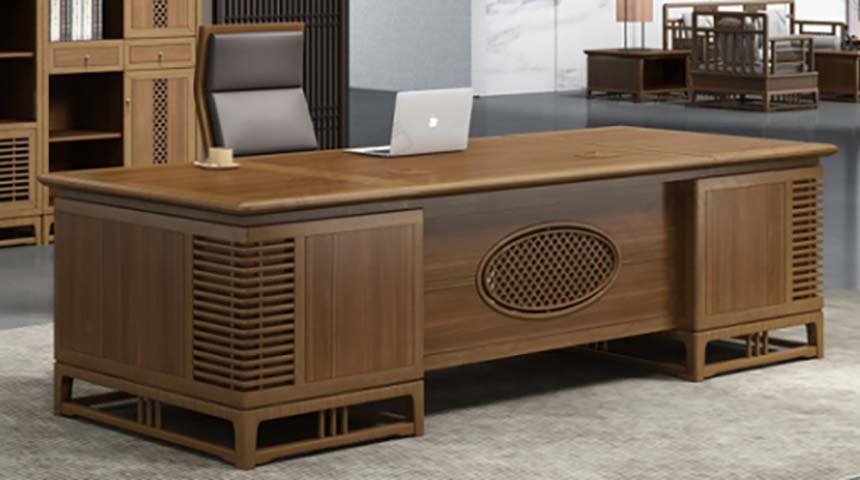

The New Chinese Style Walnut-Finish Solid Wood Frame Executive Desk, model NCS-ED2800-WAL, is an unbranded executive desk designed to blend traditional aesthetic sensibilities with modern office functionality. It features a single continuous rectangular worktop with rounded edges for extended use comfort, supported by a solid hardwood open traditional stand base with open raised clearance that enables easy floor cleaning access under the entire structure. The front facade carries a central oval lattice grille flanked by slat ventilation panels, which deliver a classic new Chinese visual character, while concealed handles on cabinet doors preserve the desk’s smooth, streamlined silhouette. The dual integrated side storage pedestals sit symmetrically on either side of a generous central knee clearance zone, creating a balanced, formal layout.
Constructed with a solid hardwood frame finished in a water-based matte walnut wood lacquer, the desk uses a high-density fiberboard worktop substrate clad in walnut wood veneer, trimmed with matching solid wood edge banding. Decorative grille panels are made from solid wood slats finished with matte clear lacquer, while storage door panels use veneered construction with solid wood edging. Drawers operate on cold-rolled steel telescopic ball-bearing slides that support full extension for complete access to stored items, paired with stainless steel soft-close hinges for cabinet doors that reduce operational noise and prevent slamming. The worktop supports a static uniform load of 200 kg, individual drawer slides hold 45 kg, the integrated under-desk cable tray supports 15 kg, and drawer slides and door hinges carry cycle ratings of 50000 and 80000 respectively. Functional details include recessed desktop cable grommets paired with the under-desk tray for streamlined wire organization, and the dual pedestals combine drawers and closed cabinet space to stow office supplies.
This desk is suited for executive private offices for general managers, directors, or presidents, high-end formal meeting and executive reception spaces, and commercial interiors built around new Chinese, oriental, or traditional design schemes. It operates as a dedicated single-user standalone workstation, and pairs seamlessly with matching wood filing cabinets, tea cabinets, office chairs, and sofa sets for cohesive full-office fit-outs. For procurement, note that the product ships across multiple cartons, requires 40 minutes of assembly per set, and is designed for single-user operation, making it best suited for spaces where formal traditional styling and integrated, accessible storage are core requirements.

New Chinese Style Walnut-Finish Solid Wood Frame Executive Desk with Dual Side Storage Pedestals Specifications
