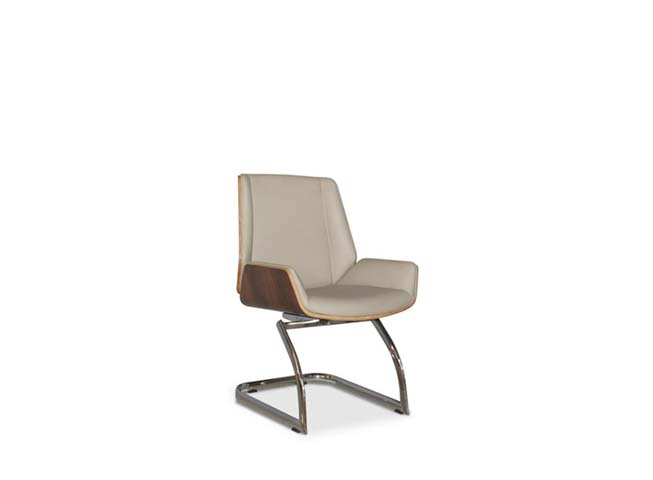

Product supplierCantilever Guest Armchair with Upholstered Seat and Bent Wood Back, Beige polyurethane leather, 1.2 mm thick, over shaped polyurethane foam
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 590 × 640 × 860 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 13 kg | |
|---|---|---|
| Recommended user weight capacity | 130 kg | |
| Recommended user body width | 500 mm | |
| Seating capacity | 1 person | |
| Cantilever flex rating | 120,000 seating cycles | |
| Back static load target | 91 kg | |
| Floor sliding resistance | 4 non-marking pads | |
| Foam density | 35 kg/m3 | |
| Foam indentation hardness | 60 N | |
| Foam rebound value | 35% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | Beige polyurethane leather, 1.2 mm thick, over shaped polyurethane foam | |
|---|---|---|
| Back upholstery | Beige upholstered central insert with two vertical stitched face panels | |
| Seat cushion foam | 40 mm thick polyurethane foam at 35 kg/m3 density | |
| Back padding | 25 mm thick polyurethane foam at 30 kg/m3 density | |
| Outer back shell | Molded bent plywood with exposed light edge banding | |
| Arm side panels | 12 mm dark walnut-toned veneered plywood panels integrated with the back shell | |
| Cantilever frame | 25 mm chrome-plated steel round tube in a twin U-shaped sled design | |
| Seat mounting plate | 2.5 mm powder-coated steel plate connecting shell to cantilever frame | |
| Floor protection | Four black non-marking polymer pads bonded to frame contact ends | |
| Seam construction | Bonded upholstery seams with 8 stitches per 50 mm face detail | |
| Surface finish on metal | Polished chrome plating with a mirrored finish | |
| Wood finish | Smooth dark veneer face with natural-toned exposed plywood edge |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cantilever movement | Fixed sled base provides vertical flex of 8 mm under seating load and rebounds without moving parts | |
|---|---|---|
| Swivel function | 0-degree fixed orientation with no turntable or gas lift visible | |
| Height adjustment | 460 mm fixed seat height with no gas cylinder or adjustment lever | |
| Recline function | Fixed back angle at 100 degrees from horizontal, with no tilt mechanism | |
| Integrated arm support | Continuous wood and upholstered arm panels provide 210 mm support above the seat | |
| Mobility design | Stationary chair with four floor pads and no casters | |
| Stacking design | Non-stacking individual chair due to enclosed arm panels and tall bent wood shell | |
| Floor protection | Four polymer glides reduce scratching and limit lateral sliding on hard floors | |
| Seating access | Open-front sled base allows entry from the front with 420 mm knee clearance | |
| Maintenance access | Upholstered shell attaches through an under-seat steel plate using removable fasteners | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Packed gross weight | 16 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive meeting room | Place around conference tables for visitors and managers, with fixed posture and low visual noise | |
|---|---|---|
| Reception and waiting area | Use in rows or pairs for guest seating where stationary placement and floor protection are required | |
| Private office guest position | Position one or two chairs in front of an executive desk for short-to-medium meetings | |
| Hotel or club lounge | Specify for refined business lounges needing wood, chrome, and padded armchair styling | |
| Home office consultation area | Use as a visitor chair opposite a workstation in a residential executive office | |
| Conference training room | Deploy in fixed seating arrangements on hard floors or low-pile carpet with supplied glides | |
| Flooring condition | Recommended for wood, tile, terrazzo, and low-pile carpet up to 6 mm pile height | |
| Recommended Matching Desk Size | 2.4 m executive desk |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office seating safety recommendation | EN 16139 safety requirements for non-domestic visitor and meeting seating | |
|---|---|---|
| Structural test recommendation | EN 16139 Level 2 durability and static-load test sequence | |
| Upholstery fabric behaviour recommendation | EN 14465 upholstery fabric performance classification | |
| Furniture emissions recommendation | EN 16516 chamber method for formaldehyde and VOC release verification |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Visitor chair strength recommendation | ANSI/BIFMA X5.4 lounge and public seating static and dynamic load clauses | |
|---|---|---|
| Base stability recommendation | ANSI/BIFMA X5.4 forward and rear stability acceptance tests |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Formaldehyde emission recommendation | GB/T 39600, E1 limit for wood-based panels used in the bent plywood shell | |
|---|---|---|
| Upholstered furniture safety recommendation | GB 28241 clauses for cigarette ignition resistance of upholstered composites | |
| Metal furniture coating recommendation | GB/T 3325 salt-spray and coating integrity checks for chrome-plated steel frames |
Standardized tender description text
This product must meet the following technical requirements: 1. Formaldehyde emission recommendation: GB/T 39600, E1 limit for wood-based panels used in the bent plywood shell; 2. Upholstered furniture safety recommendation: GB 28241 clauses for cigarette ignition resistance of upholstered composites; 3. Metal furniture coating recommendation: GB/T 3325 salt-spray and coating integrity checks for chrome-plated steel frames; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
