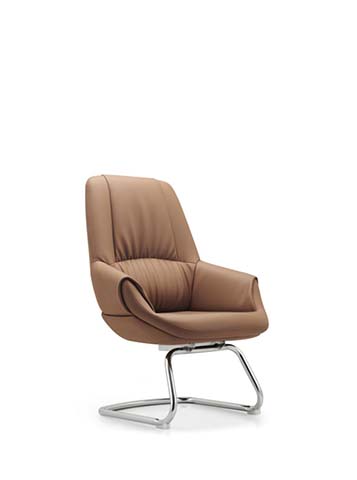

Product supplierTan Upholstered Executive Visitor Chair with Chrome Cantilever Base, Tan leather-look upholstery with vertical pleated channel detail
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 650 × 720 × 1000 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 16 kg | |
|---|---|---|
| Recommended user weight | 140 kg | |
| Static seat load target | 200 kg | |
| Backrest backward static load target | 100 kg | |
| Cantilever fatigue cycles | 100,000 cycles | |
| Upholstery abrasion target | 50,000 Martindale cycles | |
| Seating capacity | 1 person | |
| Wobble and floor-contact design | 4 floor contact zones | |
| Warranty target | 3 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery | Tan leather-look upholstery with vertical pleated channel detail | |
|---|---|---|
| Seat padding | Molded polyurethane foam cushion at 100 mm thickness and 45 kg/m3 target density | |
| Back padding | Polyurethane foam back pad at 80 mm thickness and 40 kg/m3 target density | |
| Armrest padding | Integrated foam-padded arm pads wrapped in the same tan upholstery | |
| Inner load frame | Welded steel support frame with 2 mm nominal wall or sheet section | |
| Cantilever base | Polished chrome-plated steel tube, 25 mm diameter and 1.5 mm wall target | |
| Floor glides | Injection-molded polymer glides at four runner contact points | |
| Seat-to-base connector | Steel mounting plate with 4 bolted connections to the cantilever crown | |
| Back panel construction | Upholstered hard or semi-rigid shell over steel or plywood reinforcement | |
| Stitching | Tone-on-tone stitched vertical channels with 80 mm seam pitch target | |
| Surface finish | Bright polished chrome finish with reflective tubular frame | |
| Color count | 1 visible standard color, tan |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Swivel function | Fixed non-swivel seat with no visible gas cylinder or turntable | |
|---|---|---|
| Recline function | Fixed backrest with no visible tilt lever or multi-position locking mechanism | |
| Height adjustment | Fixed 450 mm seat height with no height actuator or control paddle | |
| Arm support | Continuous wraparound armrests provide forearm support at 670 mm total arm height | |
| Flex movement | Cantilever base provides controlled vertical flex through the continuous steel tube | |
| Floor protection | Replaceable polymer glides protect hard floors and reduce movement noise | |
| Stacking capability | Non-stacking upholstered executive chair; no stacking alignment features visible | |
| Cleaning and maintenance | Smooth upholstered surfaces and sealed chrome frame support wipe-down maintenance | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive meeting room | Use around conference tables where a fixed 450 mm seat height and formal appearance are required | |
|---|---|---|
| Manager office visitor seating | Place one or two chairs in front of an executive desk for short-to-medium meetings | |
| Reception lounge | Pair with side tables or low tables in upscale reception and waiting zones | |
| Conference training rooms | Specify multiple identical chairs for uniform boardroom or training seating | |
| Private consulting spaces | Use for legal, financial, or hospitality consultations requiring quiet, padded guest seating | |
| Hard-floor office areas | Use glided chrome runners on tile, wood, or sealed concrete floors | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139 non-domestic seating | Use for strength, durability, and safety requirements for non-domestic chairs | |
|---|---|---|
| EN 1022 seating stability | Use for front, rear, and side overturning assessment of the cantilever chair |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.4 lounge and public seating | Use as engineering reference for static, cyclic, and stability evaluation of visitor seating |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.2 furniture stability | Applicable standards and test results require confirmation | |
|---|---|---|
| GB/T 10357.3 furniture strength and durability | Apply for seat, back, arm, and leg static and fatigue acceptance testing | |
| GB 18584 interior decoration materials | Use for limited formaldehyde and harmful-substance release verification on wooden or composite components |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.2 furniture stability: Applicable standards and test results require confirmation; 2. GB/T 10357.3 furniture strength and durability: Apply for seat, back, arm, and leg static and fatigue acceptance testing; 3. GB 18584 interior decoration materials: Use for limited formaldehyde and harmful-substance release verification on wooden or composite components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
