PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 680 × 990 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	15 kg per chair
Recommended user weight	160 kg
Seat static-load verification	200 kg for 1 hour
Backrest backward-load verification	136 kg applied for 1 hour
Cantilever fatigue cycles	120,000 seating cycles at 102 kg
Upholstery abrasion resistance	50,000 Martindale cycles
Seat foam density	45 kg/m3 molded polyurethane
Back foam density	35 kg/m3 polyurethane
Foam resilience	40% ball rebound
Recommended occupancy	1 person

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer seating cover	Tan upholstery cover with smooth, fine-grain surface and stitched panel borders
Seat cushion	80 mm molded polyurethane foam over a rigid seat carrier
Back cushion	65 mm polyurethane padding attached to a shaped back board
Internal seat carrier	12 mm plywood or equivalent formed composite panel, 500 x 450 mm
Internal back carrier	10 mm molded plywood or reinforced polymer panel, 470 x 550 mm
Cantilever frame	25 x 2.0 mm bright chrome-plated welded steel tube
Arm support structure	Upholstered side shell over a steel or rigid polymer arm bracket connected to the seat frame
Arm pads	Padded polymer or foam top covered in the same tan upholstery, 25 mm thick
Underseat mounting plate	3 mm powder-coated steel plate with four bolt fixing points
Floor glides	Four black polymer or rubber pads bonded to chrome runner ends
Surface finish on metal	Polished chrome plating with a minimum 8 micron nickel and 0.25 micron chrome stack
Seam construction	Upholstered edge binding with 8 stitches per 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cantilever movement	Fixed sled frame provides controlled vertical flex of 15 mm under normal seating load
Swivel function	360-degree rotation is not provided because the seat is fixed to a twin-runner cantilever frame
Height adjustment	Fixed 460 mm seat height with no gas lift, suited to 760 mm meeting tables
Back support	Tall 570 mm back provides continuous lumbar and lower-shoulder support at a fixed 10-degree recline
Arm support	Integrated 220 mm high armrests support forearms during discussion and laptop tasks
Floor protection	Four replaceable glides distribute the load and reduce noise on hard floors
Stacking capability	Non-stacking single chair; the high upholstered arms prevent vertical nesting
Side linking	Optional link connector can be fitted to the lower frame on 20 mm centers for row seating
Entry and exit	Open front sled base allows side and front access without a caster or pedestal obstruction
Cleaning access	Smooth upholstered panels and exposed polished metal frame permit wipe-down under the seat and around runners
Backrest recline angle	10 degrees from vertical
Recline Angle / Lock Reference	125° with 3suggested lock positions

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Boardroom seating	Use around 760 mm conference tables for meetings lasting up to 3 hours
Executive visitor seating	Place in front of desks for guests and clients in private offices
Reception lounge	Use in pairs along low tables or consultation zones
Training room rows	Deploy in straight rows with optional linking clips to maintain aisle order
Hotel meeting suite	Specify for conference rooms and breakout areas requiring quiet, non-rolling visitor chairs
Government and finance meeting rooms	Suitable for conservative interiors needing durable fixed seating without recline controls
Floor compatibility	Recommended for tile, timber, vinyl, and low-pile carpet with supplied glides
Configuration note	Order in sets of 2 or more to pair with meeting tables ranging from 1,200 to 3,600 mm wide

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139 applicability	Use Level 2 contract-seating requirements for strength, durability, and safety in non-domestic meeting areas
EN 1022 applicability	Apply seating stability determination to front, rear, and side tipping on the finished chair

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.2 applicability	Apply furniture mechanical test methods for chair stability on the finished cantilever chair
GB/T 10357.3 applicability	Apply strength and durability test methods for chair seat, back, arms, and frame joints
GB/T 27925 applicability	Use metal-furniture quality requirements for chrome-plated steel tube, welds, and corrosion performance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.2 applicability: Apply furniture mechanical test methods for chair stability on the finished cantilever chair;
2. GB/T 10357.3 applicability: Apply strength and durability test methods for chair seat, back, arms, and frame joints;
3. GB/T 27925 applicability: Use metal-furniture quality requirements for chrome-plated steel tube, welds, and corrosion performance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CF-CNV-620-BRN

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CF-CNV-620-BRN

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CF-CNV-620-BRNOpen Export Tool

Quick Actions

Post an RFQ

Product Description

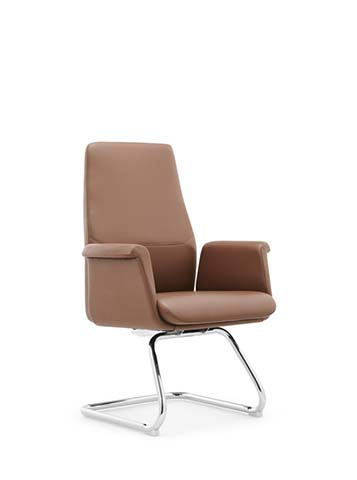

The Brown Upholstered Cantilever Conference Armchair, model CF-CNV-620-BRN, presents a refined meeting-room silhouette with a medium-height upholstered back, wide tan seat, and integrated armrests. Its warm brown cover has a smooth, fine-grain surface with stitched panel borders, while the bright chrome cantilever frame gives the chair a light, open visual profile. The twin-runner sled base extends beneath the seat and rises into a coordinated arm structure, creating a consistent, orderly appearance suitable for formal interiors. Overall dimensions are 620 by 680 by 990 millimetres, with 540 millimetres of clear width between the arms. The chair is built around a welded steel cantilever frame using 25 by 2.0-millimetre chrome-plated tube. A 3-millimetre powder-coated steel mounting plate connects the seat assembly with four fixing points. The seat uses an 80-millimetre molded polyurethane cushion over a rigid plywood or equivalent formed composite carrier, while the back combines 65 millimetres of polyurethane padding with a molded plywood or reinforced polymer board. The finished seat cushion is 90 millimetres thick, backrest padding is 70 millimetres thick, and the molded seat foam density is 45 kilograms per cubic metre. Arm pads are 25 millimetres thick and covered in the same tan upholstery, with upholstered side shells over steel or rigid polymer brackets. This is a fixed, non-swivel chair with a 460-millimetre seat height and no gas lift. The 570-millimetre back is set at a fixed 10-degree recline and includes a 240-millimetre lumbar support zone for continuous lower-back and lower-shoulder support. Integrated 220-millimetre armrests support forearms during discussion or laptop work, and the sled frame provides controlled 15-millimetre vertical flex under normal seating load. Four replaceable glides help reduce noise and protect hard floors. The chair does not stack, as its high upholstered arms prevent vertical nesting. It is well suited to boardrooms and 760-millimetre conference tables for meetings up to three hours, as well as executive visitor seating, reception lounges, training rows, hotel meeting suites, breakout areas, and government or finance meeting rooms where quiet, non-rolling fixed seating is preferred. Training layouts can use optional linking clips to keep rows aligned. Procurement teams should note the unbranded supply, fixed seat height, non-stacking form, and need for assembly. Each chair weighs 15 kilograms, is supplied as one set in two cartons with a packaged gross weight of 23 kilograms, and has a stated assembly time of 40 minutes. The upholstery is rated for 50,000 Martindale abrasion cycles, and the chair carries documented load and fatigue verification, supporting specification for durable meeting and visitor environments.

Brown Upholstered Cantilever Conference Armchair Specifications
