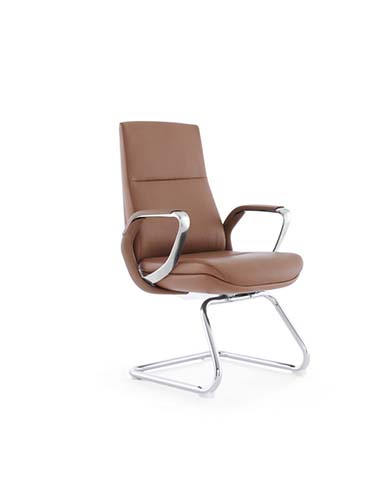

Product supplierBrown Leather Executive Cantilever Visitor Chair, Brown smooth leather-look surface with stitched panel seams
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 620 × 680 × 1050 mm | |
|---|---|---|
| Frame tube diameter | 25 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 160 kg | |
|---|---|---|
| Chair net weight | 16.5 kg | |
| Seat foam density | 45 kg/m3 | |
| Back foam density | 35 kg/m3 | |
| Foam rebound value | 40% | |
| Recommended user height range | 1880 mm | |
| Seating capacity | 1 person | |
| Cantilever cyclic durability target | 120,000 cycles | |
| Static backrest load target | 91 kg | |
| Warranty target | 5 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | Brown smooth leather-look surface with stitched panel seams | |
|---|---|---|
| Backrest upholstery | Brown continuous padded upholstery with one horizontal seam | |
| Seat cushion foam | 80 mm molded high-resilience polyurethane foam at 45 kg/m3 | |
| Back cushion foam | 70 mm supportive polyurethane foam at 35 kg/m3 | |
| Internal seat support | 12 mm plywood or steel seat deck with anti-squeak isolation | |
| Back support board | 8 mm molded plywood or steel back carrier secured to the frame | |
| Cantilever frame | 25 mm diameter bent tubular steel with polished chrome finish | |
| Arm structure | Curved chrome steel support loop with brown padded arm cap | |
| Frame protective feet | Black non-marking polymer glides on four runner contact points | |
| Surface treatment | Polished chrome-plated metal frame with bright mirror finish | |
| Seam construction | Color-matched stitched seams with 7 mm stitch pitch | |
| Upholstery abrasion target | 50,000 Martindale cycles |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Fixed cantilever rocking response | Continuous steel sled base provides limited flex and returns upright without a tilt mechanism | |
|---|---|---|
| Fixed arm support | Padded curved armrests support forearms at 230 mm above the seat and do not adjust | |
| High-back torso support | 620 mm backrest provides shoulder and upper-back support for meeting-room posture | |
| Non-swivel design | Frame mounts directly to the seat without casters, gas lift, or turntable for stable visitor use | |
| Floor protection | Four polymer runner glides reduce floor marking and permit controlled repositioning | |
| Stacking capability | Non-stacking closed cantilever frame intended for permanent individual placement | |
| Upholstered edge protection | Wrapped seat and back edges reduce contact impact around arms and conference tables | |
| Maintenance access | Smooth upholstery and exposed chrome frame allow wiping and routine inspection of glides and fasteners | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive meeting room | High-back brown chair presents visitors and managers with formal support around conference tables | |
|---|---|---|
| Boardroom visitor seating | Fixed sled base avoids rolling and provides a neat uniform arrangement for attendees | |
| Reception or guest office | Padded arms and leather-look upholstery support short-to-medium waiting meetings | |
| Manager desk guest position | 450 mm seat height aligns with standard 760 mm office desks | |
| Training or consultation room | Stable cantilever construction allows repeated use without adjustable mechanisms | |
| Hotel business lounge | Polished chrome and smooth brown upholstery suit refined commercial lounge settings | |
| Recommended layout grouping | Place in pairs or rows with 250 mm side clearance for entry and cleaning clearance | |
| Recommended Matching Desk Size | 2.4 m executive desk |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139 office seating | Applies to strength, durability, and safety requirements for non-domestic visitor seating | |
|---|---|---|
| EN 1022 stability furniture | Applies to stability assessment of seated furniture | |
| EN 12520 seating safety | Applies to safety requirements for household, contract, and non-domestic seating |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 General-Purpose Office Chairs | Back strength, seat static load, and durability clauses can guide commercial acceptance |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.2 furniture mechanical test | Applicable standards and test results require confirmation | |
|---|---|---|
| GB/T 10357.3 furniture mechanical test | Applies to backrest strength and rear-leg strength for fixed seating | |
| GB/T 10357.6 furniture mechanical test | Applies to armrest downward and horizontal strength checks | |
| GB/T 3324 technical furniture requirement | Applies to general dimensional stability, workmanship, and inspection requirements |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.2 furniture mechanical test: Applicable standards and test results require confirmation; 2. GB/T 10357.3 furniture mechanical test: Applies to backrest strength and rear-leg strength for fixed seating; 3. GB/T 10357.6 furniture mechanical test: Applies to armrest downward and horizontal strength checks; 4. GB/T 3324 technical furniture requirement: Applies to general dimensional stability, workmanship, and inspection requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
