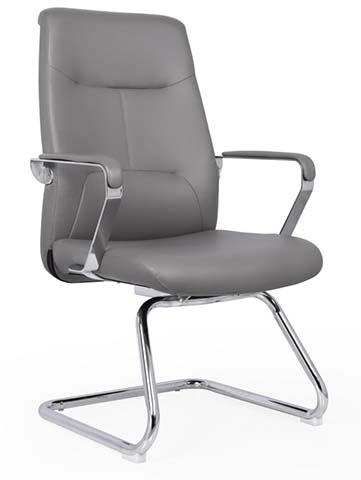

Product supplierGrey Upholstered Cantilever Conference Chair with Chrome Sled Base, Grey smooth-faced upholstery with stitched paneling
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 620 × 680 × 1010 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight | 160 kg | |
|---|---|---|
| Net weight | 14 kg | |
| Seat foam density | 35 kg/m3 | |
| Back foam density | 30 kg/m3 | |
| Foam rebound rating | 35% | |
| Upholstery abrasion resistance | 50,000 Martindale cycles | |
| Colorfastness to rubbing | Grade 4 | |
| Cantilever static load verification | 160 kg held for 1 hour | |
| Seating capacity | 1 person | |
| Suggested warranty | 5 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | Grey smooth-faced upholstery with stitched paneling | |
|---|---|---|
| Back upholstery | Grey padded upholstery divided by horizontal and vertical stitched seams | |
| Seat cushion core | 80 mm polyurethane foam pad on a rigid seat support | |
| Back cushion core | 60 mm padded polyurethane layer over a shaped back carrier | |
| Internal back carrier | 12 mm molded plywood or equivalent composite board | |
| Internal seat carrier | 12 mm plywood or steel seat pan with edge support | |
| Arm pads | Grey upholstered pads with softly rounded ends | |
| Arm support frame | 25 mm chrome-plated round steel tube forming side loops | |
| Cantilever base | Twin chrome-plated steel rod frames joined by front and rear floor runners | |
| Surface finish | Polished chrome plating over welded steel tubing | |
| Floor glides | 4 polymer or nylon non-marking glides at runner contact points | |
| Stitch construction | Matching grey thread with sewn panel seams and perimeter edge detail |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Fixed-height seating | 450 mm fixed seat height for conference and visitor use | |
|---|---|---|
| Cantilever flex movement | Springy fore-and-aft deflection through continuous steel runners | |
| Non-swivel design | Fixed seat orientation with no visible turntable or tilt mechanism | |
| Back support | Tall segmented back with 600 mm backrest and defined lumbar panel | |
| Arm support | Padded fixed armrests at 230 mm above the seat | |
| Floor protection | 4 non-marking glides distribute sled loads and reduce scratching | |
| Stacking capability | Non-stacking single chair based on tall upholstered back and fixed arm loops | |
| Nest or row placement | Armless lower profile absent; maintain 620 mm width per place setting | |
| Cleaning access | 280 mm under-seat clearance permits vacuuming under the fixed seat | |
| Reclining function | No recline mechanism; back angle is fixed at an upright ergonomic rake | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Conference room | Use around formal meeting tables where a 450 mm fixed seat height supports note-taking and discussion. | |
|---|---|---|
| Executive visitor seating | Place in front of desks in management offices, matching the tailored grey back and chrome finish. | |
| Reception area | Suitable for professional guest waiting zones with hard floors or low-pile carpet and non-marking glides. | |
| Training room | Use for fixed-position sessions without task-chair controls, especially where a uniform executive look is required. | |
| Hotel meeting suite | Appropriate for business lounges and function rooms needing padded arm support and easy floor cleaning. | |
| Public institutional office | Suitable for consultation rooms and visitor stations under a 160 kg user-weight procurement target. | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139:2013+A1:2016 | Use for non-domestic seating strength, durability, and safety requirements for visitor chairs. | |
|---|---|---|
| EN 1022:2018 | Use for seating stability evaluation of the fixed cantilever chair on level floors. |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.3 | Use for chair and stool strength and durability test methods when verifying static and fatigue loads. | |
|---|---|---|
| GB 18584 | Use for indoor decorative-material limited harmful-substance release verification of furniture components. | |
| GB/T 2960-2010 | Use as furniture leather terminology and inspection reference only if leather upholstery is selected. |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.3: Use for chair and stool strength and durability test methods when verifying static and fatigue loads.; 2. GB 18584: Use for indoor decorative-material limited harmful-substance release verification of furniture components.; 3. GB/T 2960-2010: Use as furniture leather terminology and inspection reference only if leather upholstery is selected.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
