PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 650 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	11 kg
Recommended user weight capacity	160 kg
Seating capacity	1 person
Frame static-load verification target	113 kg
Cantilever cyclic flex test target	100,000 cycles
Backrest static force target	102 kgf
Upholstery abrasion acceptance level	50,000 Martindale cycles
Floor contact load points	4 points
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Green smooth-faced upholstery over foam, with tailored rounded front edge
Back upholstery	Green upholstered medium-back cushion with horizontal visual segmentation
Arm pads	Green upholstered pads following the curved arm line
Seat cushion foam	80 mm molded polyurethane foam, 45 kg/m3 procurement density
Back cushion foam	60 mm polyurethane foam, 35 kg/m3 procurement density
Cantilever frame	25 mm chrome-plated bent steel tube with continuous sled runners
Seat support plate	1.8 mm powder-coated steel seat carrier with frame weldments
Back support shell	8 mm molded plywood or engineered composite panel inside the upholstered back
Frame surface	Polished chrome plating with bright mirror finish
Floor protection	Snap-on polymer glides at four runner ends
Joining hardware	Steel bolts, washers, and welded tube joints with zinc or black oxide protection
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Movement type	Fixed non-swivel cantilever chair with controlled frame flex
Cantilever comfort action	Continuous steel runners flex by 8 mm under normal seating load
Arm support	Integrated curved arms provide forearm support at 680 mm floor height
Seat adjustment	No height, tilt, depth, or lumbar adjustment; fixed 460 mm seat height
Back posture	Medium-high back with lumbar break and slight upright recline
Floor mobility	Stationary chair with glide-friendly sled runners; no casters fitted
Stacking	Non-stacking individual guest chair
Cleaning access	Open sled frame permits floor cleaning beneath and around the seat
Nesting behavior	Non-nesting chair requiring 650 mm depth per place setting
Noise and floor protection	Polymer end glides isolate metal runners from hard floors
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference room	Use around boardroom tables with 460 mm seat height and upright medium-back support
Reception area	Place opposite a desk or in visitor clusters with a polished green-and-chrome appearance
Manager office	Use as a fixed guest chair in front of an executive desk
Training room	Arrange in rows where durable 50,000-cycle upholstery and flexing frames are useful
Government or banking service room	Specify for high-traffic counter and meeting seating with replaceable glides
Hotel meeting suite	Pair with neutral conference tables in green-accent interiors
Hard-floor installation	Use polymer glides on tile, wood, vinyl, or sealed concrete floors
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139	Strength, durability, and safety reference for non-domestic seating
EN 1022	Stability test reference for upright domestic and non-domestic seating
EN 1728	Test methods for furniture seating strength and durability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4	North American performance reference for lounge and public-office seating
BIFMA E3 level	Applicable standards and test results require confirmation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.2	Applicable test standard for mechanical properties of furniture chairs and stools
GB/T 10357.3	Applicable chair and stool strength and durability test method
GB 18584	Applicable indoor furniture limit for formaldehyde emission from wood-based components
GB/T 3324	General technical specification for wooden furniture applicable to internal structural boards

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.2: Applicable test standard for mechanical properties of furniture chairs and stools;
2. GB/T 10357.3: Applicable chair and stool strength and durability test method;
3. GB 18584: Applicable indoor furniture limit for formaldehyde emission from wood-based components;
4. GB/T 3324: General technical specification for wooden furniture applicable to internal structural boards;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CVC-GREEN-CANTILEVER-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CVC-GREEN-CANTILEVER-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CVC-GREEN-CANTILEVER-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

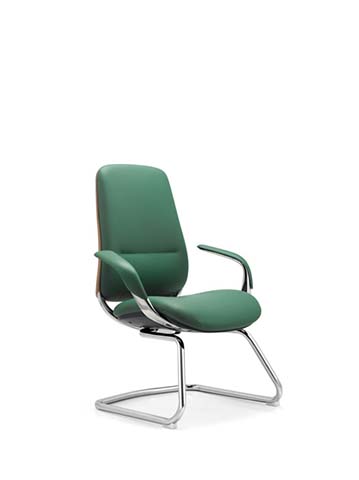

The Green Upholstered Cantilever Conference Chair with Chrome Sled Frame presents a clean, professional seating solution for meeting and visitor settings. Its green smooth-faced upholstery covers a molded foam seat and a medium-high back, with horizontal visual segmentation giving the backrest a structured appearance. The tailored rounded seat edge, curved padded arm pads, and bright polished chrome frame create a polished contrast suited to both traditional and contemporary interiors. The chair uses a continuous cantilever sled base rather than casters or a swivel mechanism, producing a streamlined silhouette with stable, open lines. Underneath, the seat rests on a 1.8 mm powder-coated steel carrier with frame weldments. The cantilever frame is made from 25 mm chrome-plated bent steel tube with continuous runners, while the upholstered back contains an 8 mm molded plywood or engineered composite support panel. Seat cushion foam is 80 mm molded polyurethane at a 45 kg/m3 procurement density, and the back cushion uses 60 mm polyurethane foam at a 35 kg/m3 procurement density. The finished cushion dimensions include a 90 mm seat, 70 mm back padding, 240 mm lumbar support zone, and 540 mm clear width between armrests. This is a fixed, non-swivel, single-person chair with a 460 mm seat height and no height, tilt, depth, or lumbar adjustment. The integrated curved arms provide forearm support at 680 mm from the floor, and the medium-high back includes a lumbar break with a slight upright recline. Under normal seating load, the steel runners flex by 8 mm, adding controlled comfort without casters or loose adjustment parts. The chair is non-stacking and fitted with glide-friendly runners; replaceable glides support maintenance in active settings. Its specified targets include a 160 kg recommended user weight capacity, 113 kg frame static-load verification, 102 kgf backrest static force, 100,000 cantilever flex cycles, and upholstery acceptance at 50,000 Martindale cycles. It is appropriate for boardrooms, reception visitor clusters, manager-office guest seating, training rooms arranged in rows, government or banking service areas, and hotel meeting suites, especially where a green accent is desired. Procurement planning should note the unbranded model CVC-GREEN-CANTILEVER-01 is supplied as one set in two cartons, with packaged gross weight of 23 kg, 0.26 m3 carton volume, and a reference assembly time of 40 minutes. The indicative loading figure is 135 sets in a 20GP container at 85 percent space utilization.

Green Upholstered Cantilever Conference Chair with Chrome Sled Frame Specifications
