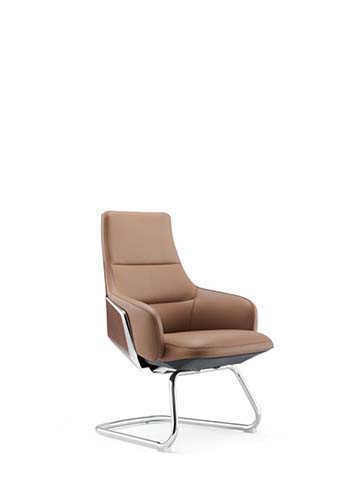

Upholstered High-Back Executive Guest Chair with Chrome Sled Base (model EXEC-SLED-HB-BRN) is listed under Bow Chair. Dimensions: 660 × 760 × 1120 mm. Materials: Brown upholstery with stitched pad faces; material grade not legible and requires supplier BOM confirmation. Load capacity: 120 kg. Product Features: High-back,chair,cantilever,sled,base,upholstered,executive,seating,integrated,armrests,fixed,visitor. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | JIULONGYOUSHENG | Model | EXEC-SLED-HB-BRN |
| Overall dimensions (W × D × H) | 660 × 760 × 1120 mm | Finished Seat Cushion Thickness | 90 mm |
| Backrest Padding Thickness | 70 mm | Lumbar Support Zone Height | 240 mm |
| Clear Width Between Armrests | 540 mm | Recommended user weight capacity | 160 kg |
| Net weight | 18 kg | Seating capacity | 1 person |
| Back static load reference | 120 kg | Seat impact durability reference | 100,000 cycles |
| Backrest fatigue durability reference | 100,000 cycles | Sled base vertical static load reference | 680 kg |
| Floor glide contact count | 4 glides | Color options | 1 visible tan-brown color |
| Warranty reference | 5 years | Seat upholstery | Brown upholstery with stitched pad faces; material grade not legible and requires supplier BOM confirmation |
| Back upholstery | Brown padded upholstery over a wraparound high-back shell with two horizontal seam zones | Armrest upholstery | Integrated brown padded arm bolsters continuous with seat and back side panels |
| Cushion foam | Molded polyurethane seat foam, 100 mm thick, with procurement density target 45 kg/m3 | Back padding | Polyurethane back foam, 80 mm thick, with procurement density target 35 kg/m3 |
| Internal seat support | 12 mm molded structural board or steel-reinforced plywood seat carrier under foam | Back inner frame | 20 mm molded board or welded steel-reinforced back former inside upholstered shell |
| Sled frame | 25 mm diameter chrome-plated steel tube bent into twin cantilever loops | Tube wall thickness | 1.5 mm chrome-plated steel wall thickness for commercial sled-frame service |
| Frame finish | Polished chrome plating over steel, target 0.25 mm decorative chromium system | Floor glides | Four non-marking polymer glides fitted to the lower sled rails |
| Seam construction | Stitched horizontal back panels with 80 mm seam pitch target | Movement type | Fixed cantilever sled chair without swivel, casters, or gas lift |
| Cantilever flex | Controlled fore-aft flex through the twin chrome tube loops, rated for 160 kg users | Arm support | Continuous fixed padded armrests support forearms at 670 mm above floor |
| Back support | High segmented back provides shoulder and lumbar contact zones in a fixed upright posture | Floor protection | Four polymer contact glides reduce floor marking and permit short repositioning slides |
| Entry and exit | Sled design has no front crossbar obstruction and provides 300 mm under-seat kneespace | Stackability | Non-stacking single chair due to high upholstered wraparound shell |
| Reclining function | No recline mechanism or tilt lock; back angle is fixed at 100 degrees | Height adjustment | No seat-height adjustment; fixed 450 mm seat height for meeting-table use |
| Assembly method | Frame-fastened upholstered body using 8 M8 bolts or threaded inserts for delivery and maintenance | Recline Angle / Lock Reference | 125° with 3suggested lock positions |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Carton Dimensions | 850× 420× 720 mm |
| Reference Packaged Gross Weight | 23 kg/set | Reference Carton Volume | 0.26 m³/set |
| Indicative 20GP Loading | 135 sets at 85% space utilization | Indicative 40HQ Loading | 320 sets at 85% space utilization |
| Executive office visitor use | Position in front of an executive desk at 450 mm seat height for meetings and brief consultations | Boardroom and meeting room | Use around conference tables where quiet glide movement and uniform tan-brown upholstery are required |
| Reception and guest lounge | Place in reception zones offering padded high-back support without casters | Manager workstation return | Pair with a desk side-return for temporary guest seating during reviews |
| Hotel business center | Specify for business lounges needing chrome durability and soft-upholstered guest seating | Healthcare administrative office | Use in consultation offices where a stable fixed-base chair is preferred over task seating |
| Recommended floor surfaces | Suitable for hard floors and low-pile carpet with non-marking polymer glides | Recommended table height | Pair with 750 mm meeting or executive desks |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 660 × 760 × 1120 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 160 kg | |
|---|---|---|
| Net weight | 18 kg | |
| Seating capacity | 1 person | |
| Back static load reference | 120 kg | |
| Seat impact durability reference | 100,000 cycles | |
| Backrest fatigue durability reference | 100,000 cycles | |
| Sled base vertical static load reference | 680 kg | |
| Floor glide contact count | 4 glides | |
| Color options | 1 visible tan-brown color | |
| Warranty reference | 5 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | Brown upholstery with stitched pad faces; material grade not legible and requires supplier BOM confirmation | |
|---|---|---|
| Back upholstery | Brown padded upholstery over a wraparound high-back shell with two horizontal seam zones | |
| Armrest upholstery | Integrated brown padded arm bolsters continuous with seat and back side panels | |
| Cushion foam | Molded polyurethane seat foam, 100 mm thick, with procurement density target 45 kg/m3 | |
| Back padding | Polyurethane back foam, 80 mm thick, with procurement density target 35 kg/m3 | |
| Internal seat support | 12 mm molded structural board or steel-reinforced plywood seat carrier under foam | |
| Back inner frame | 20 mm molded board or welded steel-reinforced back former inside upholstered shell | |
| Sled frame | 25 mm diameter chrome-plated steel tube bent into twin cantilever loops | |
| Tube wall thickness | 1.5 mm chrome-plated steel wall thickness for commercial sled-frame service | |
| Frame finish | Polished chrome plating over steel, target 0.25 mm decorative chromium system | |
| Floor glides | Four non-marking polymer glides fitted to the lower sled rails | |
| Seam construction | Stitched horizontal back panels with 80 mm seam pitch target |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Movement type | Fixed cantilever sled chair without swivel, casters, or gas lift | |
|---|---|---|
| Cantilever flex | Controlled fore-aft flex through the twin chrome tube loops, rated for 160 kg users | |
| Arm support | Continuous fixed padded armrests support forearms at 670 mm above floor | |
| Back support | High segmented back provides shoulder and lumbar contact zones in a fixed upright posture | |
| Floor protection | Four polymer contact glides reduce floor marking and permit short repositioning slides | |
| Entry and exit | Sled design has no front crossbar obstruction and provides 300 mm under-seat kneespace | |
| Stackability | Non-stacking single chair due to high upholstered wraparound shell | |
| Reclining function | No recline mechanism or tilt lock; back angle is fixed at 100 degrees | |
| Height adjustment | No seat-height adjustment; fixed 450 mm seat height for meeting-table use | |
| Assembly method | Frame-fastened upholstered body using 8 M8 bolts or threaded inserts for delivery and maintenance | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office visitor use | Position in front of an executive desk at 450 mm seat height for meetings and brief consultations | |
|---|---|---|
| Boardroom and meeting room | Use around conference tables where quiet glide movement and uniform tan-brown upholstery are required | |
| Reception and guest lounge | Place in reception zones offering padded high-back support without casters | |
| Manager workstation return | Pair with a desk side-return for temporary guest seating during reviews | |
| Hotel business center | Specify for business lounges needing chrome durability and soft-upholstered guest seating | |
| Healthcare administrative office | Use in consultation offices where a stable fixed-base chair is preferred over task seating | |
| Recommended floor surfaces | Suitable for hard floors and low-pile carpet with non-marking polymer glides | |
| Recommended table height | Pair with 750 mm meeting or executive desks |
EU Market Access Requirements* EN Standards
| EN 16139 applicability | Applicable standards and test results require confirmation | |
|---|---|---|
| EN 1022 applicability | Chair stability test method for determining front, rear, and sideways overturning behavior | |
| EN 14465 applicability | Upholstery fabric abrasion, pilling, and colorfastness assessment if textile upholstery is supplied |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4 applicability | Lounge and public-office seating strength and durability reference for fixed visitor chairs |
|---|
Standards applicable to China-market projects
| GB/T 10357.2 applicability | Furniture mechanical test for chair and stool strength, suitable for static-load acceptance | |
|---|---|---|
| GB/T 10357.3 applicability | Furniture durability test for chair and stool back and seat loading, suitable for cyclic validation |
This product must meet the following technical requirements: 1. GB/T 10357.2 applicability: Furniture mechanical test for chair and stool strength, suitable for static-load acceptance; 2. GB/T 10357.3 applicability: Furniture durability test for chair and stool back and seat loading, suitable for cyclic validation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
