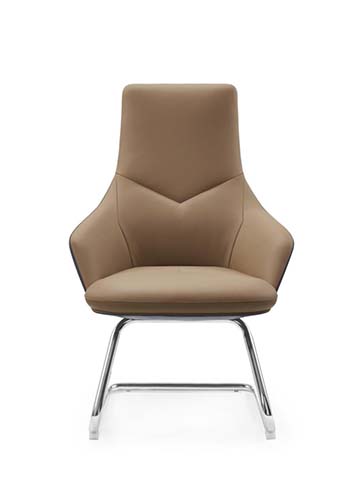

Taupe Upholstered Cantilever Guest Chair with Integrated Armrests (model CGC-TAUPE-HB-SLED-01) is listed under Bow Chair. Dimensions: 680 × 700 × 1010 mm. Materials: Taupe upholstered surface with a smooth leather-like grain, visible as a continuous padded seat cover. Load capacity: 320 kg. Product Features: Contemporary,style,high-back,guest,chair,cantilever,sled,base,upholstered,armrests,stitched,panel,back. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | JIULONGYOUSHENG | Model | CGC-TAUPE-HB-SLED-01 |
| Overall dimensions (W × D × H) | 680 × 700 × 1010 mm | Finished Seat Cushion Thickness | 90 mm |
| Backrest Padding Thickness | 70 mm | Lumbar Support Zone Height | 240 mm |
| Clear Width Between Armrests | 540 mm | Net weight | 14 kg |
| Recommended user weight capacity | 160 kg | Recommended daily user duration | 8 hours |
| Seating capacity | 1 person | Frame static vertical load | 320 kg |
| Upholstery abrasion acceptance target | 50,000 double rubs | Foam density acceptance target | 35 kg/m3 seat, 30 kg/m3 back |
| Foam rebound acceptance target | 35% | Weld and frame cycle target | 100,000 cantilever flex cycles |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | Seat upholstery | Taupe upholstered surface with a smooth leather-like grain, visible as a continuous padded seat cover |
| Back upholstery | Taupe upholstered back divided by V-shaped seam lines into upper and lower padded panels | Integrated arm/side panels | Upholstered wraparound side panels extend from the back to the seat and form soft armrests |
| Cushion foam | Molded polyurethane foam at 90 mm seat thickness and 60 mm back thickness | Internal support shell | Molded plywood or structural composite seat shell with 12 mm target thickness |
| Cantilever frame | Polished chrome-plated bent steel tube with continuous sled legs and rear return runners | Frame surface | Chrome plating over steel with a target 12 micron decorative plating thickness |
| Floor contact tips | Injected polymer glides at all four runner ends, 25 mm target mounting width | Stitching | Tone-on-tone polyester or bonded-thread seams with 8 stitches per 50 mm target |
| Seat underside | Concealed steel or plywood support plate connected to the upper cantilever crossbar | Edge trim | Slim dark perimeter piping or shadow line follows the outer shell edge |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | Cantilever movement | Continuous steel sled frame provides controlled flexible give without tilt, swivel, or height adjustment |
| Integrated arm support | Upholstered side panels rise 220 mm above the seat to cradle forearms and reduce edge pressure | High-back support | 570 mm back supports the thoracic and lower shoulder region during upright conversation seating |
| V-panel back contour | Central chevron seam shapes the lumbar zone and creates separate padded back sections | Floor protection | Four polymer end glides slide over hard floors while limiting direct metal-to-floor contact |
| Stacking capability | Non-stacking single chair based on the wide wraparound upholstered shell and fixed sled geometry | Reclining function | Fixed non-reclining back angle at 100 degrees from the seat plane |
| Swivel function | No swivel mechanism; the chair remains fixed on a stationary cantilever base | Height adjustment | No gas lift; fixed 450 mm seat height coordinates with standard conference tables |
| Cleaning access | Smooth upholstered surfaces and open sled base permit wiping under and around the chair without removable cushions | Recline Angle / Lock Reference | 125° with 3suggested lock positions |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Carton Dimensions | 850× 420× 720 mm |
| Reference Packaged Gross Weight | 23 kg/set | Reference Carton Volume | 0.26 m³/set |
| Indicative 20GP Loading | 135 sets at 85% space utilization | Indicative 40HQ Loading | 320 sets at 85% space utilization |
| Meeting room visitor side | Use on the visitor side of conference tables at a fixed 450 mm seat height for laptops, documents, and discussion | Executive office guest seating | Place one or two chairs opposite an executive desk; taupe upholstery and chrome frame suit formal offices |
| Reception lounge | Position in pairs around low tables for short waiting and consultation periods | Consultation room | Suitable for financial, legal, or advisory meetings where a fixed professional seat and integrated arm support are preferred |
| Hotel or club business center | Use in quiet work lounges and meeting suites with hard flooring or low-pile carpet | Open-plan touchdown area | Add along collaboration counters or small project tables for temporary seated work |
| Senior living reception | Suitable for staff-assisted visitor areas needing a supportive 450 mm seat and firm arm-side contact | Recommended Matching Desk Size | 2.4 m executive desk |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 680 × 700 × 1010 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 14 kg | |
|---|---|---|
| Recommended user weight capacity | 160 kg | |
| Recommended daily user duration | 8 hours | |
| Seating capacity | 1 person | |
| Frame static vertical load | 320 kg | |
| Upholstery abrasion acceptance target | 50,000 double rubs | |
| Foam density acceptance target | 35 kg/m3 seat, 30 kg/m3 back | |
| Foam rebound acceptance target | 35% | |
| Weld and frame cycle target | 100,000 cantilever flex cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | Taupe upholstered surface with a smooth leather-like grain, visible as a continuous padded seat cover | |
|---|---|---|
| Back upholstery | Taupe upholstered back divided by V-shaped seam lines into upper and lower padded panels | |
| Integrated arm/side panels | Upholstered wraparound side panels extend from the back to the seat and form soft armrests | |
| Cushion foam | Molded polyurethane foam at 90 mm seat thickness and 60 mm back thickness | |
| Internal support shell | Molded plywood or structural composite seat shell with 12 mm target thickness | |
| Cantilever frame | Polished chrome-plated bent steel tube with continuous sled legs and rear return runners | |
| Frame surface | Chrome plating over steel with a target 12 micron decorative plating thickness | |
| Floor contact tips | Injected polymer glides at all four runner ends, 25 mm target mounting width | |
| Stitching | Tone-on-tone polyester or bonded-thread seams with 8 stitches per 50 mm target | |
| Seat underside | Concealed steel or plywood support plate connected to the upper cantilever crossbar | |
| Edge trim | Slim dark perimeter piping or shadow line follows the outer shell edge | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cantilever movement | Continuous steel sled frame provides controlled flexible give without tilt, swivel, or height adjustment | |
|---|---|---|
| Integrated arm support | Upholstered side panels rise 220 mm above the seat to cradle forearms and reduce edge pressure | |
| High-back support | 570 mm back supports the thoracic and lower shoulder region during upright conversation seating | |
| V-panel back contour | Central chevron seam shapes the lumbar zone and creates separate padded back sections | |
| Floor protection | Four polymer end glides slide over hard floors while limiting direct metal-to-floor contact | |
| Stacking capability | Non-stacking single chair based on the wide wraparound upholstered shell and fixed sled geometry | |
| Reclining function | Fixed non-reclining back angle at 100 degrees from the seat plane | |
| Swivel function | No swivel mechanism; the chair remains fixed on a stationary cantilever base | |
| Height adjustment | No gas lift; fixed 450 mm seat height coordinates with standard conference tables | |
| Cleaning access | Smooth upholstered surfaces and open sled base permit wiping under and around the chair without removable cushions | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Meeting room visitor side | Use on the visitor side of conference tables at a fixed 450 mm seat height for laptops, documents, and discussion | |
|---|---|---|
| Executive office guest seating | Place one or two chairs opposite an executive desk; taupe upholstery and chrome frame suit formal offices | |
| Reception lounge | Position in pairs around low tables for short waiting and consultation periods | |
| Consultation room | Suitable for financial, legal, or advisory meetings where a fixed professional seat and integrated arm support are preferred | |
| Hotel or club business center | Use in quiet work lounges and meeting suites with hard flooring or low-pile carpet | |
| Open-plan touchdown area | Add along collaboration counters or small project tables for temporary seated work | |
| Senior living reception | Suitable for staff-assisted visitor areas needing a supportive 450 mm seat and firm arm-side contact | |
| Recommended Matching Desk Size | 2.4 m executive desk |
EU Market Access Requirements* EN Standards
| EN 16139:2013+AC:2015 suitability | Strength, durability, and safety requirements for non-domestic non-swivel seating | |
|---|---|---|
| EN 1022:2018 suitability | Determination of stability for seating, applicable to the cantilever sled base | |
| EN 14465:2003 suitability | Upholstery fabric abrasion, assessment by Martindale method |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 suitability | General-purpose office chair safety and durability reference for a fixed non-swivel guest chair |
|---|
Standards applicable to China-market projects
| GB/T 3324-2024 suitability | General technical requirements for wooden furniture, applicable if the internal shell uses wood-based panels | |
|---|---|---|
| GB/T 3325-2017 suitability | Metal furniture technical requirements applicable to the steel cantilever frame and plated components | |
| GB 18584-2024 suitability | Indoor decorative materials limited-release requirements applicable to wood-based furniture components | |
| GB/T 10357.3-2013 suitability | Applicable standards and test results require confirmation |
This product must meet the following technical requirements: 1. GB/T 3324-2024 suitability: General technical requirements for wooden furniture, applicable if the internal shell uses wood-based panels; 2. GB/T 3325-2017 suitability: Metal furniture technical requirements applicable to the steel cantilever frame and plated components; 3. GB 18584-2024 suitability: Indoor decorative materials limited-release requirements applicable to wood-based furniture components; 4. GB/T 10357.3-2013 suitability: Applicable standards and test results require confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
