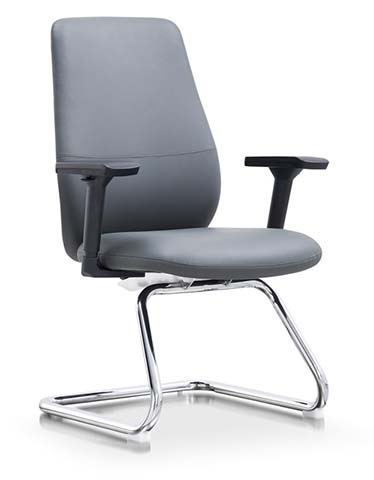

Gray Upholstered Cantilever Conference Chair with Fixed Armrests (model OCC-CB-GRY-01) is listed under Bow Chair. Dimensions: 620 × 650 × 980 mm. Materials: Gray smooth-faced upholstery, likely leather-match or commercial polyurethane leather, with stitched horizontal back seam. Load capacity: 120 kg. Product Features: Gray,upholstery,Fixed,cantilever,base,armrests,Medium-back,chair. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | JIULONGYOUSHENG | Model | OCC-CB-GRY-01 |
| Overall dimensions (W × D × H) | 620 × 650 × 980 mm | Finished Seat Cushion Thickness | 90 mm |
| Backrest Padding Thickness | 70 mm | Lumbar Support Zone Height | 240 mm |
| Clear Width Between Armrests | 540 mm | Net weight | 14 kg |
| Recommended user weight capacity | 160 kg | Seating capacity | 1 person |
| Backrest static load reference | 120 kg | Frame stability reference | 100,000 seating cycles |
| Arm downward load reference | 60 kg per arm | Floor glide load distribution | 40 kg per glide |
| Foam density | 45 kg/m3 | Foam rebound | 40% |
| Warranty period | 5 years | Outer upholstery | Gray smooth-faced upholstery, likely leather-match or commercial polyurethane leather, with stitched horizontal back seam |
| Seat foam | Molded polyurethane cushion pad, 80 mm thick at 45 kg/m3 density target | Backrest padding | Polyurethane foam layer over a rigid back carrier, 70 mm total panel thickness |
| Back carrier | 12 mm molded plywood or equivalent composite panel | Seat support board | 12 mm bent plywood or engineered-wood support board beneath cushion |
| Armrest pads | Black molded polyurethane or hard polymer pads, 25 mm thick | Arm supports | Black powder-coated steel or die-cast support brackets linking pads to seat frame |
| Cantilever frame | Polished chrome-plated bent steel tube, 25 mm diameter and 1.5 mm wall thickness target | Floor glides | Four non-marking polymer glides pressed into the tube ends |
| Frame joining plate | 2.5 mm steel under-seat mounting plate with welded or bolted cantilever connection | Surface finish | Polished chrome plating with bright reflective finish on exposed steel tubes |
| Stitching | Single horizontal seam with 6 stitches per 50 mm target on the backrest | Swivel function | No swivel function; chair is fixed to a cantilever sled base |
| Height adjustment | No gas lift or seat-height adjustment; fixed 450 mm seat height | Recline function | Fixed back angle at 100 degrees from seat plane, with no tilt mechanism visible |
| Rocking response | Cantilever tubes provide limited controlled flex of 8 degrees during seating movement | Arm support | Fixed T-shaped armrests provide forearm support at 230 mm above the seat |
| Mobility | Chair slides on four polymer glides rather than rolling casters | Floor protection | 35 mm glide pads distribute load for hard floors and reduce scratching |
| Stacking | Non-stacking construction with a continuous cantilever frame | Nesting | No nesting mechanism or fold-up seat, intended for static meeting-room rows |
| Maintenance | Upholstered surfaces can be wiped clean; glides are replaceable without removing upholstery | Recline Angle / Lock Reference | 125° with 3suggested lock positions |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | Packed carton dimensions | 700 x 660 x 260 mm |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Carton Dimensions | 850× 420× 720 mm | Reference Packaged Gross Weight | 23 kg/set |
| Reference Carton Volume | 0.26 m³/set | Indicative 20GP Loading | 135 sets at 85% space utilization |
| Indicative 40HQ Loading | 320 sets at 85% space utilization | Meeting rooms | Fixed 450 mm seat height pairs with standard 760 mm conference tables for attendees and visitors |
| Executive offices | Gray upholstery and chrome frame provide formal visitor seating in front of executive desks | Interview rooms | Fixed armrests and non-swivel base create stable seating for structured conversations and candidate meetings |
| Training spaces | Cantilever design allows quick repositioning on hard floors while avoiding casters in controlled rooms | Reception zones | Compact 620 mm width supports visitor seating where a tailored business appearance is required |
| Workstation pull-up use | Chair can serve as temporary task seating beside desks for short collaboration sessions | Commercial projects | 160 kg user-load target and replaceable glides suit multi-chair procurement and facility maintenance |
| Hard-floor environments | Polymer glides are intended for tile, wood, laminate, and low-pile floor surfaces | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 620 × 650 × 980 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 14 kg | |
|---|---|---|
| Recommended user weight capacity | 160 kg | |
| Seating capacity | 1 person | |
| Backrest static load reference | 120 kg | |
| Frame stability reference | 100,000 seating cycles | |
| Arm downward load reference | 60 kg per arm | |
| Floor glide load distribution | 40 kg per glide | |
| Foam density | 45 kg/m3 | |
| Foam rebound | 40% | |
| Warranty period | 5 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery | Gray smooth-faced upholstery, likely leather-match or commercial polyurethane leather, with stitched horizontal back seam | |
|---|---|---|
| Seat foam | Molded polyurethane cushion pad, 80 mm thick at 45 kg/m3 density target | |
| Backrest padding | Polyurethane foam layer over a rigid back carrier, 70 mm total panel thickness | |
| Back carrier | 12 mm molded plywood or equivalent composite panel | |
| Seat support board | 12 mm bent plywood or engineered-wood support board beneath cushion | |
| Armrest pads | Black molded polyurethane or hard polymer pads, 25 mm thick | |
| Arm supports | Black powder-coated steel or die-cast support brackets linking pads to seat frame | |
| Cantilever frame | Polished chrome-plated bent steel tube, 25 mm diameter and 1.5 mm wall thickness target | |
| Floor glides | Four non-marking polymer glides pressed into the tube ends | |
| Frame joining plate | 2.5 mm steel under-seat mounting plate with welded or bolted cantilever connection | |
| Surface finish | Polished chrome plating with bright reflective finish on exposed steel tubes | |
| Stitching | Single horizontal seam with 6 stitches per 50 mm target on the backrest |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Swivel function | No swivel function; chair is fixed to a cantilever sled base | |
|---|---|---|
| Height adjustment | No gas lift or seat-height adjustment; fixed 450 mm seat height | |
| Recline function | Fixed back angle at 100 degrees from seat plane, with no tilt mechanism visible | |
| Rocking response | Cantilever tubes provide limited controlled flex of 8 degrees during seating movement | |
| Arm support | Fixed T-shaped armrests provide forearm support at 230 mm above the seat | |
| Mobility | Chair slides on four polymer glides rather than rolling casters | |
| Floor protection | 35 mm glide pads distribute load for hard floors and reduce scratching | |
| Stacking | Non-stacking construction with a continuous cantilever frame | |
| Nesting | No nesting mechanism or fold-up seat, intended for static meeting-room rows | |
| Maintenance | Upholstered surfaces can be wiped clean; glides are replaceable without removing upholstery | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Packed carton dimensions | 700 x 660 x 260 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Meeting rooms | Fixed 450 mm seat height pairs with standard 760 mm conference tables for attendees and visitors | |
|---|---|---|
| Executive offices | Gray upholstery and chrome frame provide formal visitor seating in front of executive desks | |
| Interview rooms | Fixed armrests and non-swivel base create stable seating for structured conversations and candidate meetings | |
| Training spaces | Cantilever design allows quick repositioning on hard floors while avoiding casters in controlled rooms | |
| Reception zones | Compact 620 mm width supports visitor seating where a tailored business appearance is required | |
| Workstation pull-up use | Chair can serve as temporary task seating beside desks for short collaboration sessions | |
| Commercial projects | 160 kg user-load target and replaceable glides suit multi-chair procurement and facility maintenance | |
| Hard-floor environments | Polymer glides are intended for tile, wood, laminate, and low-pile floor surfaces |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
