Automatic mm / inch conversion · Core engineering specifications

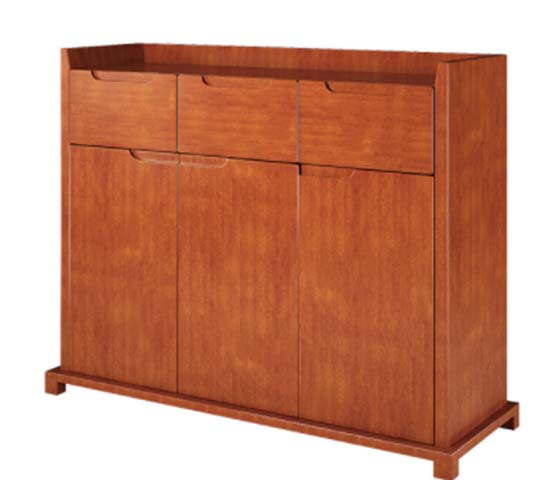

| Overall dimensions | 1820 x 545 x 980 mm | |
|---|---|---|
| Top open gallery tray internal depth | 120 mm | |
| Upper drawer front height | 220 mm | |
| Single drawer internal dimensions | 510 x 400 x 120 mm | |
| Lower cabinet door front height | 600 mm | |
| Single door compartment internal width | 560 mm | |
| Plinth base ground clearance | 80 mm | |
| Adjustable shelf thickness | 18 mm | |
| Carcass side panel thickness | 25 mm | |
| Edge banding thickness | 1 mm | |
| Door hinge overlay clearance | 2 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Product net weight | 80 kg | |
|---|---|---|
| Top surface static load capacity | 50 kg | |
| Recommended user capacity | 1 person | |
| Door hinge cycle rating | 80000 cycles | |
| Drawer slide cycle rating | 50000 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main cabinet carcass | 18mm thick engineered wood core with cherry wood veneer finish | |
|---|---|---|
| Rear back panel | 5mm thick MDF backer with matching wood grain laminate | |
| Top gallery rail frame | 25mm thick solid wood edge trim with matching cherry finish | |
| Plinth base frame and block feet | 30mm thick solid hardwood squared frame with short block supports | |
| Drawer and door fronts | 18mm thick veneered wood panels with integrated recessed pulls | |
| Drawer runners | Side-mounted cold-rolled steel glides with epoxy coating | |
| Door hinges | Concealed cold-rolled steel self-closing cup hinges | |
| Interior shelves | 18mm thick veneered adjustable wood shelves with metal pin supports | |
| Surface finish | Satin semi-gloss lacquer topcoat with UV curing | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Top gallery storage | Raised 120mm rear and side rail creates open top tray to prevent item fall | |
|---|---|---|
| Upper drawer storage | Three equal-width soft-close drawers on steel runners for small item organization | |
| Lower cabinet storage | Three hinged swing doors enclose separate compartments with adjustable shelf positions | |
| Integrated recessed pulls | Routed recessed handles on all drawer and door fronts eliminate protruding hardware | |
| Floor level adjustment | Hidden adjustable feet at plinth corners compensate for uneven floor surfaces | |
| Anti-tip safety | Two wall anchor brackets secure cabinet rear to wall to prevent forward tipping | |
| Shelf adjustability | Metal support pins allow shelves to be repositioned at 32mm vertical increments | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Dining room use | Placed against dining wall to store table linens, cutlery, serveware and display decorative items | |
|---|---|---|
| Home office use | Positioned against office wall to store files, office supplies and reference materials | |
| Living room use | Used as a low display and storage cabinet for media accessories, books and household items | |
| Commercial break room use | Installed in office break rooms to store dishes, pantry items and small appliances | |
| Entryway/hallway use | Placed in wide hallways to store entry essentials, bags and seasonal accessories | |
| Recommended placement clearance | Leave 1000mm clearance in front of cabinet for full door and drawer access |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Residential and kitchen storage furniture safety and performance requirements | |
|---|---|---|
| EN 15219:2007 | Domestic storage furniture stability and structural strength test methods |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional and finish quality checks | |
|---|---|---|
| GB/T 4893.4-2013 | Surface abrasion resistance test for furniture finishes, applicable for finish durabilityAcceptance | |
| GB 18584-2001 | Formaldehyde emission limits for interior wooden furniture, mandatory for indoor air safety |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional and finish quality checks; 2. GB/T 4893.4-2013: Surface abrasion resistance test for furniture finishes, applicable for finish durabilityAcceptance; 3. GB 18584-2001: Formaldehyde emission limits for interior wooden furniture, mandatory for indoor air safety; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
