PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	620 × 680 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight	17 kg
Recommended user weight capacity	160 kg
Single-user seating capacity	1 person
Seat static load verification target	160 kg held for 1 hour
Backrest backward force target	90 kgf
Arm downward static load target	68 kg per arm
Cantilever cyclic durability target	100,000 seating cycles
Cushion indentation recovery target	90% after 24 hours
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Beige leather-look upholstery over padded cushion, with horizontal seam visible on back
Back upholstery	Beige padded upholstered panel with one horizontal dividing seam and stitched perimeter
Seat foam	80 mm molded polyurethane cushion foam, density target 38 kg/m3
Back foam	60 mm polyurethane padding, density target 30 kg/m3
Internal seat carrier	12 mm molded plywood or engineered-composite seat board under cushion
Internal back carrier	8 mm molded plywood or polymer back board supporting upholstered panel
Side trim panels	Dark molded polymer or hard-finished composite panels on arm and back sides
Arm pads	Beige upholstered padding continuous with integrated arm loops
Cantilever frame	Polished chrome-plated steel tube, 25 mm diameter, continuous sled construction
Floor contact pads	Injected polymer glides fitted to each runner end, 4 contact points
Upholstery seam details	Stitched seam construction with 8 mm target stitch pitch
Fasteners and brackets	Powder-coated or zinc-plated steel seat-to-frame brackets with concealed bolts

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Fixed cantilever movement	Continuous steel sled frame provides controlled flex without swivel, tilt, or caster movement
Visitor seating posture	450 mm seat height and 480 mm seat depth support upright meeting-room posture
Integrated arm support	Loop-style arms transfer from back to seat frame and provide 230 mm forearm support height
Floor protection	Four polymer end glides allow controlled sliding while reducing floor scratching
Stacking capability	Non-stacking fixed frame; chairs should be stored individually rather than nested
Reclining adjustment	Fixed recline angle of 100 degrees between seat and back, with no user tilt control
Swivel function	No swivel mechanism; the seat is fixed to the cantilever support frame
Height adjustment	No height adjustment; fixed seat height provides consistent visitor and conference seating
Cleaning access	300 mm under-seat clearance permits vacuuming and floor cleaning around the sled runners
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Executive visitor seating	Place across from a desk for short-to-medium meetings at 450 mm fixed seat height
Conference room use	Use around boardroom tables where a uniform non-swivel chair creates a formal seating layout
Reception and waiting areas	Suitable for corporate reception zones due to padded seat, supportive back, and easy-to-clean upholstery
Management office meeting corner	Pair two or more chairs with a low meeting table or executive desk return
Commercial project specification	Suitable for projects requiring repeated identical conference chairs with chrome frames and upholstered pads
Floor compatibility	Use on hard floors with fitted glides; add felt glides for polished wood or sensitive tile
Occupant profile	Designed for adult office users up to 160 kg in short-duration visitor and meeting applications
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16139:2013 Level 2	Use strength, durability, and safety requirements for non-domestic seating
EN 1022:2018	Use seating stability test method for forward, rearward, and lateral tipping checks
EN 12520:2015	Use mechanical safety requirements for household and contract seating where applicable

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1 General Purpose Office Chairs	Use static load, fatigue, stability, and structural test procedures for commercial seating
ANSI/BIFMA e3 furniture sustainability	Request upholstery, foam, metal finishing, and chemical-content disclosure during sourcing

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.2 furniture mechanical test	Apply chair back and seat static-load test methods for procurement verification
GB/T 10357.3 furniture durability test	Apply chair seat and back fatigue/durability test method to fixed guest chair
GB/T 24430.1 contract furniture seating	Use contract-seating safety and dimensional requirements as acceptance guidance

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 10357.2 furniture mechanical test：Apply chair back and seat static-load test methods for procurement verification；
2. GB/T 10357.3 furniture durability test：Apply chair seat and back fatigue/durability test method to fixed guest chair；
3. GB/T 24430.1 contract furniture seating：Use contract-seating safety and dimensional requirements as acceptance guidance；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CR-MB-BGE-CANT-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CR-MB-BGE-CANT-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CR-MB-BGE-CANT-01打开导出工具

页面快速操作

发布采购询价

产品描述

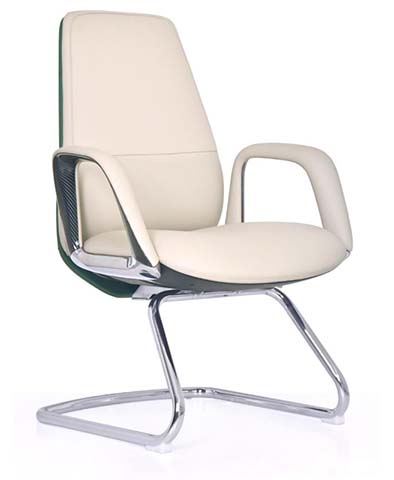

The Mid-Back Upholstered Executive Guest Chair, model CR-MB-BGE-CANT-01, is a fixed-position office guest and conference chair with a polished chrome cantilever frame and beige leather-look upholstery. Its upright, tailored form is defined by a padded mid-height back with one horizontal dividing seam and a stitched perimeter, dark molded side trim, and continuous loop-style arm pads that flow from the back toward the seat. The chair measures 620 by 680 by 1010 mm overall, with a 540 mm clear width between armrests, giving it a structured executive appearance suited to orderly meeting and reception layouts. Construction balances cushioned comfort with a rigid support system. The seat combines beige upholstery with a 90 mm finished cushion, 80 mm molded polyurethane foam at a density target of 38 kg/m3, and a 12 mm molded plywood or engineered-composite carrier. The backrest uses 70 mm padding over a 60 mm polyurethane layer with a density target of 30 kg/m3, supported by an 8 mm molded plywood or polymer board. A 240 mm lumbar support zone adds shaped back support. Dark polymer or hard-finished composite panels trim the arm and back sides, while the base is a continuous polished chrome-plated steel tube sled frame, 25 mm in diameter, with integrated beige upholstered arm pads and four polymer end glides. Designed for controlled flexibility rather than motion adjustment, the cantilever frame flexes under seating load but does not swivel, tilt, or roll. The fixed 100-degree seat-to-back angle, 450 mm seat height, 480 mm seat depth, and 230 mm forearm support height promote an upright visitor posture. The chair seats one person, has a net weight of 17 kg, and carries a recommended user weight capacity of 160 kg. Verification targets include holding a 160 kg static seat load for one hour, withstanding 90 kgf backward force on the backrest, supporting 68 kg downward static load per arm, and completing 100,000 cantilever seating cycles. It is non-stacking and should be stored individually. This chair is appropriate across from an executive desk for short-to-medium meetings, around boardroom tables for a uniform formal arrangement, in corporate reception and waiting areas, and in management office meeting corners paired with a low table or desk return. Its easy-to-clean beige upholstery and repeated identical design also make it suitable for commercial project specifications. The supplied glides are intended for hard floors; felt glides should be added for polished wood or sensitive tile. Procurement planning should note that each set is unbranded, ships in two cartons, and has a packaged gross weight of 23 kg and carton volume of 0.26 m3. Reference carton dimensions are 850 by 420 by 720 mm, assembly time is 40 minutes per set, and an indicative 20GP container loads 135 sets at 85 percent space utilization.

Mid-Back Upholstered Executive Guest Chair with Chrome Cantilever Base Specifications
