PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	610 × 650 × 1000 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Recommended user weight capacity	140 kg
net weight	14 kg
Seating capacity	1 person
Backrest static load target	140 kg
Arm downward static load target	45 kg per arm
Sled frame flex cycles	100,000 cycles
Seat foam density	38 kg/m3
Back foam density	32 kg/m3
Fabric or leather abrasion target	50,000 Martindale cycles
Suggested warranty	5 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Tan leather or leather-look upholstery over padded foam; exact hide or PU grade requires supplier BOM confirmation.
Back upholstery	Tan upholstered padded back panel with smooth outer face and stitched perimeter; material grade is not visible.
Seat cushion core	Molded polyurethane foam, 90 mm thick, specified at 38 kg/m3 for office visitor use.
Back cushion core	Shaped polyurethane padding, 70 mm thick, specified at 32 kg/m3 for lumbar and back support.
Internal support board	12 mm molded plywood or engineered composite seat shell, selected for fixed upholstered chair construction.
Cantilever base	Polished chrome-plated steel tube, 25 mm diameter, forming continuous sled legs and rear support structure.
Arm supports	Curved chrome-plated steel arms connected to the seat frame, with upholstered upper pads following the chair side profile.
Floor glides	Injection-molded polymer or nylon glides at four floor-contact points to reduce noise and floor marking.
Metal finish	Mirror-polished chrome plating with corrosion-protected undercoat; actual plating thickness requires supplier test report.
Upholstery seam	Stitched perimeter construction with 8 stitches per 100 mm target for consistent edge finishing.
Color count	1 visible upholstery color, tan, with polished chrome frame finish.
Edge treatment	Rounded padded front edge and close-fitted upholstery cover visible from chair profile.

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Fixed cantilever movement	Sled frame provides controlled vertical flex without tilt, swivel, or height adjustment.
Guest seating function	Fixed 450 mm seat height supports visitors at standard meeting and executive desks.
Arm support function	Integrated loop arms provide continuous side and elbow support with no height adjustment.
Back posture support	Tall contoured back extends to upper-back height and maintains a fixed upright angle of 100 degrees.
Floor protection	Four polymer glides slide on hard floors and eliminate caster-related movement during meetings.
Entry and exit clearance	Open front sled design provides 260 mm under-seat clearance and unobstructed side access.
Stacking limitation	Fixed curved cantilever base is specified as non-stacking unless supplier documents a stacking version.
Noise control	Polymer glides and continuous steel frame target quiet use in conference and executive rooms.
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Executive office visitor area	Fixed guest seating pairs with desks while maintaining a formal appearance for clients and managers.
Meeting or boardroom seating around tables	450 mm seat height suits standard 760 mm conference tables.
Reception lounge	Tan upholstery and chrome frame provide a professional look for formal reception settings.
Private manager office	Two chairs can be placed opposite an executive desk for short and medium-duration discussions.
Hard-floor commercial interiors	Polymer glides are intended for tile, wood, laminate, and low-pivot carpet applications.
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office chair structural testing suitability	EN 16139
Upholstered furniture flammability suitability	EN 1021and EN 1021
Formaldehyde and panel emissions suitability	EN 717

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Commercial seating structural suitability	ANSI/BIFMA X5.4
Upholstery performance suitability	ANSI/BIFMA e3 section 7.5

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office chair strength and durability suitability	GB/T 10357.2
Furniture surface coating suitability	GB/T 4893.4

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. Office chair strength and durability suitability：GB/T 10357.2；
2. Furniture surface coating suitability：GB/T 4893.4；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · EXEC-VST-CAM-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · EXEC-VST-CAM-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EXEC-VST-CAM-01打开导出工具

页面快速操作

发布采购询价

产品描述

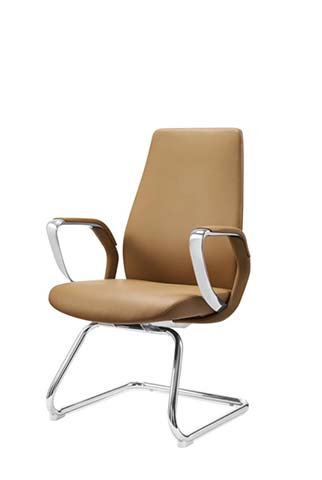

The Executive Leather Visitor Chair with Chrome Cantilever Sled Base is a formal single-seat guest chair designed for executive, meeting, and reception settings. It presents a tall, contoured upholstered back, a generously padded tan seat, and a continuous polished chrome frame that creates a clean, structured silhouette. Curved integrated arm supports follow the side profile of the chair and connect into the seat frame, giving the design a streamlined appearance while providing elbow and side support. The open front sled layout keeps the area beneath the seat clear and offers unobstructed side access for users entering or leaving the seat. Its construction combines tan leather or leather-look upholstery with padded foam and a chrome-plated steel cantilever frame made from 25 mm diameter steel tube. The seat uses a 90 mm molded polyurethane foam cushion specified at 38 kg/m3, while the backrest uses 70 mm shaped polyurethane padding specified at 32 kg/m3 and includes a 240 mm lumbar support zone. Beneath the upholstery is a 12 mm molded plywood or engineered composite seat shell. The back panel has a smooth outer face with a stitched perimeter, and the armrests include upholstered upper pads for comfort. A mirror-polished chrome finish with a corrosion-protected undercoat gives the frame a bright professional appearance; exact hide or PU grade and plating thickness should be confirmed with supplier documentation. The chair uses fixed cantilever movement, producing controlled vertical flex through the sled frame without tilt, swivel, or height adjustment. The fixed 450 mm seat height is intended for visitors at standard meeting and executive desks. The backrest holds a fixed upright angle of 100 degrees and extends to upper-back height. Four injection-molded polymer or nylon glides reduce noise and floor marking, making the chair suitable for tile, wood, laminate, and low-pivot carpet environments while preventing caster-style movement during meetings. The stated recommended user weight capacity is 140 kg, with separate static load targets for the backrest and arms. The chair is non-stacking unless the supplier specifically documents a stacking version. This model suits executive office visitor areas, boardrooms and meeting rooms, formal reception lounges, and private manager offices. It can be placed across from a 2.4 m executive desk or arranged around standard 760 mm conference tables. Its tan upholstery and chrome frame deliver a polished look for client-facing discussions and short to medium-duration meetings. Procurement teams should confirm the precise upholstery type, material grade, and chrome test report before purchase. The product is unbranded, model EXEC-VST-CAM-01, and supplied as one set in two cartons, with a reference assembly time of 40 minutes per set. The package has a reference gross weight of 23 kg and carton volume of 0.26 cubic meters, supporting logistics planning for multi-chair projects.
