PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	600 × 640 × 980 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight	14 kg
Recommended user weight capacity	160 kg
Maximum occupancy	1 person
Seat foam density	45 kg/m3
Back foam density	35 kg/m3
Foam indentation recovery	35 percent
Upholstery abrasion acceptance value	50,000 Martindale cycles
Seam stitch pitch	8 stitches per 50 mm
Cantilever flex fatigue acceptance	100,000 loading cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Tan leather-look upholstered surface with stitched padded front edge
Back upholstery	Tan continuous padded back cover with contoured side wraps and horizontal lumbar seam
Seat cushion	Padded foam core 70 mm thick over a supporting seat board
Back padding	40 mm thick foam layer on a formed back panel
Arm pads	Tan upholstered fixed pads following the curved chrome support tube
Cantilever frame	Polished chrome-plated welded steel tube, 25 mm diameter and 1.5 mm wall thickness
Internal seat support	12 mm thick molded board or steel seat pan secured to the tubular frame
Back inner support	10 mm thick formed board or steel reinforcing panel inside the upholstered back
Floor glides	4 black non-marking polymer pads bonded to the runner ends
Frame finish	Mirror polished chrome surface over welded steel tube
Joint construction	Continuous bent side tubes linked by front and rear cross-welded rails
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Cantilever movement	Fixed sled base provides controlled vertical flex without casters, swivel, or height adjustment
Arm support	Fixed padded arms provide forearm support at 690 mm floor height and cannot be raised or rotated
Back support	Medium-height fixed back provides shoulder and lumbar support at a 100-degree reclined angle
Floor protection	Four replaceable polymer glides distribute load and reduce scratching on hard floors
Stacking limitation	Not specified as a stacking chair due to fully enclosed arm-and-sled geometry
Entry and exit	Open front and armless front edge allow side and frontal access at a 460 mm seat height
Rocking resistance	Four-point runner footprint and 640 mm depth resist forward and rearward tipping
Maintenance access	Upholstery is fixed to the frame; glides can be replaced and covers require on-chair cleaning
Adjustment count	0 user adjustments, with fixed seat height, back angle, arm height, and base position
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Carton dimensions	780 x 660 x 560 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Conference room	Place around boardroom or meeting tables where a fixed 460 mm seat height supports standard desk surfaces
Executive visitor seating	Use in front of desks for guests with padded arms, tan upholstery, and a polished chrome appearance
Reception area	Pair two or more chairs with low tables in waiting zones requiring quiet, non-castered seating
Training or interview room	Deploy in rooms needing durable side-access seating without adjustment complexity
Open-plan touch-down spaces	Use for short meetings beside workbenches or collaboration surfaces
Hotel meeting suites	Specify with hard-floor glides and abrasion-tested upholstery for frequent guest turnover
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16139:2013+AC:2013 strength, durability, safety for non-domestic seating	Applies to conference and visitor chair strength and stability requirements
EN 1022:2018 seating stability determination	Recommended test basis for forward, rearward, and side overturning resistance
EN 1728:2012 seating test methods for strength and durability	Use as the mechanical test-method standard alongside EN 16139 acceptance criteria
EN 12520:2015 contact surface upholstery hardware assessment	Useful for upholstered surfaces where hardware, seams, and accessible edges are inspected

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1 static load test acceptance target	Use 1,020 kg back test and 1,134 kg seat static load as procurement validation values

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2024 wooden furniture general technical requirements	Use for dimensional, workmanship, and inspection requirements if hidden boards or wood-based panels are used
GB/T 3325-2017 metal furniture general technical requirements	Applicable to inspection of the welded and chrome-plated steel cantilever frame
GB 18584-2001 indoor wooden furniture materials limit	Recommended acceptance basis for formaldehyde emission from any hidden wood-based panels
GB/T 10357.3-2013 furniture mechanical tests for seating strength and durability	Use for static, impact, and fatigue validation before bulk purchase

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2024 wooden furniture general technical requirements：Use for dimensional, workmanship, and inspection requirements if hidden boards or wood-based panels are used；
2. GB/T 3325-2017 metal furniture general technical requirements：Applicable to inspection of the welded and chrome-plated steel cantilever frame；
3. GB 18584-2001 indoor wooden furniture materials limit：Recommended acceptance basis for formaldehyde emission from any hidden wood-based panels；
4. GB/T 10357.3-2013 furniture mechanical tests for seating strength and durability：Use for static, impact, and fatigue validation before bulk purchase；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CNF-CL-600-TAN

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CNF-CL-600-TAN

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CNF-CL-600-TAN打开导出工具

页面快速操作

发布采购询价

产品描述

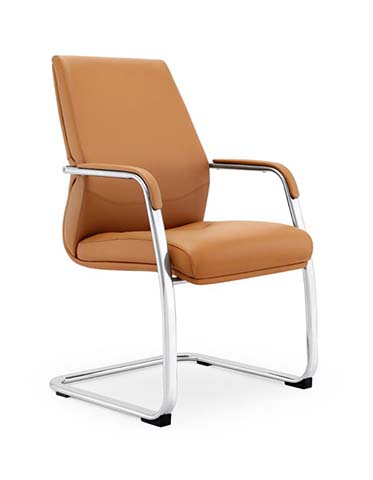

The Tan Upholstered Cantilever Conference Chair with Chrome Sled Frame, model CNF-CL-600-TAN, is an unbranded seating solution designed for meeting, reception, and visitor settings. Its coordinated tan upholstery and polished chrome frame create a clean executive appearance, while the fixed cantilever structure gives the chair a composed, non-mechanical profile. Visually, the chair features a continuous padded back cover with contoured side wraps and a horizontal lumbar seam. The seat uses tan leather-look upholstery with a stitched padded front edge, and the fixed arm pads follow the curve of the chrome support tubes. The sled base is formed from polished chrome-plated welded steel tube, producing a streamlined open frame beneath the upholstered body. Black polymer glides at the runner ends provide a discreet contrast and protect hard flooring. Construction combines padded foam support with a rigid tubular frame. The seat uses a padded foam core over a supporting seat board, with a finished cushion thickness suited to extended seating. The back includes a foam layer on a formed panel, with a defined lumbar support zone. Internal seat and back support are provided by molded board or steel reinforcing components secured to the frame. The armrests are fixed and upholstered, and the chair has a clear arm-to-arm width that accommodates a single occupant. The leather-look surface has an abrasion acceptance value of 50,000 Martindale cycles, supporting selection for regularly used commercial interiors. Functionality is intentionally straightforward. The fixed sled base delivers controlled vertical flex without casters, swivel movement, or height adjustment. The medium-height back is set at a reclined angle to provide shoulder and lumbar support, while padded fixed arms offer forearm support. An open front and armless front edge allow both frontal and side access at the fixed seat height. Four glides distribute load, reduce scratching, and can be replaced when worn. The four-point runner footprint also helps resist forward and rearward tipping. The chair is not specified as stacking due to its enclosed arm-and-sled geometry. This model is well suited to boardrooms, meeting rooms, executive guest positions, reception lounges, interview rooms, training spaces, open-plan touchdown areas, and hotel meeting suites. It pairs naturally with standard-height conference tables, workbenches, collaboration surfaces, and low reception tables. Procurement teams should note the fixed seat height, non-castered base, and integrated armrests when planning layouts. Delivery is packed as one set across two cartons, with reference assembly time of 40 minutes per set and a packaged gross weight of 23 kilograms. The recommended user weight capacity is 160 kilograms, and maximum occupancy is one person.

Tan Upholstered Cantilever Conference Chair with Chrome Sled Frame Specifications
