PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 380 × 2200 mm
Single bay width	400 mm
Lower solid cabinet height	700 mm
Upper display section height	1350 mm
Kickbase plinth height	80 mm
Crown molding height	70 mm
Adjustable shelf thickness	35 mm
Internal shelf clearance between tiers	330 mm
Door panel thickness	20 mm
Back panel thickness	9 mm
Carcass side panel thickness	25 mm
Edge band thickness	2 mm
Carcass Panel Thickness	25 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Unit net weight (4-door)	145 kg
Individual shelf static load capacity	35 kg
Lower cabinet drawer/shelf static load	40 kg
Recommended maximum unit load	320 kg
Recommended user capacity	1 person
Door hinge open angle	110 degrees
Hinge cycle rating	80000 open/close cycles
Finish abrasion resistance	2000 cycles
Standard warranty period	3 years
Shelf Distributed Load	30 kg/shelf

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass frame	Solid wood or E1 grade MDF with wood veneer
Upper door panels	Clear tempered glass set in arched wood frames
Lower door panels	Arched raised solid wood or veneered MDF panels
Internal shelves	35mm thick solid wood or veneered particleboard
Back panel	9mm thick hardboard or plywood
Door hinges	Cold-rolled steel concealed soft-close hinges
Finish coating	Multi-layer polyurethane reddish-brown wood finish
Kickbase and crown trim	Solid wood molding
Edge treatment	Matching wood veneer or PVC edge banding
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Upper glass door storage	Hinged glass doors enclose 3 adjustable shelves per display bay
Lower cabinet storage	Solid hinged doors enclose 1 fixed shelf per lower bay
Shelf adjustability	3 adjustable shelf positions per upper bay with metal shelf pins
Modular configuration support	Units connect side-by-side to form 3-door or 4-door wall systems
Wall anchoring	2 anti-tip safety connectors included for wall mounting
Door operation	Recessed or traditional pull handles open doors to 110 degrees for full access
Cable pass-through	Optional rear cutout supports AV or device wiring in display bays
Leveling adjustment	Adjustable feet under kickbase compensate for uneven floor surfaces
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive private office	Fits behind CEO/manager desks for book, file and award display
Conference room back wall	Creates a formal storage and display backdrop for meeting spaces
Study or home library	Provides combined display and enclosed storage for personal book collections
Law firm or government office	Stores legal documents and reference materials with professional appearance
Hotel executive lounge	Displays decor and reading materials in premium public business areas
Recommended companion pieces	Pair with matching traditional executive desk and leather office chairs

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Domestic and kitchen storage units and worktops - safety and performance requirements
EN 12521:2015	Furniture - strength, durability and safety requirements for non-domestic storage furniture
EN 71-3:2019	Safety of toys - migration of certain elements, applicable if finish has heavy metal limits

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Storage Furniture - safety and performance standard for office storage units
ANSI/BIFMA e3-2019	Furniture sustainability standard, applicable for material emission and lifecycle requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural and finish qualityAcceptance
GB/T 4897.3-2015	Particleboard for furniture use, applicable for panel structural performance requirements
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture
GB/T 10357.5-2011	Furniture mechanical performance test for storage units, applicable for shelf and cabinet load testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish qualityAcceptance;
2. GB/T 4897.3-2015: Particleboard for furniture use, applicable for panel structural performance requirements;
3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture;
4. GB/T 10357.5-2011: Furniture mechanical performance test for storage units, applicable for shelf and cabinet load testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OBC-ARB-4D-RB

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OBC-ARB-4D-RB

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OBC-ARB-4D-RBOpen Export Tool

Quick Actions

Post an RFQ

Product Description

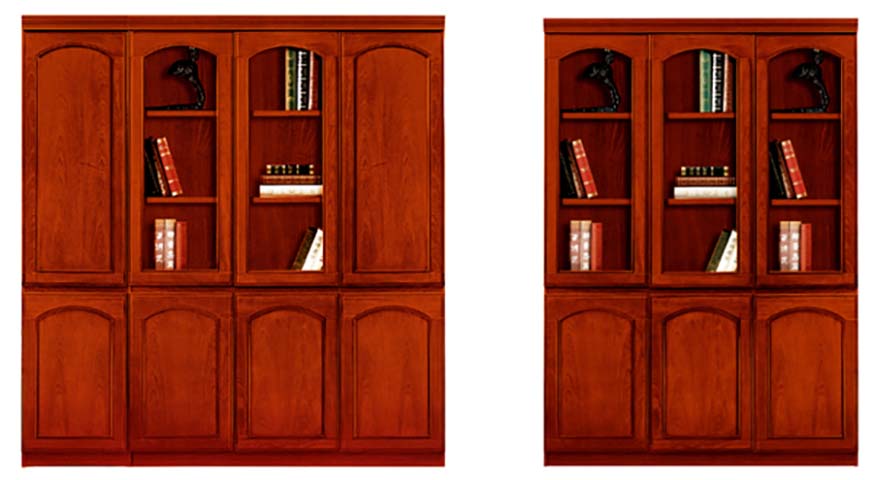

The Traditional Reddish Brown Arched Panel Wooden Office Bookcase is a floor-standing classic storage and display unit balancing refined traditional aesthetics with functional, modular design. Its 4-door configuration stands at 1600 mm wide, 380 mm deep, and 2200 mm tall, defined by a solid wood 70 mm crown molding at the top and an 80 mm kickbase plinth at the bottom that elevates the unit off the floor. Arched wood frames set the visual tone across both sections: upper bays feature clear tempered glass panels to showcase contents, while lower bays use matching arched raised panels for concealed storage, all finished in a rich multi-layer polyurethane reddish-brown coating that unifies wood, veneer, and edge banding details for a seamless, polished look. Single bays measure 400 mm wide, allowing clean side-by-side connection to build custom 3-door or 4-door wall systems tailored to specific wall lengths. Constructed for long-term commercial and high-end residential use, the unit’s carcass is built from solid wood or E1 grade MDF with wood veneer, paired with cold-rolled steel concealed soft-close hinges rated for 80000 open/close cycles that open doors to 110 degrees for unobstructed interior access. Internal 35 mm thick adjustable shelves in the upper section are made from solid wood or veneered particleboard, supporting 35 kg per shelf with three position options secured by metal pins to accommodate items of varying heights; each upper bay offers 330 mm of tier clearance for standard books and display pieces. The 700 mm tall lower cabinet includes one fixed shelf per bay rated for 40 kg of static load, with a total maximum unit load of 320 kg. Two anti-tip safety connectors are included for secure wall anchoring, and an optional rear cable cutout supports wiring for AV or electronic devices placed on display shelves. This bookcase suits formal professional and premium public spaces, including executive private offices where it sits behind leadership desks to store files, books, and awards; conference room back walls to create a polished formal backdrop; law firm and government offices for organized legal document and reference material storage; hotel executive lounges to display decor and reading materials; and residential studies or home libraries for personal book collections. It pairs seamlessly with matching traditional executive desks and leather office chairs for a coordinated look. For procurement, note the unbranded unit (model OBC-ARB-4D-RB) ships in cartons split for the carcass structure, requires 40 minutes of assembly per set, and is designed for use by a single person during regular operation. When planning layouts, account for the full unit height and depth to ensure adequate clearance for door operation and wall anchoring installation, and select modular bay quantities to match available wall space without overcrowding walkways.

Traditional Reddish Brown Arched Panel Wooden Office Bookcase with Glass Upper Doors and Solid Lower Storage Specifications
