Automatic mm / inch conversion · Core engineering specifications

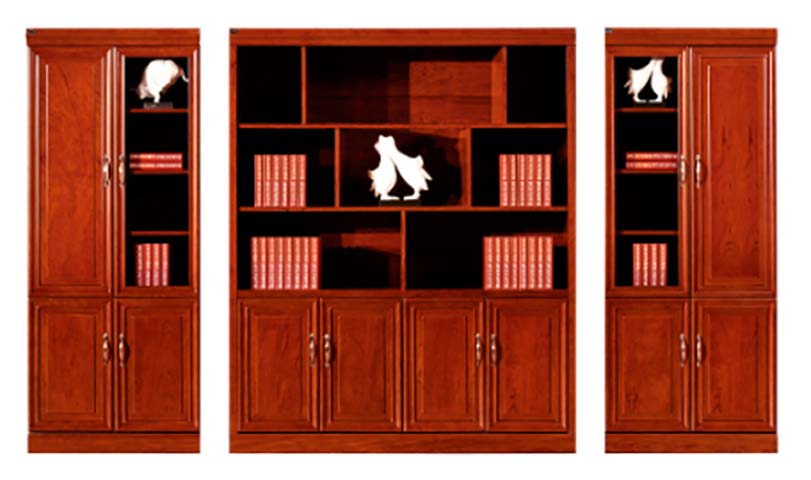

| Overall set dimensions | 3600 x 400 x 2100 mm | |
|---|---|---|
| Central unit dimensions | 1600 x 400 x 2100 mm | |
| Single side unit dimensions | 1000 x 400 x 2100 mm | |
| Lower cabinet door height | 900 mm | |
| Upper shelving section height | 1100 mm | |
| Shelf panel thickness | 25 mm | |
| Carcass side panel thickness | 20 mm | |
| Back panel thickness | 9 mm | |
| Door edge banding thickness | 2 mm | |
| Standard shelf vertical clearance | 320 mm | |
| Plinth base height | 100 mm | |
| Crown molding projection | 20 mm | |
| Glass door panel thickness | 5 mm | |
| Door handle length | 120 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm |
Net weight / load capacity / users / durability
| Per shelf static load capacity | 30 kg | |
|---|---|---|
| Lower cabinet drawer/shelf static load | 40 kg | |
| Total set static weight capacity | 800 kg | |
| Hinge open/close cycle rating | 80000 cycles | |
| Door hinge maximum opening angle | 110 degrees | |
| Recommended maximum wall clearance for installation | 50 mm | |
| Surface abrasion resistance rating | 2000 cycles | |
| Structural warranty period | 3 years | |
| Available finish color count | 3 | |
| Shelf Distributed Load | 30 kg/shelf |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main carcass construction | Kiln-dried solid hardwood frame with mortise-and-tenon joinery | |
|---|---|---|
| Raised panel cabinet doors | Solid wood framed panels with matching wood veneer center panels | |
| Glass door panels | Clear tempered glass set in solid wood door frames | |
| Shelving panels | 25mm thick solid wood, fixed position in upper sections | |
| Hardware (handles, hinges) | Zinc alloy with antique brass brushed finish | |
| Surface finish | Multi-layer water-based wood lacquer, semi-gloss red-brown tone | |
| Back panel | 9mm thick solid wood plywood, tongue-and-groove fitted to carcass | |
| Plinth and crown trim | Matching solid wood, glued and nailed to carcass for structural rigidity | |
| Anti-tip hardware | 2 steel wall anchor brackets per cabinet unit | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Lower cabinet storage access | Double solid wood doors open to enclosed fixed shelves for concealed file/office supply storage | |
|---|---|---|
| Central open shelving | Asymmetric divided cubbies provide open display and frequently used book storage without door obstruction | |
| Side unit upper storage | Combination solid wood door concealed compartment and glass door display shelving for books and decor | |
| Door locking function | All lower cabinet doors include keyed locks for secure storage of confidential office documents | |
| Fixed shelf configuration | All shelves are factory-fixed for maximum structural rigidity under heavy book loads, no adjustable shelf pins visible | |
| Modular installation flexibility | Three separate units can be installed flush against a wall as a continuous set or spaced individually per office layout | |
| Leveling adjustment | Integrated adjustable feet under plinth base allow 15mm height adjustment for uneven office floors | |
| Cable management provision | Optional rear cable pass-through cutouts available for adding integrated LED display lighting | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive/manager private office installation | Formal matching storage set for background wall behind executive desk, holds books, files and decorative items | |
|---|---|---|
| Corporate boardroom or meeting room storage | Wall-mounted storage set for meeting materials, reference books and corporate display pieces | |
| High-end home study or private library use | Traditional wood finish suitable for residential study spaces, provides large capacity book storage | |
| Government or institutional office installation | Formal, durable wood storage meets procurement requirements for official office environments | |
| Recommended matching furniture | Pair with matching red-brown solid wood executive desk, leather office chair and side credenza for coordinated suite | |
| Installation surface requirement | Level hard flooring (wood, tile, commercial carpet) with minimum 3700mm of continuous wall space |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office furniture - Storage furniture - Part 2: Safety requirements, applicable for structural stability and safety performance | |
|---|---|---|
| EN 12720:2009+A1:2013 | Furniture - Assessment of surface resistance to cold liquids, applicable for lacquer finish durability testing | |
| EN 12521:2015 | Furniture - Strength, durability and safety - Requirements for domestic storage furniture, applicable for structural load testing |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage Furniture - Safety, durability, and structural performance standard for office storage units | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard, applicable for material emissions and environmental performance verification |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural stability and finish quality acceptance | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture, applicable for formaldehyde and VOC emission testing | |
| GB/T 4897.3-2005 | Particleboard for furniture use, applicable if wood-based panel components are used in construction |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural stability and finish quality acceptance; 2. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture, applicable for formaldehyde and VOC emission testing; 3. GB/T 4897.3-2005: Particleboard for furniture use, applicable if wood-based panel components are used in construction; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
