Automatic mm / inch conversion · Core engineering specifications

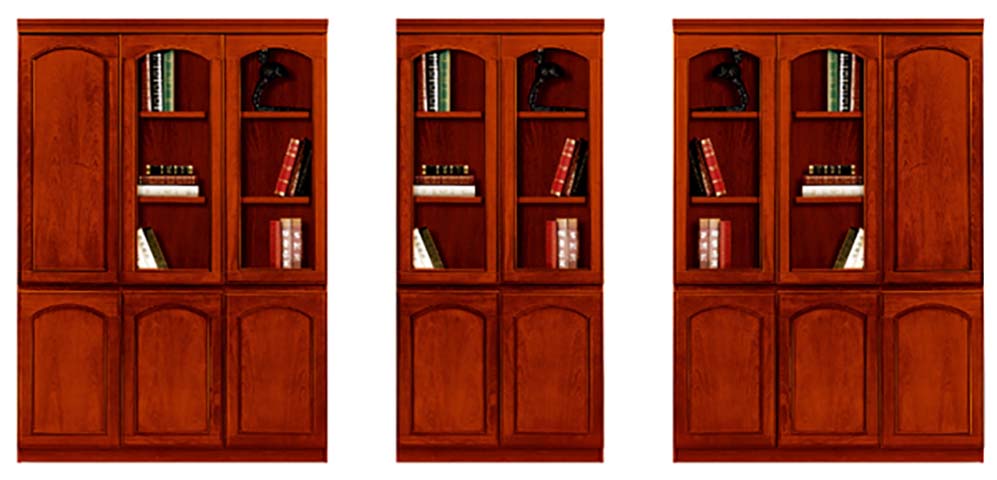

| Overall unit dimensions (3-door wide module) | 1215 x 530 x 2310 mm | |
|---|---|---|
| Overall unit dimensions (2-door narrow module) | 810 x 530 x 2310 mm | |
| Internal shelf width per bay | 370 mm | |
| Internal shelf depth | 380 mm | |
| Vertical clearance between upper glass section shelves | 340 mm | |
| Lower cabinet internal storage height | 720 mm | |
| Carcass side panel thickness | 22 mm | |
| Door panel thickness | 18 mm | |
| Back panel thickness | 9 mm | |
| Crown molding overhang | 30 mm | |
| Base plinth height | 80 mm | |
| Tempered glass door thickness | 5 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Per shelf static load capacity | 25 kg | |
|---|---|---|
| Tempered glass door impact strength | 5x ordinary float glass | |
| Hinge cycle rating | 80000 open/close cycles | |
| Door hinge maximum opening angle | 110 degrees | |
| Net weight (3-door unit) | 95 kg | |
| Warranty period | 5 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main carcass construction | 22 mm E0 grade wood-based panel with cherry wood veneer | |
|---|---|---|
| Upper display section doors | Framed arched panel with 5mm clear tempered glass insert | |
| Lower storage section doors | Framed arched raised solid wood/veneer panel, no glass insert | |
| Internal shelves | 18mm thick veneered wood-based panel, edge-banded with matching wood trim | |
| Top crown molding | Solid wood matching cherry finish, decorative raised profile | |
| Bottom base plinth | Solid wood matching cherry finish, decorative recessed profile | |
| Back panel | 9mm thick MDF/hardboard dust back, finished to match interior | |
| Door hinges | Cold-rolled steel nickel-plated concealed hinges | |
| Anti-tip hardware | Steel wall anchor bracket with mounting screws | |
| Edge banding | 1mm thick matching PVC/wood veneer edge band, PUR applied | |
| Surface finish | Satin polyurethane wood lacquer, scratch-resistant top coat | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features
| Modular configuration | Interconnectable 2-door and 3-door units can be ganged side-by-side for continuous built-in look | |
|---|---|---|
| Upper glass door access | Hinged arched framed doors open to access 3 adjustable display shelves per bay | |
| Lower solid door access | Hinged arched raised-panel doors open to concealed single-level storage compartment per bay | |
| Shelf adjustability | 3 adjustable shelf positions per upper glass bay, 32mm hole spacing for height customization | |
| Anti-tip safety | Included wall anchor secures top of unit to wall framing to prevent forward tipping | |
| Door alignment | Adjustable hinge screws allow 3-way door alignment for consistent gap spacing | |
| Cable management | Optional rear knockout port allows power cord pass-through for accent lighting in display section | |
| Leveling adjustment | Optional adjustable glide feet under base plinth compensate for uneven floor surfaces | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office application | Placed behind executive desks for book, binder and decorative object storage in private offices | |
|---|---|---|
| Home study application | Installed along study walls for home library book storage and display of collectibles | |
| Formal living room application | Used as a built-in look display cabinet for books, framed photos and decorative items | |
| Library/reading room application | Ganged modular units create continuous storage wall for high-volume book collections | |
| Law/financial firm application | Installed in partner offices and meeting rooms for professional document and law book storage | |
| Recommended placement clearance | Leave 100mm clearance behind unit for air circulation and wall anchor installation |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Applicable standard for safety and performance of domestic/office storage cabinet furniture | |
|---|---|---|
| EN 12150-1:2015 | Applicable standard for thermally toughened soda lime silicate safety glass for doors | |
| EN 312:2010 | Applicable standard for particleboard performance requirements for furniture use |
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable standard for wooden furniture general technical requirements for cabinet products | |
|---|---|---|
| GB 18580-2017 | Applicable standard for formaldehyde emission limits for wood-based panel materials | |
| GB/T 4897.3-2003 | Applicable standard for particleboard used in furniture structural applications |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable standard for wooden furniture general technical requirements for cabinet products; 2. GB 18580-2017: Applicable standard for formaldehyde emission limits for wood-based panel materials; 3. GB/T 4897.3-2003: Applicable standard for particleboard used in furniture structural applications; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
